9
SDTV 480p 720x480 60 31.461 27
SDTV 480i 720x480 60 15.734 13.5
SDTV 576p 720x576 50 31.25 27
SDTV 576i 720x576 50 15.62 13.5
HDTV 720p 1280x720 50 37.5 74.25
HDTV 720p 1280x720 60 45 74.25
HDTV 1080i 1920x1080 50 28.12 74.25
HDTV 1080i 1920x1080 60 33.7 74.25
Power Source AC100 – 240 V, 60/50 Hz
Sound Output 3W X2, 4 Ohm.

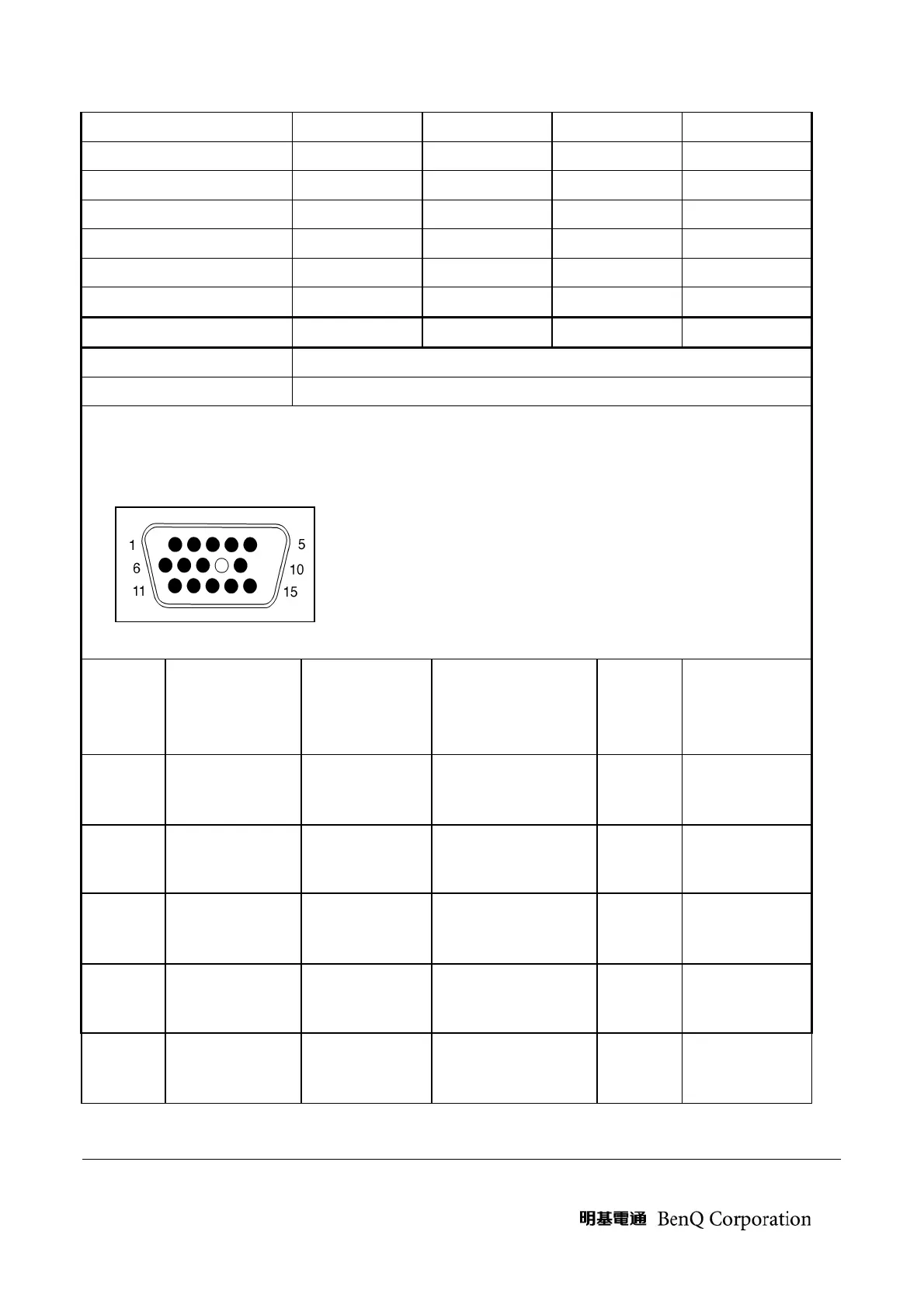

Signal Connector Pin Assignment
Pin Assignment Pin Assignment Pin Assignment
1. Red 6. Red Ground 11. Ground
2. Green 7. Green Ground 12. SDA
3. Blue 8. Blue Ground 13. Horizontal Sync.
4. Ground 9. Not Connected 14. Vertical Sync.
5. Self Test 10. Sync. Ground 15. SCL
