BenQ XL2420T User Manual

20 How to assemble your monitor hardware
Using the monitor wall mounting kit
The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the
installation of a wall mount bracket. Before starting to install a monitor wall mounting kit,
please read the precautions carefully.
Precautions
• Install your monitor and monitor mounting kit on a wall with flat surface.
• Ensure that the wall material is stable to support the weight of the monitor.
• Turn off the monitor and the power before disconnecting the cables from the LCD monitor.
The maximum dimensions of the VESA mounting bracket compatible with your monitor are 125mm x 125mm.

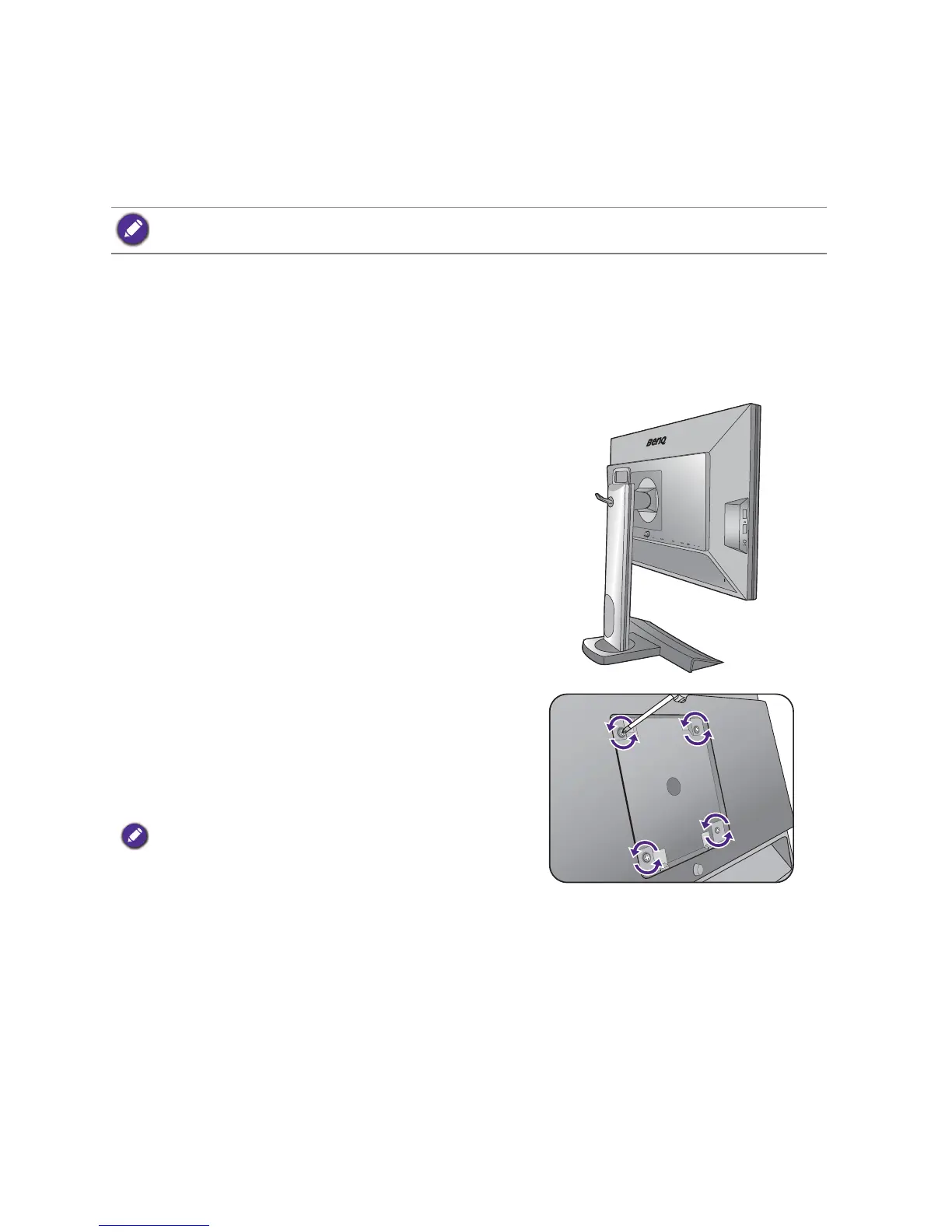

1. Remove the monitor stand.
Detach the monitor stand as instructed in step 1~2
in How to detach the stand and the base on page
15.
2. Remove the back cover.
Use a cross-pointed screwdriver to release the
screws that fixing the back cover to the monitor.
The use of a magnetic-head screwdriver is
recommended to avoid of losing the screws.
In case you intend to use your monitor on the stand in the
future, please keep the monitor base, monitor stand, and
screws somewhere safe for future use.
3. Follow the instruction manuals of the wall
mount bracket you purchased to complete
the installation.

BenQ XL2420T Specifications

General

3D	Yes
Panel type	TN+Film
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Response time	2 ms
Display surface	-
Display diagonal	24 \
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	12000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Bandwidth	0.33 GHz
USB hub version	2.0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	17
Panel mounting interface	100 x 100 mm
Power consumption (standby)	- W
Power consumption (typical)	24 W
Power consumption (PowerSave)	0.5 W
Windows operating systems supported	Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Product color	Black
Market positioning	Gaming

Weight and Dimensions

Depth (without stand)	149.9 mm
Width (without stand)	571.4 mm
Height (without stand)	516.9 mm
Weight (without stand)	6100 g
