How to assemble your monitor hardware
If the computer is turned on you must turn it off before continuing.
Do not plug-in or turn-on the power to the monitor until instructed to do so.
1. Attach the monitor base.
Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a
mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or scraping the monitor
around on your desk will scratch or damage the monitor surround and controls.
Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item
like the monitor packaging bag on the desk for padding.
Gently lay the screen face down on a flat clean padded surface.

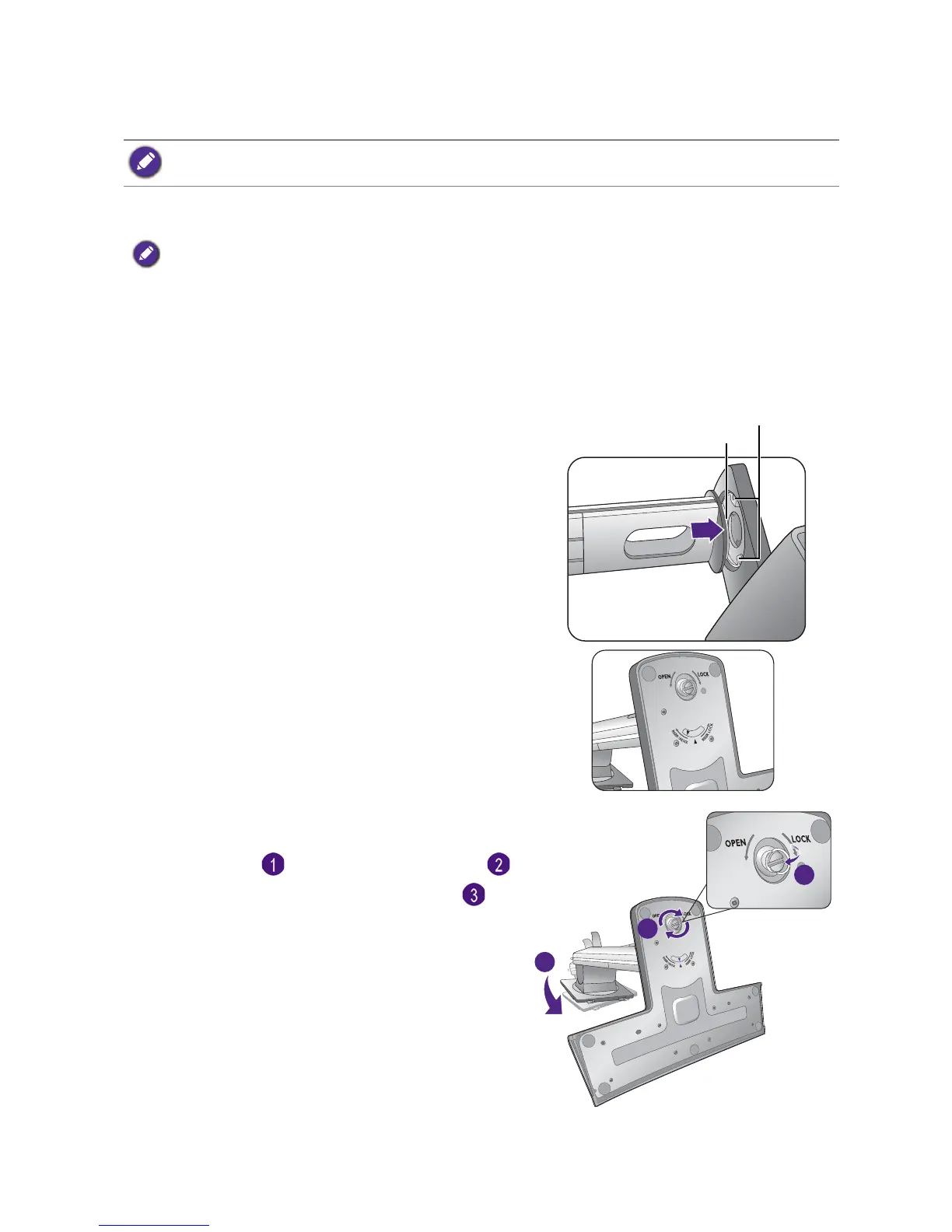

Orient and align the stand base socket with the end
of the stand arm. Make sure that the locking tabs at
the end of the stand bypass the retaining plates on
the stand, then push the stand and the base
together. If the base is properly attached, the arrow
at the end of the stand should point to RISER
UNLOCK
.
Turn the stand counterclockwise to align the arrow
at the end of the stand with the one on the
monitor base ( ). Raise the thumbscrew lid ( )
and tighten the thumbscrew as illustrated ( ).
Then push the lid back.
Gently attempt to pull them back apart to check
that they have properly engaged.
