BENSON VRBD 250 - Page 37

Heater A B C D E F G B+C
250-490
180 420 340 225 200 130 130 750

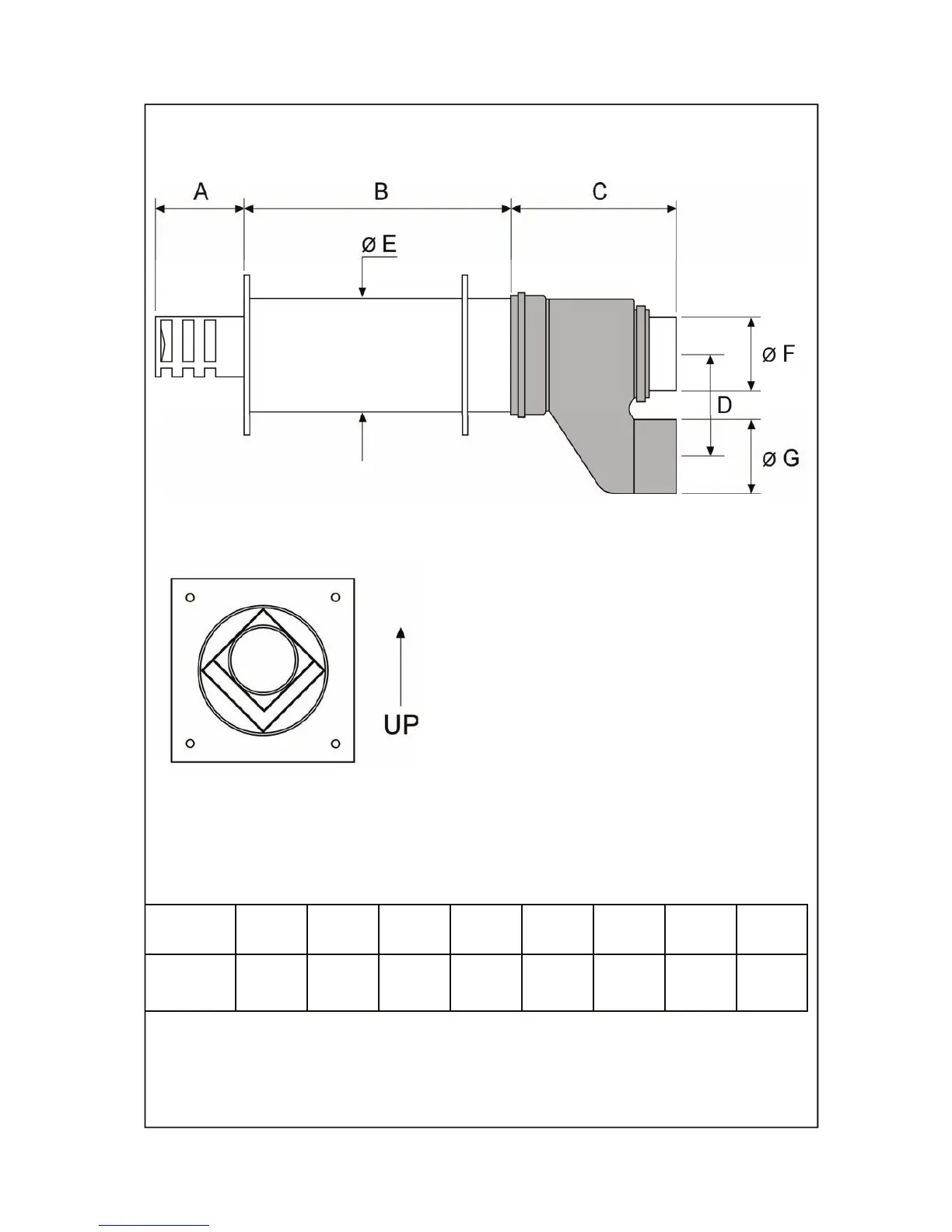

Horizontal Co/Axial Terminal Dimensions
Ensure Terminal is located on the wall
in this configuration
TOP
BOTTOM
Dimensions in mm’s
AIR
FLUE
