Bentel Security ALISON/S - Technical Specifications and Connections; Wiring Diagram and BPI Setup; Terminal Board Connections; Technical Specifications

ISTISBL3ALS2-S 0.3 210206 P7.0
BENTEL SECURITY s.r.l. - Via Gabbiano, 22 - Z.I. Santa Scolastica - 64013 CORROPOLI - TE - ITALY
Tel.: +39 0861 839060 - Fax: +39 0861 839065 - E-mail: info@bentelsecurity.com - http://www.bentelsecurity.com
CARATTERISTICHE
TECNICHE
TECHNICAL
SPECIFICATIONS
SPECIFICATION
TECHNIQUES
CARACTERÍSTICAS
TÉCNICAS
Tensione Voltage Tension Tension
10.5 V ÷ 14V
±5 %
Te m p e r a t u r a
di funzionamento
Operating Temperature
Température de
fonctionnement
Te m p e r a t u r a
funcionamiento
+5 ÷ +40° C
Livello di Prestazione Performance Level
Niveau de
Performance
Nivel de securidad
II
Corrente assorbita
a riposo
Stand By Current Courant au repos Corriente en reposo
40 mA
Corrente Massima
(con Display acceso)
Maximum Current draw
(with Display on)
Courant Max consommé
(avec Ecran on)
Corriente máxima
(con Display acceso)
90 mA
MORSETTIERA TERMINAL BOARD BORNIER DE CONNEXION TERMINAL DE LA PLACA
+
C
R

Morsetti per il
collegamento del BUS
Dati con la Centrale.
Use these Terminals for
the connections between
the BPI BUS and Control
panel
Ces bornes permettent la
connexion du BUS BPI du
clavier à la centrale
Use estos terminales para
conectar el Bus BPI a la
Central
L1
Linea di allarme
programmabile
Programmable Alarm line
Entrée d'Alarme
Programmable
Línea de alarma
programable
+F
Positivo di alimentazione Positive power supply Positif d'alimentation Positivo de alimentacion

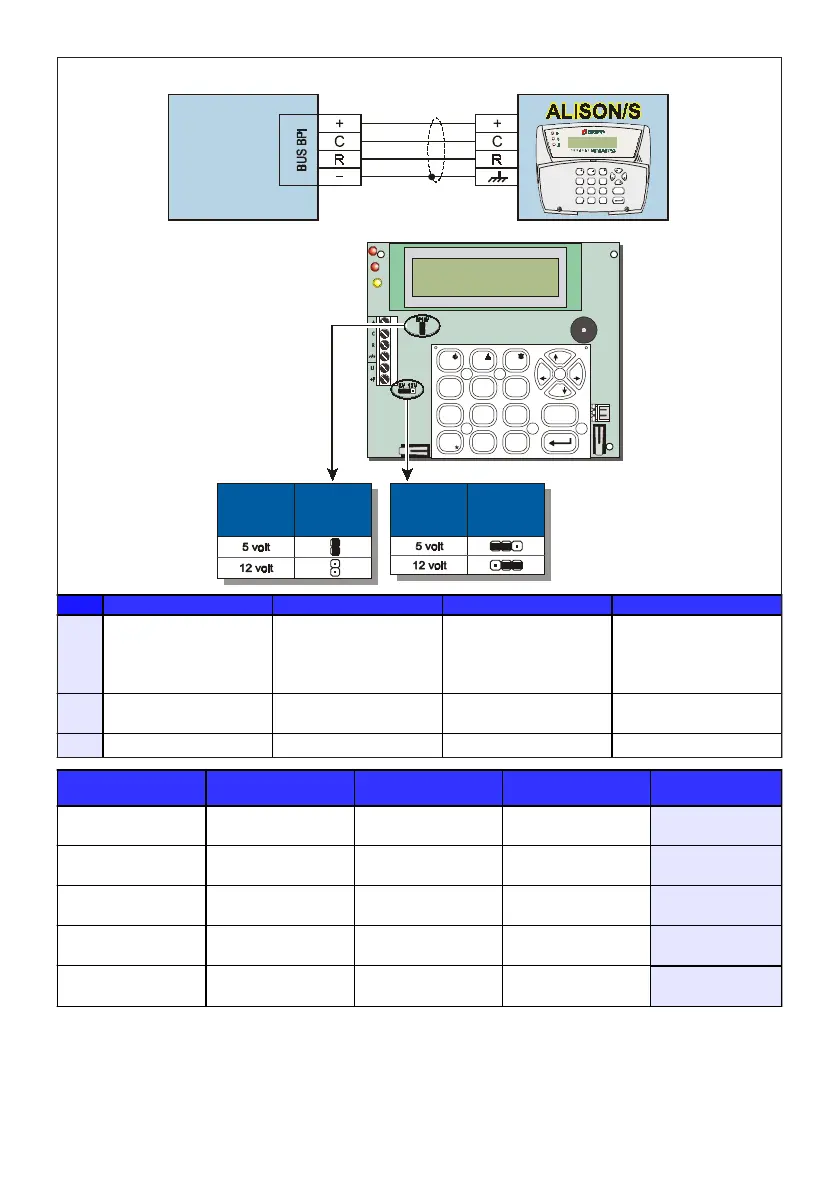

Fig. 2 - Setup e Collegamenti - Setup and Connections - Setup et Connexion - Ajuste y Conexionado
2
abc
A B
C
D
ESC
13
def
5
jkl
4
ghi
6
mno
8
tuv
7
pq rs
9
wxyz
0
OFF
#
ON
LIVELLO BPI
BPI LEVEL
NIVEAU BPI
NIVEL BPI
Ponticello 3
Jumper 3
Pontet 3
Puente 3
LIVELLO BPI
BPI LEVEL
NIVEAU BPI
NIVEL BPI
Ponticello 9
Jumper 9
Pontet 9
Puente 9





