Remove any burr or mandrel that may be in the Handpiece.

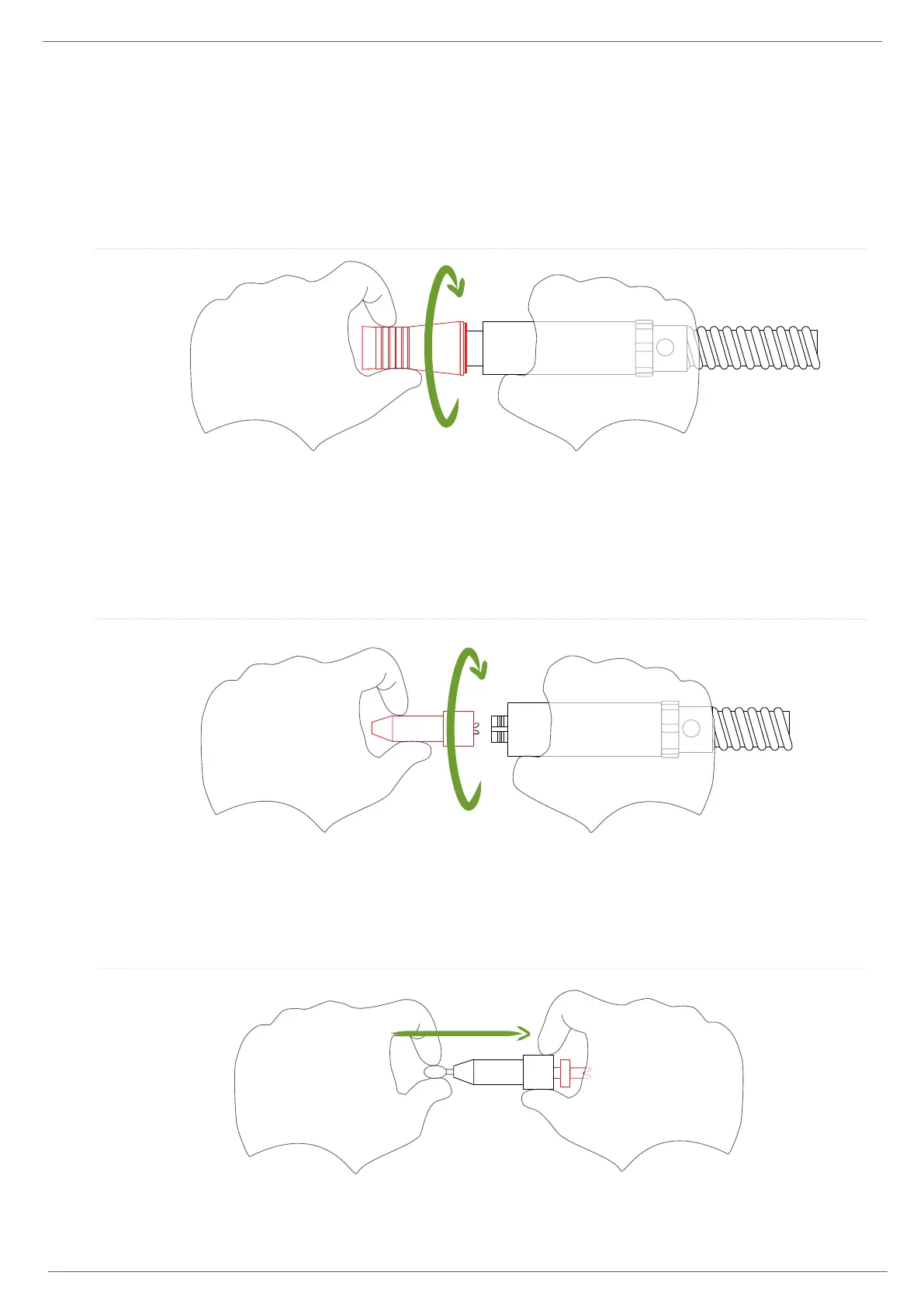

Hold the Main Alloy Body of the Handpiece in one hand, then
unscrew and remove the Alloy Nose Cone.
Wipe away any nail dust from the nose cone with a damp
(not soaking wet) paper towel. An alcohol/chlorhexidine
moistened towel is recommended.
Whilst still holding the Main Alloy Body of the Handpiece,
unscrew the Burr Clutch Housing.
Put the Handpiece down and pick-up the Burr
Clutch Housing.
Using the shaft of a burr or mandrel, push into the Burr Clutch
Housing and push the Burr Clutch Assembly out of the housing.
Clean the empty housing in the same way
as the nose cone.
Step 1
Step 2
Step 3
A unique feature of the Berchtold handpiece is it’s ability to be completely dismantled, cleaned, and re-built.
To ensure optimal performance of your Berchtold handpieces we suggest that this be performed every 2-3 weeks.
Burr Clutch Service
