INSTALLATION INSTRUCTIONS
Mounting the fascia doors
Ensure that there is a gap of 1/8’’ to 5/32’’ (3 to 4mm) between the non-hinged side and the cabinet wall.

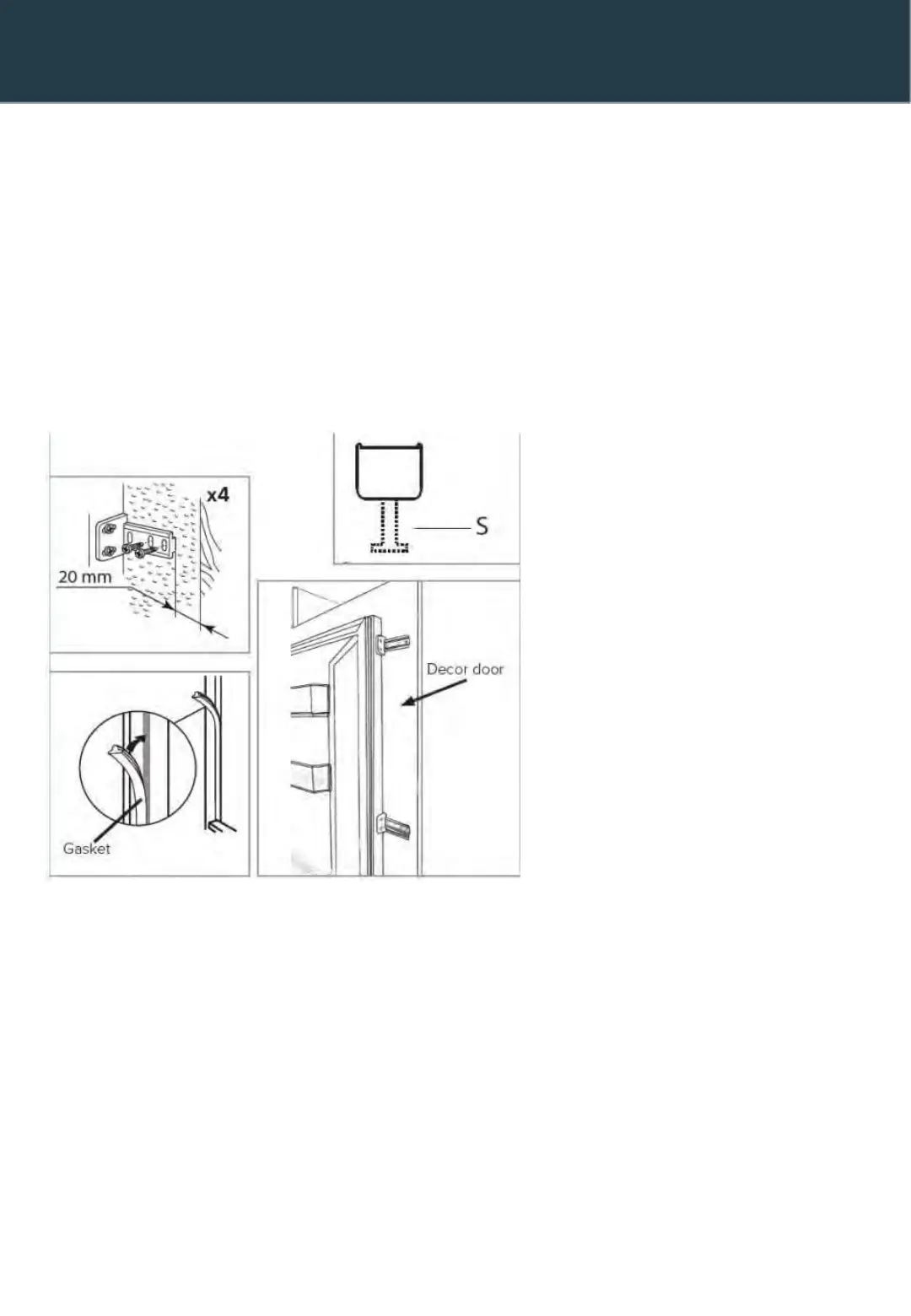

Locate the slider in the bracket and fix the slider to the fascia door 51/64’’ to 7/8’’ (20 to 22mm) from
the edge of the fascia as shown in the following image, ensuring that the slider is positioned centrally
and horizontally within the bracket. Tighten securely by hand.
Fill the gap on the non-hinged side with the gasket/seal strip provided.
The finished look for the door sliders should be similar to those shown in the following image, which
shows 2 sliders in place.
Ensure the appliance doors open, close and seal properly.
Once complete, and if you are happy with the fit of the appliance in the cabinet, bend
and snap the parts of the white spacers marked ‘S’ as shown by the dotted outline.
Leave the rest of the spacer cover in place over the metal plates.
Important: After completing the installation, check that the appliance is secured within
the unit and that the door(s) close and open properly. If there is no resistance from the
door seals when opening the doors, then it is probable that the appliance and/or decor
doors are not fitted properly.
To Next Page
