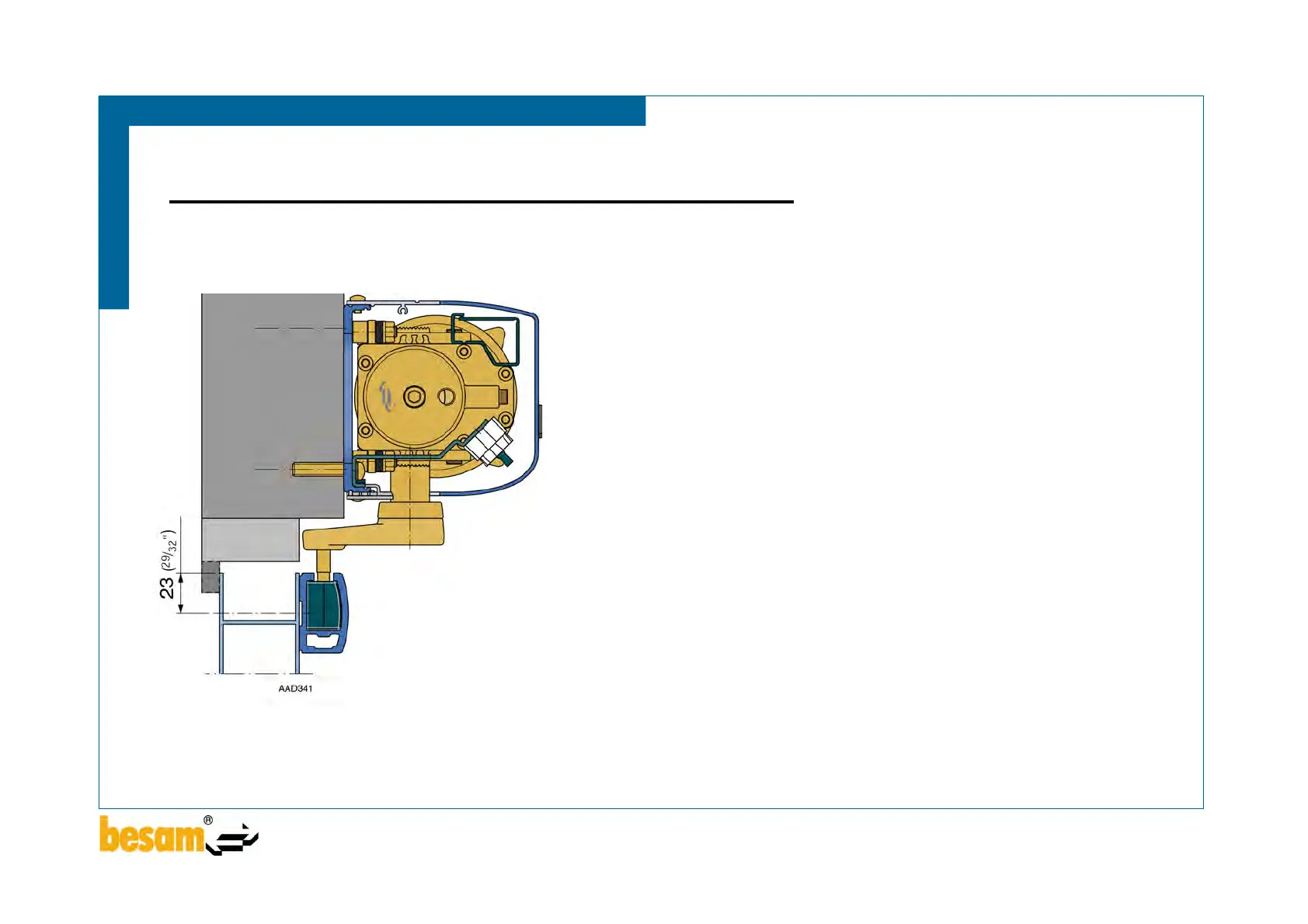

Cont. Mounting the PULL drive arm
4. Slide the guide shoe into the door fitting.
5. Mount the drive arm on the operator drive shaft with
the door in unchanged position 90°. Ensure that the
teeth of the adaptor fit well with the operator.
6. Tighten to a torque of 25 Nm (19 lbf.ft)
7. Slide the arm stop against the guide shoe and then
back 20 mm (3/4”). Fasten the arm stop.
8. Remove the strapping. The motor turns off and the
door closes.
9. Snap on the end plates to the door fitting.
