Besam PowerSwing - Operator Adjustment and Start-Up; Adjustment Screws and Limit Switches

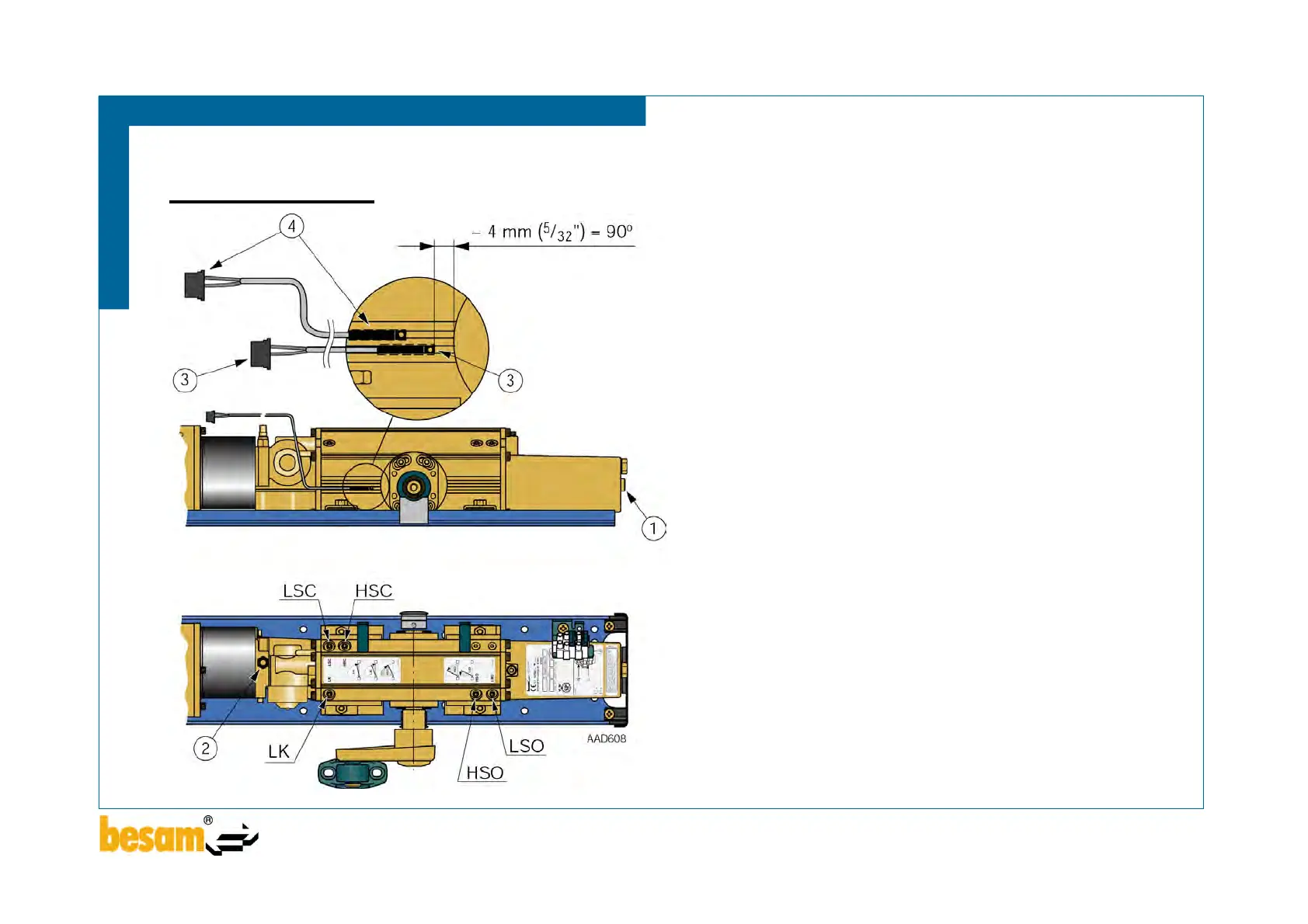

HSO= High speed opening valve
LSO= Low speed opening valve
HSC= High speed closing valve
LSC= Low speed closing valve
LK=”Lock kick” screw
1. Adjustment screw for spring force
2. Adjustment screw for pump
pressure
3. Limit switch for adjustment of
opening angle
4. Limit switch (option) 1A 200V DC
Adjustment
