Cont. Start-Up

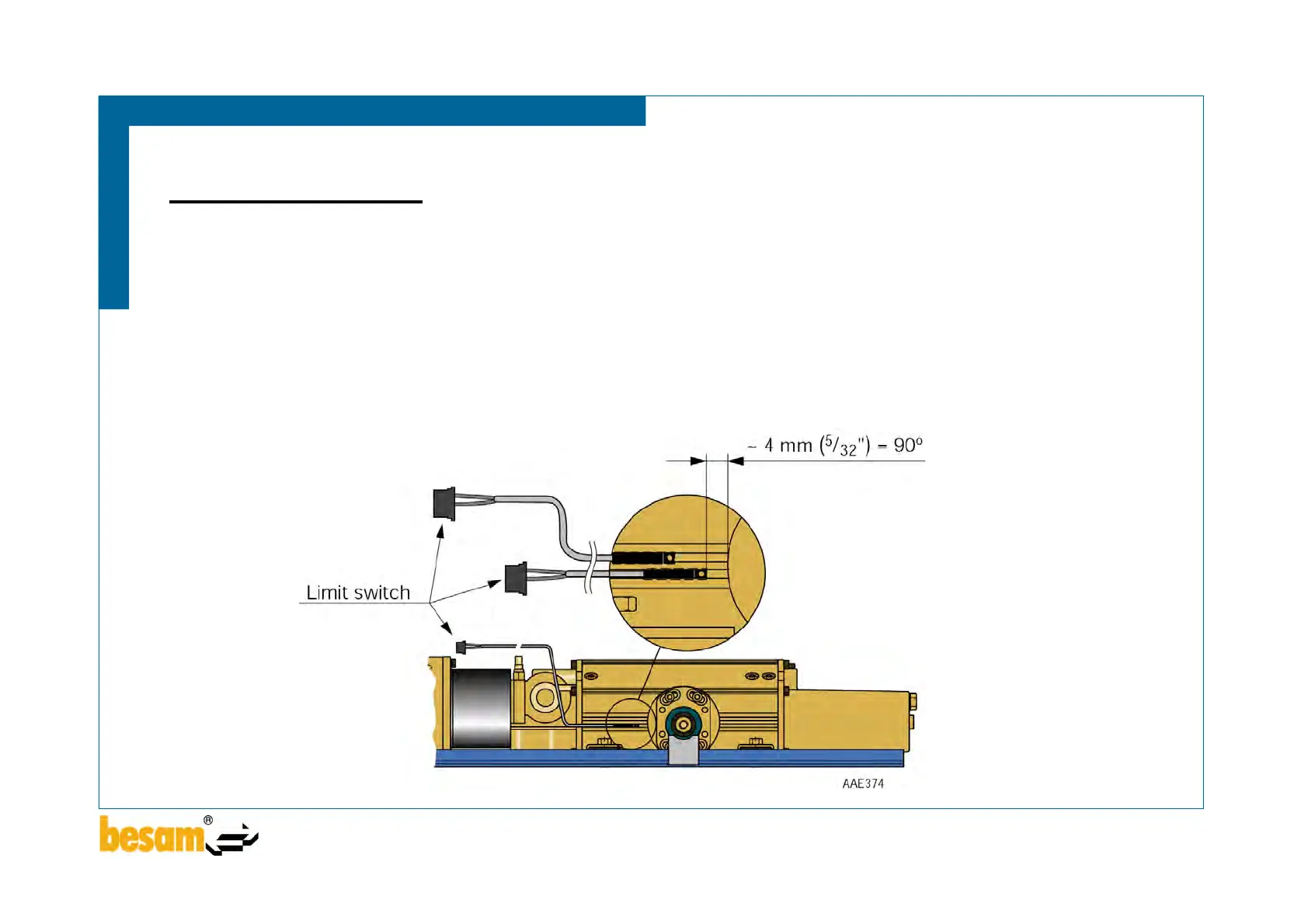

5. Fine-adjust the opening angle by means of the limit switch. Unlock the lock screw.
By moving the limit switch closer to the motor the opening angle is reduced.
Note! To make the adjustment easier, the limit switch can be moved to the underside
of the hydraulic unit. Any of the grooves can be used.
6. Check that the installation complies with valid regulations and requirements from the
authorities.
