Besam PowerSwing - Wall Mounted Operator - PUSH System

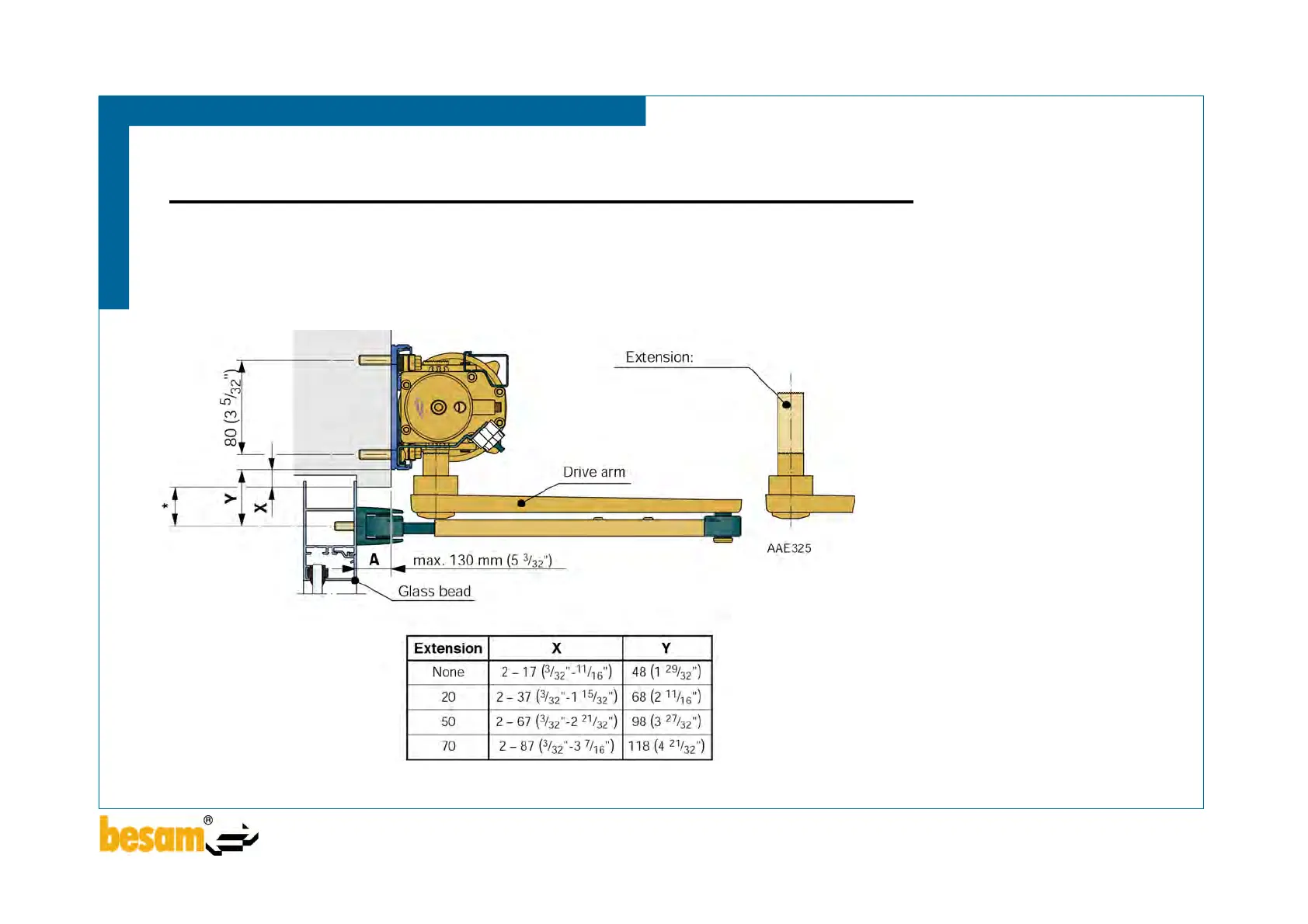

Wall mounted operator, arm system PUSH
• Decide X
• Draw a line on the wall for the underside of the mounting plate
• Door adaptor should
not be mounted on
glass bead
• Extension has to be
used if operator must
be mounted higher up
on the wall
* Min. 31 mm to
enable drive arm to
pass underneath
Note!
