Manual Sidedrive Dual Mast Carton Sealer (MSD)
16
Installation/Setup
WIDTH ADJUSTMENT CRANK: Turn the handle (W) clockwise for narrow and smaller packages;
turn the handle counter-clockwise for wider and larger packages. [Fig 2-3]
COMPRESSION ROLLERS: Adjust the compression rollers against the top edge of the box and
tighten the knobs to secure them in the operating position. [Fig 2-4]
FRAME ADJUSTMENT: Turn electrical switch to the “ON” position to start the drive belts. Move the
box forward under the top tape head frame until taken away by the drive belts. If the box is hard to
move or is crushed, raise the frame slightly to decrease pressure. If the box movement is erratic or
stops under the frame, lower the frame slightly to add more pressure between the box and the drive
belts.

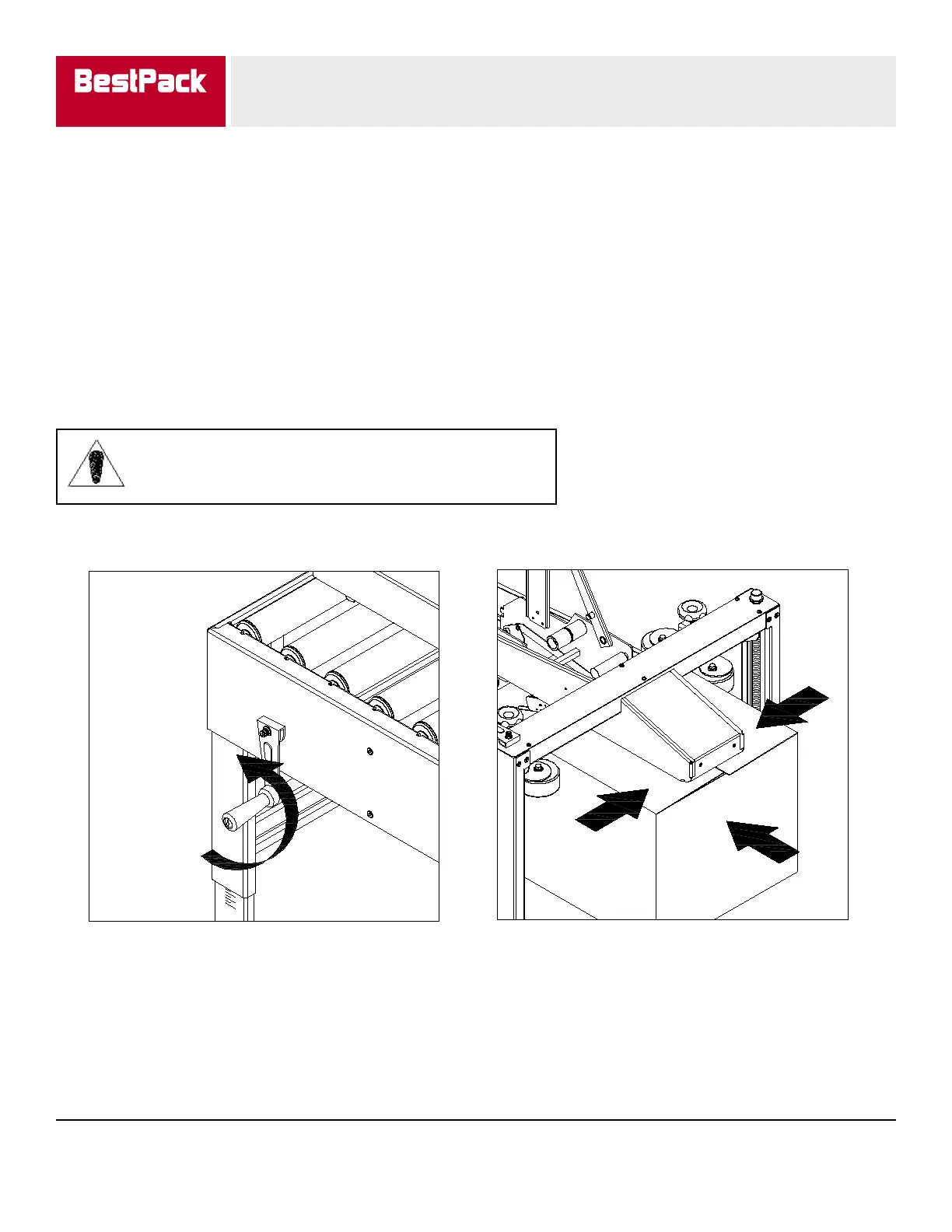

FIGURE 2-3
FIGURE 2-4
CAUTION: If drive belts are allowed to slip on
the box. Excessive belt wear will occur.
