Manual Sidedrive Dual Mast Carton Sealer (MSD)
15
Installation/Setup
SETUP PROCEDURE
It is important that the MSD22 series be setup and operated with the product prior to being subjected
to the production environment where time for setup, adjustment, and operator training is usually
limited.
CAUTION: Make sure machine power is turned off. Be careful with the driving direction of the
conveyer.

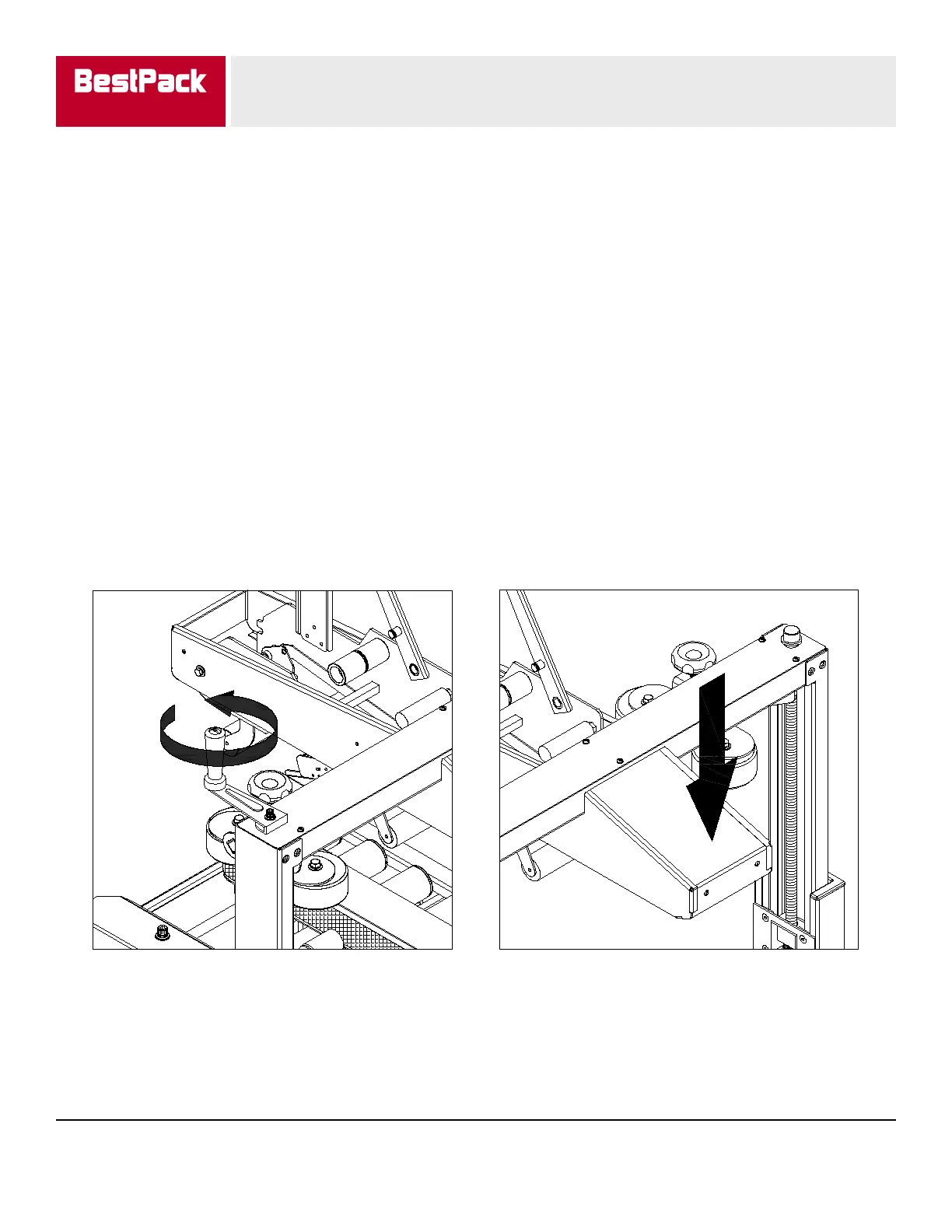

HEIGHT ADJUSTMENT: Once both tape heads are loaded with tape, the upper tape head can
be positioned for the box height being sealed by means of the height adjustment crank. Turn (H)
clockwise to decrease height or counter-clockwise to increase height. [Fig 2-1]
BOX SIZE SETUP: Place a closed box under the top drive frame. Lower the frame until all fl aps are
fully closed. Align the box top fl ap center seam with the center of the frame. [Fig 2-2]
FIGURE 2-1
FIGURE 2-2
