DataPro 500 Operator Guide
Introduction
Introduction
The DataPro 500 works in conjunction with LaserSpeed models 4000/8000/9000
speed and length sensors to measure and display the accumulated length and speed
of a product. The length is computed by counting pulses that are transmitted by the
LaserSpeed. The indicator has a front panel LED that can be configured, along with
the LaserSpeed, to indicate status information.
Operation

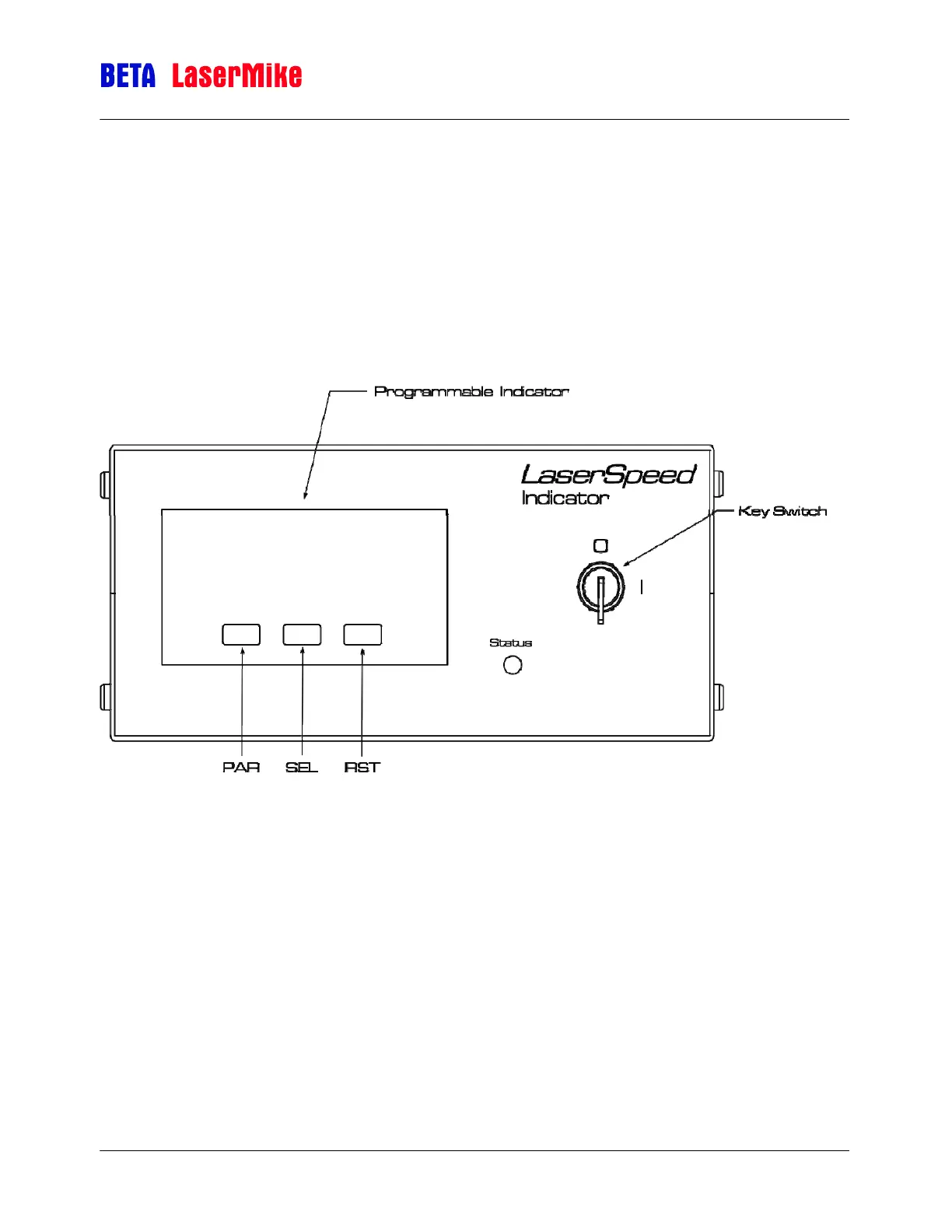

Key Switch
The DataPro 500 front panel key switch provides laser power and beam shutter
interlock protection. Neither the LaserSpeed’s laser nor the beam shutter will be
activated unless this key is turned to the “I” position. If using a remote interlock, this
key switch works in conjunction with the shutter interlock pins on the rear panel.
Part No. MAN/EN5400-0001 Page 8 of 14 Revision B (Jun 2010)
