GENERAL INFORMATION
CONOSCENZA DEL VEICOLO

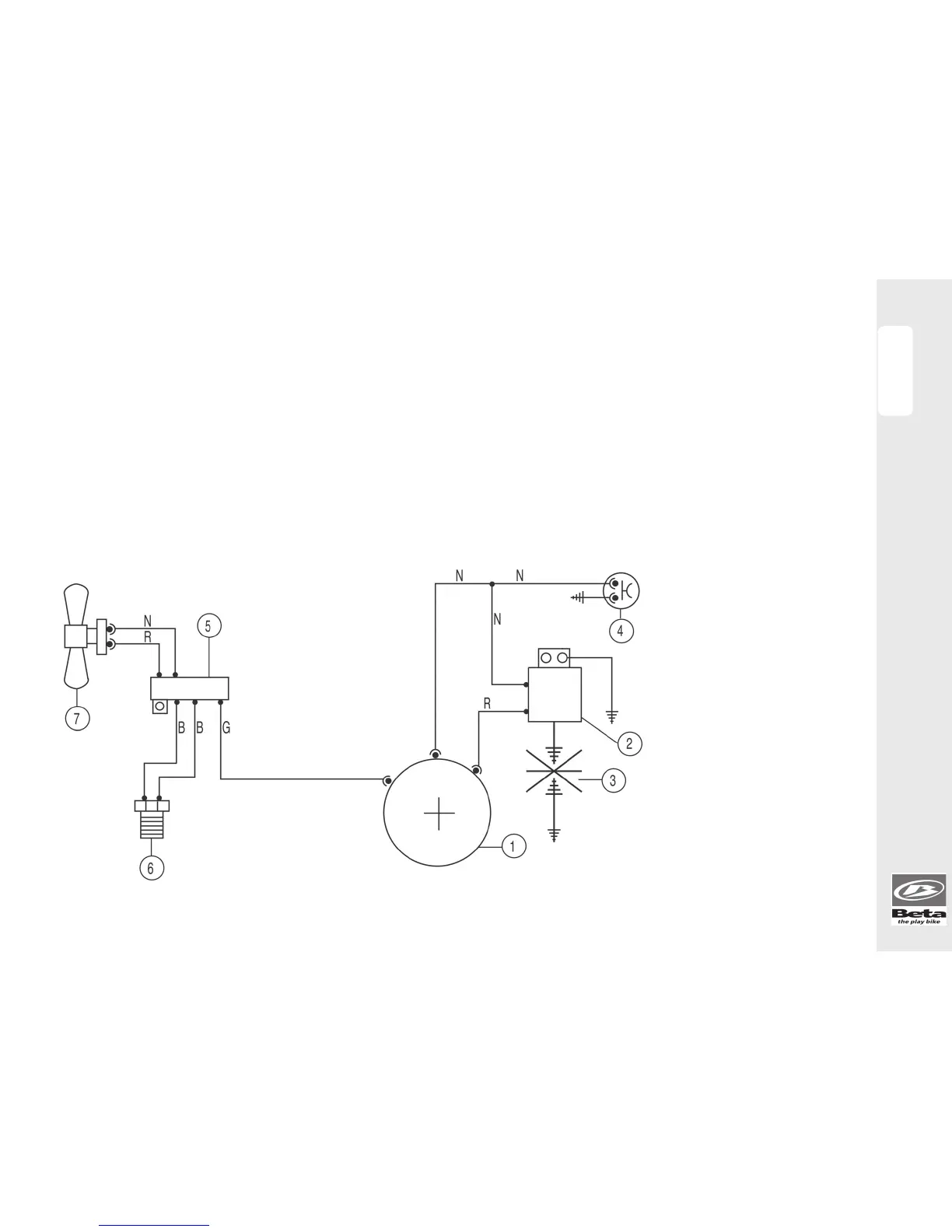

SCHEMA ELETTRICO
Legenda
1 Generatore
2 Bobina A.T.
3 Candela
4 Pulsante arresto motore
5 Regolatore
6 Termostato
7 Elettroventola
ELECTRICAL DIAGRAM
Legend
1 Generator
2 High Voltage coil
3 Spark plug
4 Engine stop push button
5 Regulator
6 Thermostat
7 Electric fan
• Ma.....................Marrone/Brown
• N ............................... Nero/Black
• R ............................... Rosso/Red
• G .......................... Giallo/Yellow
• B .....................................Blu/Blue
