Betts ES22PP-AABN - Parts List

Form Title:
Document #:
INSTALLATION AND MAINTENANCE MANUAL
MM-AD005
(Form: DEF-006A-4)
Revision:
0
Document Title:
Date:
Emergency/Remote Shutdown Air Valves
Oct. 26, 2023
Page:
3 of 10
Betts Industries Inc. ▪ 814·723·1250 ▪ 1800 Pennsylvania Ave. West ▪ Warren, PA 16365 ▪ www.BettsInd.com
Print Date: 11/21/2023 This form is considered uncontrolled 24 hrs. after print date.
4.69
CLOSED
5.12
OPEN
1.75
1.00
1.12
.94
Ø.21
1/4" NPT
1/4" NPT
1/4" NPT
1.93
2.65
3/4-16 UNC

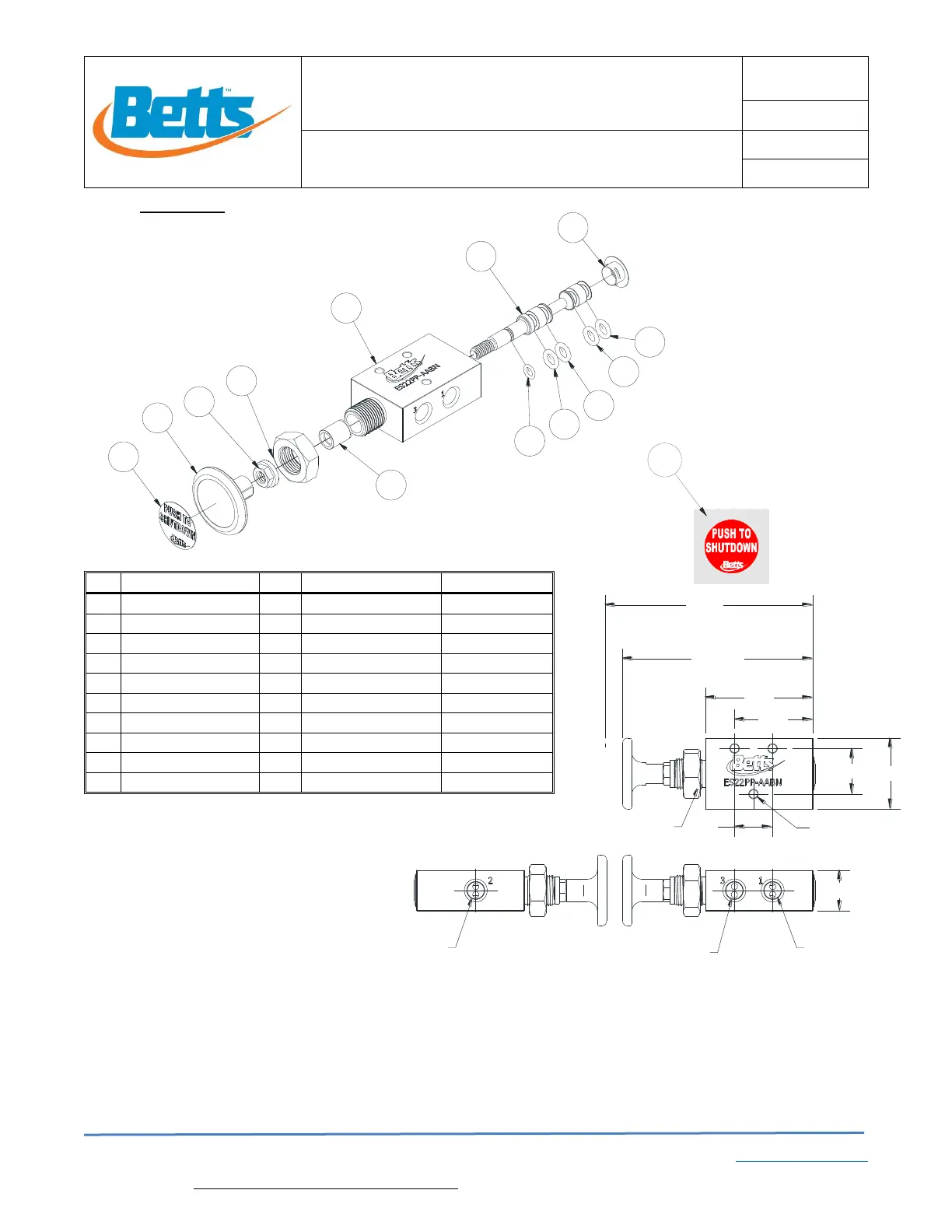

2.0 Parts List
No.
Description
Req.
Material
Part No.
1
Control Block
1
Anodized Aluminum
36260AA
2
Piston
1
Stainless Steel
29483SL
3
O-Ring
4
Nitrile (Buna-N)
19467BN
4
Detent O-Ring
1
Polyurethane
19507PY
5
Bushing
1
Brass
76299BR
6
Jam Nut 3/4-16
1
Stainless Steel
9Q9729
7
Flange Nut 5/16-18
1
Stainless Steel
9Q5859
8
Control Knob (Red)
1
Anodized Aluminum
76185AA-RED
9
Sticker - Shutdown
1
Vinyl
AD76276
10
End cap
1
LDPE
76327PE
1
2
5
6
10
3
3
3
3
4
8
9
7
9
