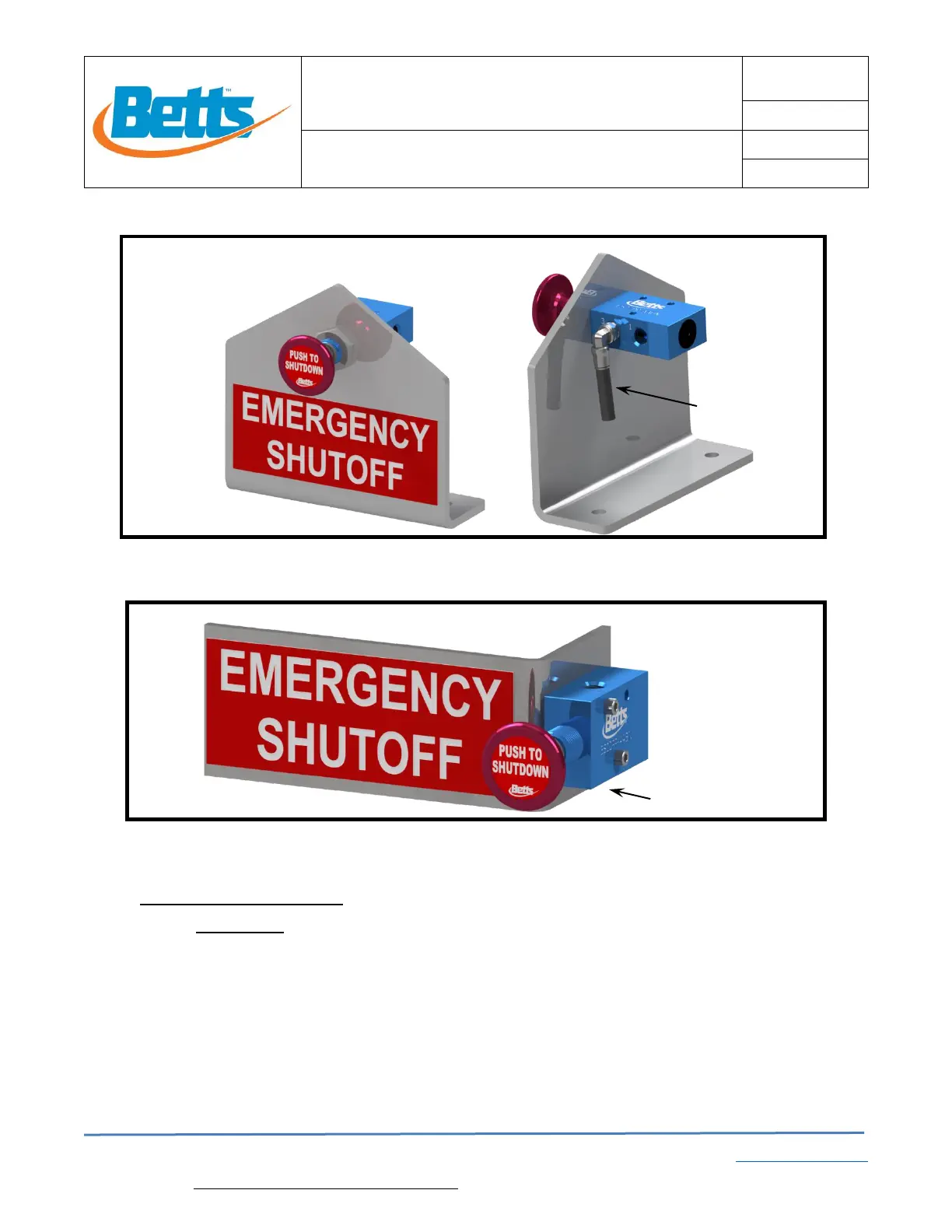

Fig. 1: Secured with Panel Nut, and drop tube to route exhaust
Fig. 2 : Secured with Socket Head Cap Screws through body
5.0 Inspection and Testing
5.1 Bench Test
5.1.1 Inspect all components for corrosion or damage and replace if necessary.
5.1.2 Actuate the valve twice to ensure it is functioning properly with smooth operation.
Ensure that the detent bushing feature is functioning properly with click-in feel in both
open and closed positions.
5.1.3 Check and ensure the end cap is snapped into the back of the valve and ensure that
the vent hole in the cap is not plugged or blocked.
5.1.4 Apply line pressure of 90-125 psi to the ports shown in the table below and inspect for
leaks. See Disassembly and Rebuild section for needed repairs.
