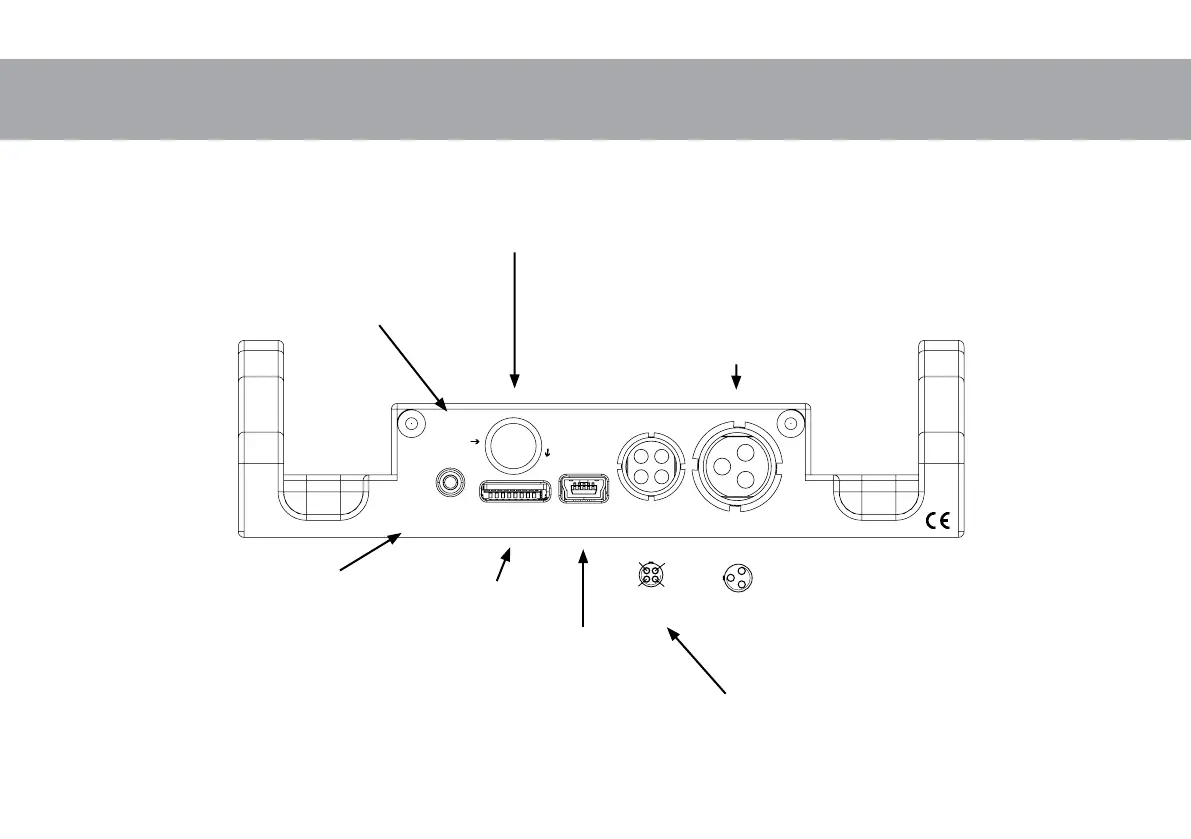

Betz WAVE - Control Panel Overview; Ports and Connections

CAN
10 -36 V DC IN
USBSD-Card
Horizon
Setup
#160313
RAMP
M-POWER
max.
Made in Germany
Menu Button and
Adjustment Knob for Setup
Control Panel
Fine adjustment Horizon
Serial#
Slot Micro SD-Card
for Software upgrades
USB-B
for external Software
Set Up
BT CAN-BUS
External control device
from our CAN Toolset
Lemo 0B 304
soldering side connector
+12V
GND
CANH
CANL
Lemo 1B 303
soldering side connector
+12V
GND
DC Power Input:
10 - 36 Volt
Power Consumption:
500mA peak 2,5A
