MCS 20 – System Configuration
61
english
MCS 221
T-adapter
MCS 221 MCS 223
MCS 221 MCS 221 MCS 221
MCS 20
Note: Only one MCS 223 chairman microphone unit can be connected.

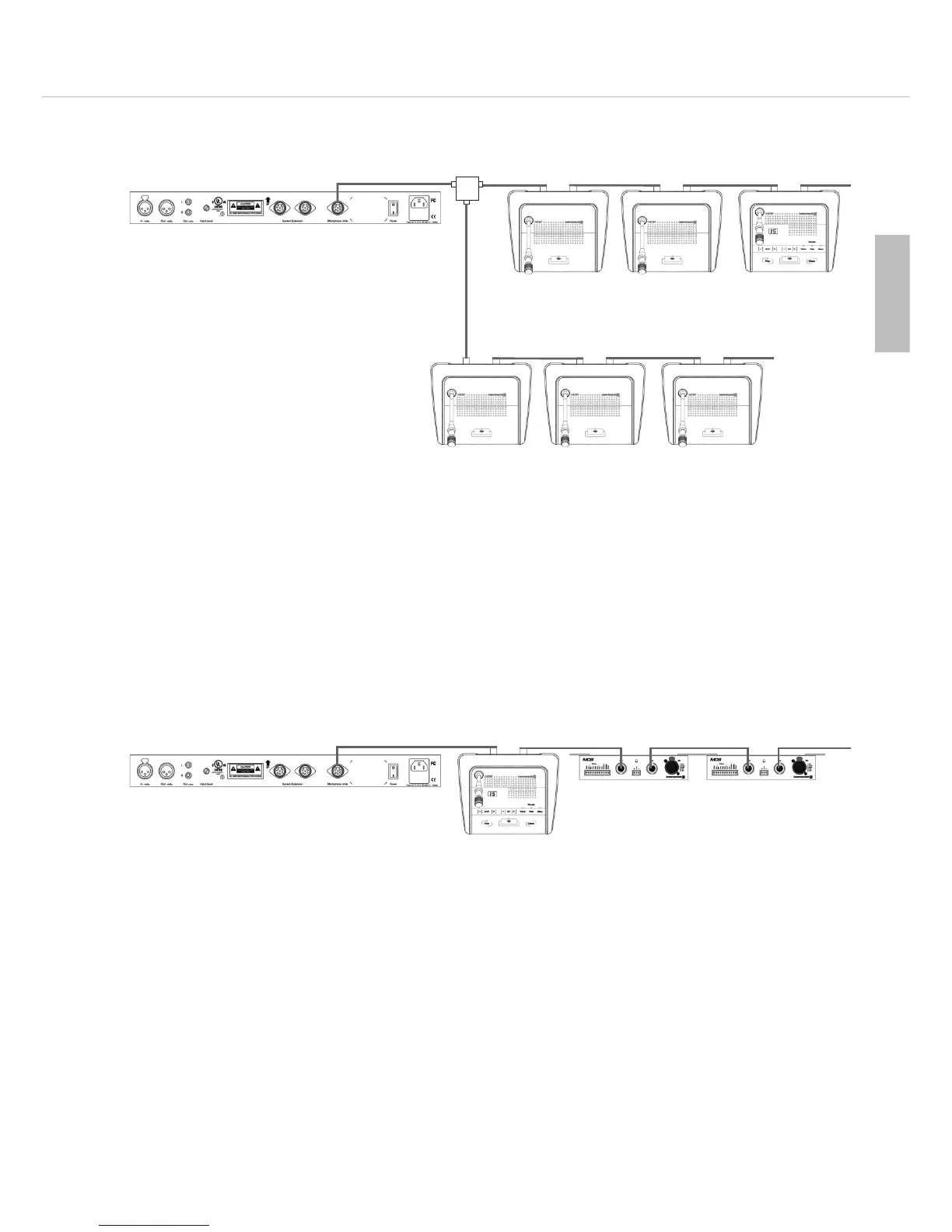

Configuration with T-adapter
further MCS 221
further MCS 221
Note: When using MCS 221 microphone units up to 60 microphone units can be connected to one MCS 20 power
supply unit with a maximum cable length of 2.5 metres between each microphone unit. When using the MCS 263
up to 45 system units can be connected to one MCS 20 power supply unit.
MCS 223 MCS 263 MCS 263
MCS 20
Configuration with MCS 263
more MCS 263
