14 Microphone Units TB Update (Boundary)
Turn on all Quinta microphone units MU TB which should participate in the update by pressing the micro-
phone button. All TB microphone units (MUs) will be updated simultaneously by wireless connection. En-
sure that no other MUs are located within the RF range of the Quinta CU antennas (for example next
door), otherwise those MUs will also participate in the update and/or may contribute to unwanted interrup-
tions during the update process.
All participating MUs have to have a stable radio connection to the Quinta CU.
Please see the appendix for more information about the MU signalling code.
At the beginning of the update all TBs automatically switch to boot loader mode.

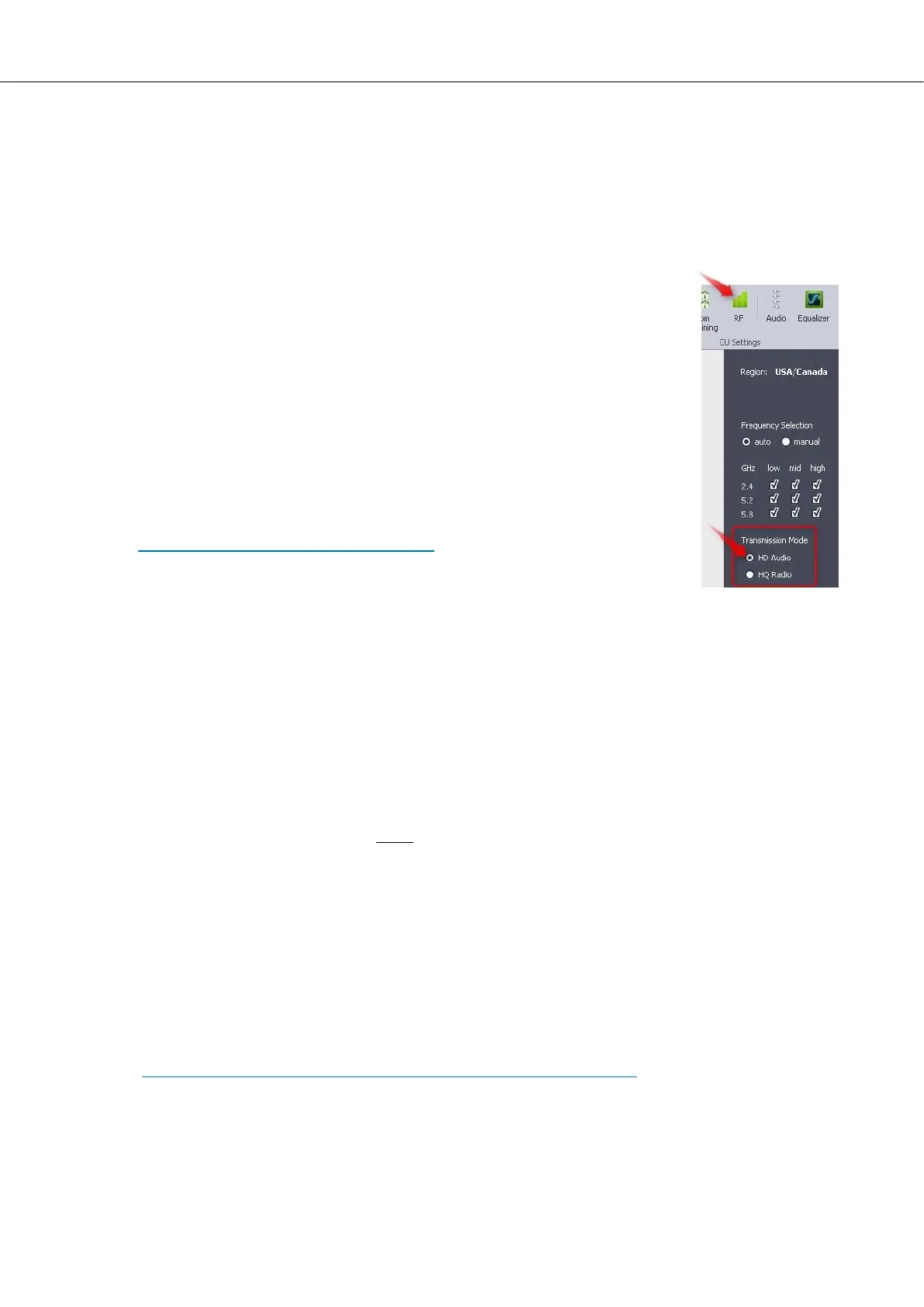

For the duration of the MU update process, please set the RF transmission
mode to HD Audio! Restore your original configuration (HD/HQ) after the update.
Load New Microphone Unit Firmware
a) Open the field programmer window in the Quinta Software as described in
chapter 4: General Field Update Procedure.
b) Browse to the folder:
Quinta_System_Update_07-2018\3_Microphone-Unit\MU_TB_Bound-
ary_firmware\
and select the file: FieldUpdate_TB_3001.hex.
c) Click on „Start Update“ and wait until the process is finished (about 3 minutes).
Please observer the MU status during the update:
The microphone button flashes green periodically and thereby signals boot loader mode.
The rear side power LED flashes green in order to signal incoming radio data.
At the end of a successful update the MUs power off on their own. Please refer to the troubleshooting
section on the next page in case the update was not successful.
If the former MU firmware version was lower than 3.0.00, please proceed with the following steps:
d) Power up all MUs again and make sure the connection to the CU is established (solid white lit mic
button).
e) Browse to the folder:
\Quinta_System_Update_07-2018\3_Microphone-Unit\MU_TB_Boundary_firmware\
and select the file: MU_config_MicMode.hex. It is not necessary to click on “Start update”, since this
update will be executed immediately.
f) The Quinta MU will power off after a few seconds which indicates a successful file transmission.
Please proceed with the Quinta system update by checking the version number of your next component.
See chapter 2: Determine Your Update Procedure, section Microphone Units.
