Ø 6
Ø 22
Ø 6
Ø 6
1 2 3 4
3
TX
*
RX
400÷600 mm
TX
*
TX
*
RX
RX
*
Only for PG
wire inlet from
the bottom

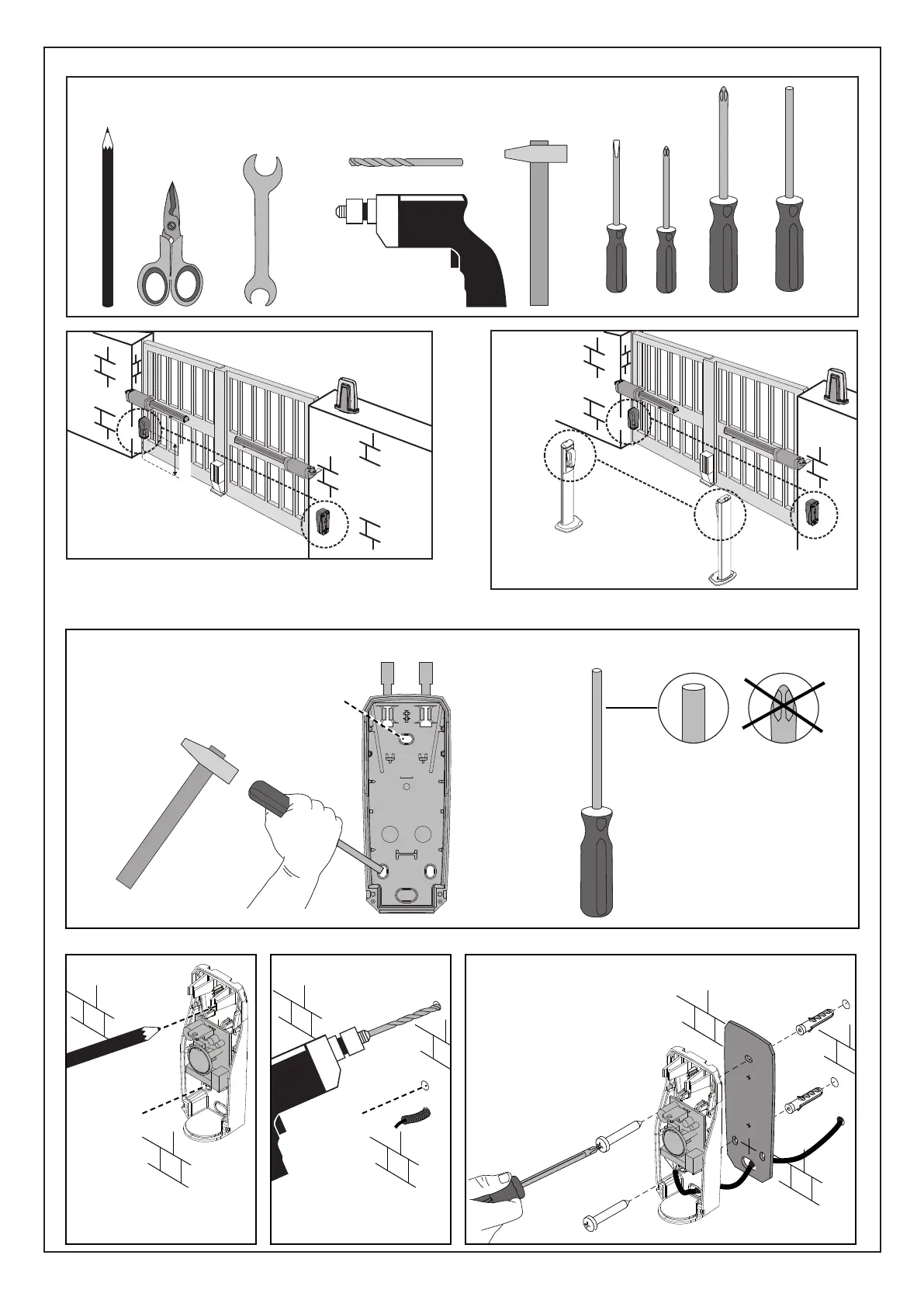

FITTING THE PHOTOCELLS ONTO THE WALL
In the event of an UNEVEN wall, insert A SINGLE screw (bottom)�
WARNING: THE SCREW SHOULD BE SECURED TO THE MOST EVEN PART OF THE WALL Proceed as shown in the sequence:
*Not provided
*Not provided
Break the provisionary holes
Make a mark with a pencil
through the holes
Drill the holes
Insert the appropriate screws
and screw in
FABER BT - FABER L BT KIT - 45
D812458 10550_01
