Only for PG
wire inlet from
the bottom
Ø 6
Ø 22
Ø 4
Ø 4
1 2 3
3
4
4
TX
*
RX
400÷600 mm
TX
*
TX
*
RX
RX
*
*Not provided
*Not provided

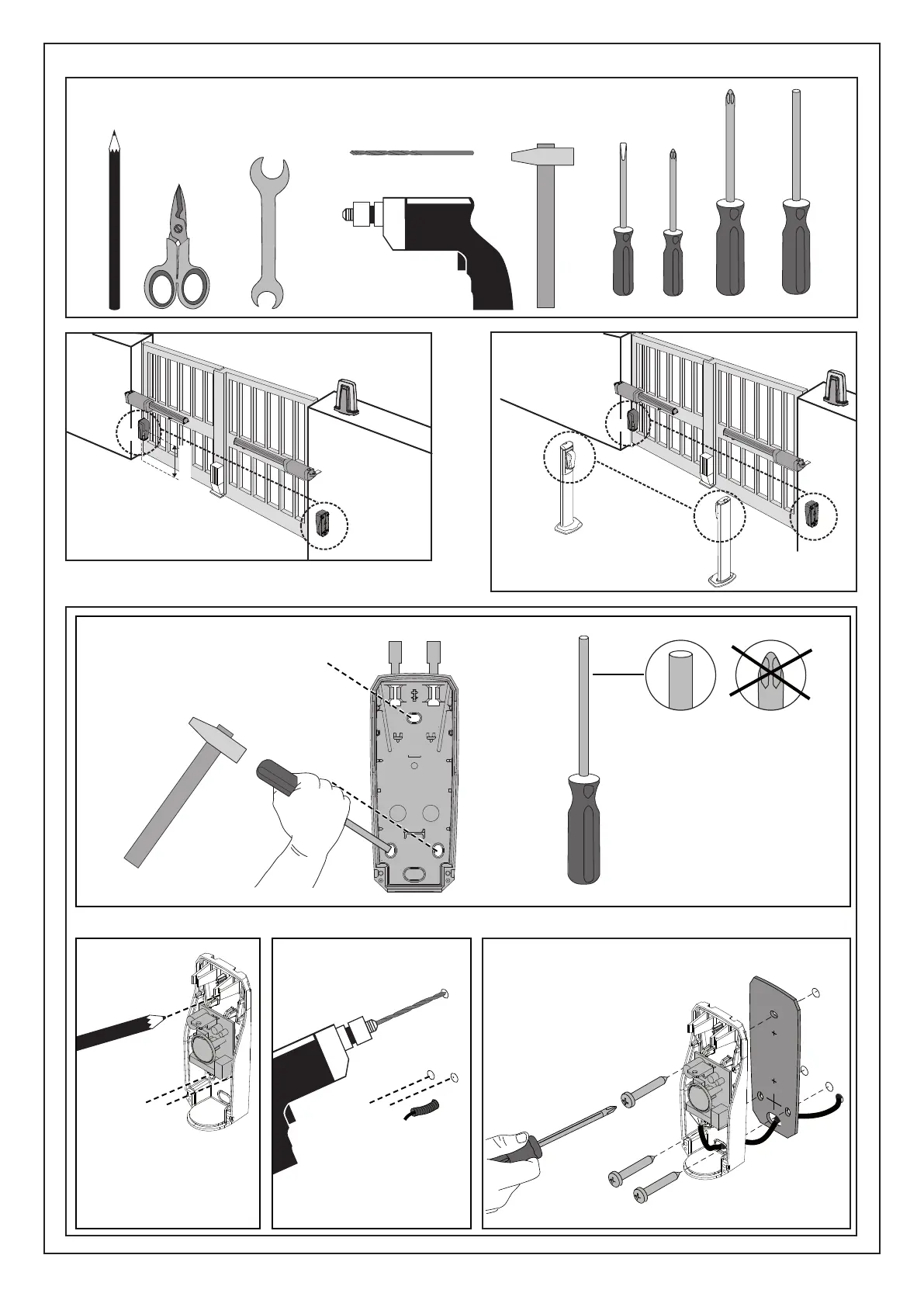

FITTING THE PHOTOCELLS ONTO IRON:
Proceed as shown in the sequence:
Break the provisionary holes
Make a mark with a pencil
through the holes
Drill the holes
Insert the appropriate screws and screw in
46 - FABER BT - FABER L BT KIT
