BFT RIGEL 5 Quick Reference

Machine Directive Compliance
Hydraulic & Electromechanical;
1. Adjust parameter to enable M1 to close 600mm before M2
Hydraulic;
2. Adjust the force at the leading edge with the CLOSE pressure screw to give
under 400N in the last 500mm of closing (utilise hydraulic slow down if available)
Electromechanical;
2. Adjust parameter to give 600mm of slow space
3. Adjust parameter to give under 400N during slow down
Hydraulic & Electromechanical;

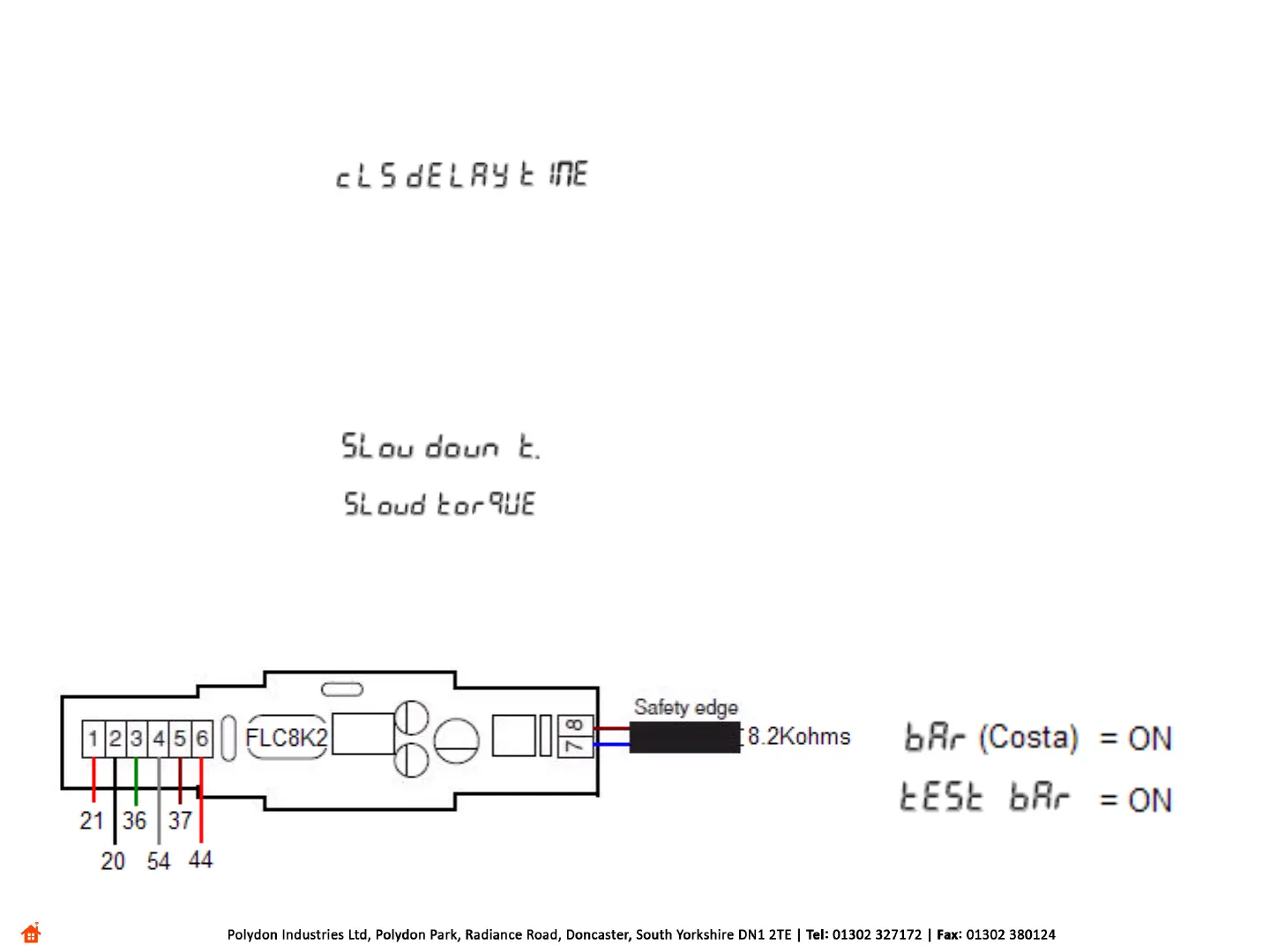

Fit a safe edge to the leading edge of M2
Run a full set of tests and address all other risks as appropriate
Set Logics
www.metalines.com
sales@metalines.com

BFT RIGEL 5 Specifications

General

Power Supply	230 V
Protection Rating	IP54
Control Panel	LCD
Operating Temperature	-20°C to +60°C
Inputs	Photocells, stop, opening and closing
