BG0836 1/2.7 inch 1080P HD CMOS image sensor
22/ 24
P0 P1 P2 P3
P0
[4]
P0
[5]
P0
[6]
P0
[7]
P0
[8]
P0
[9]
P0
[10]
P0
[11]
P1
[4]
P1
[5]
P1
[6]
P1
[7]
P1
[8]
P1
[9]
P1
[10]
P1
[11]
P0
[0]
P0
[1]
P0
[2]
P0
[3]
P1
[0]
P1
[1]
P1
[2]
P1
[3]
P2
[4]
P2
[5]
P2
[6]
P2
[7]
P2
[8]
P2
[9]
P2
[10]
P2
[11]
P3
[4]
P3
[5]
P3
[6]
P3
[7]
P3
[8]
P3
[9]
P3
[10]
P3
[11]
P2
[0]
P2
[1]
P2
[2]
P2
[3]
P3
[0]
P3
[1]
P3
[2]
P3
[3]
raw12 Output order of data
P0
[4]
P0
[5]
P0
[6]
P0
[7]
P0
[8]
P0
[9]
raw10 Output order of data
P0
[2]
P0
[3]
P1
[4]
P1
[5]
P1
[6]
P1
[7]
P1
[8]
P1
[9]
P1
[2]
P1
[3]
P2
[4]
P2
[5]
P2
[6]
P2
[7]
P2
[8]
P2
[9]
P2
[2]
P2
[3]
P3
[4]
P3
[5]
P3
[6]
P3
[7]
P3
[8]
P3
[9]
P3
[2]
P3
[3]
P0
[0]
P0
[1]
P1
[0]
P1
[1]
P2
[0]
P2
[1]
P3
[0]
P3
[1]

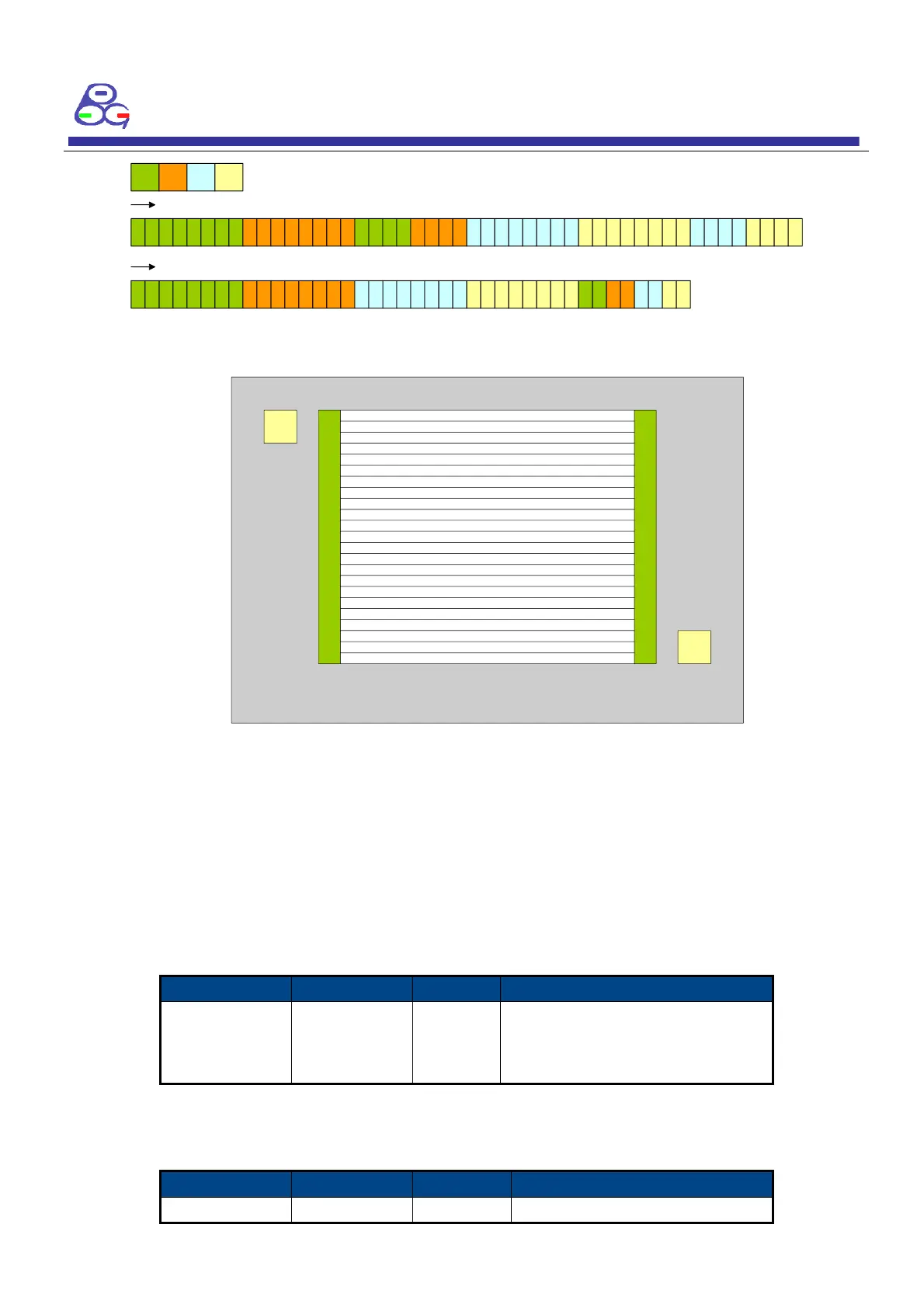

Figure 15 raw10/raw12 Data output sequence
Blanking
Package Header(PH)
Image Line Data
Package Foot(PF)
FS
FE
Figure 16 Mipi Frame Timing
Others
IO adjust the drive ability
BG0836 supports adjustment of IO drive capability. It is used to make the Sensor to
adapt different load applications. The detailed information is shown in the table below:
Table 20 Adjust the driving ability registers
Name
Address
Width
Function
DV_CTRL
0x008d
8
Bit[7:4]: dv_sync adjust the driving
capability
Bit[3:0]: dout adjust the driving
capability
Pixel Clock phase adjustment
Table 21 Adjust Pclk phase position
Name
Address
Width
Function
CLK_DLY_CTL
0x0088
3
• Bit[2:0] pclk Phase Adjustment
