V1.2

BG0836 1/2.7 inch 1080P HD CMOS image sensor

9/ 24

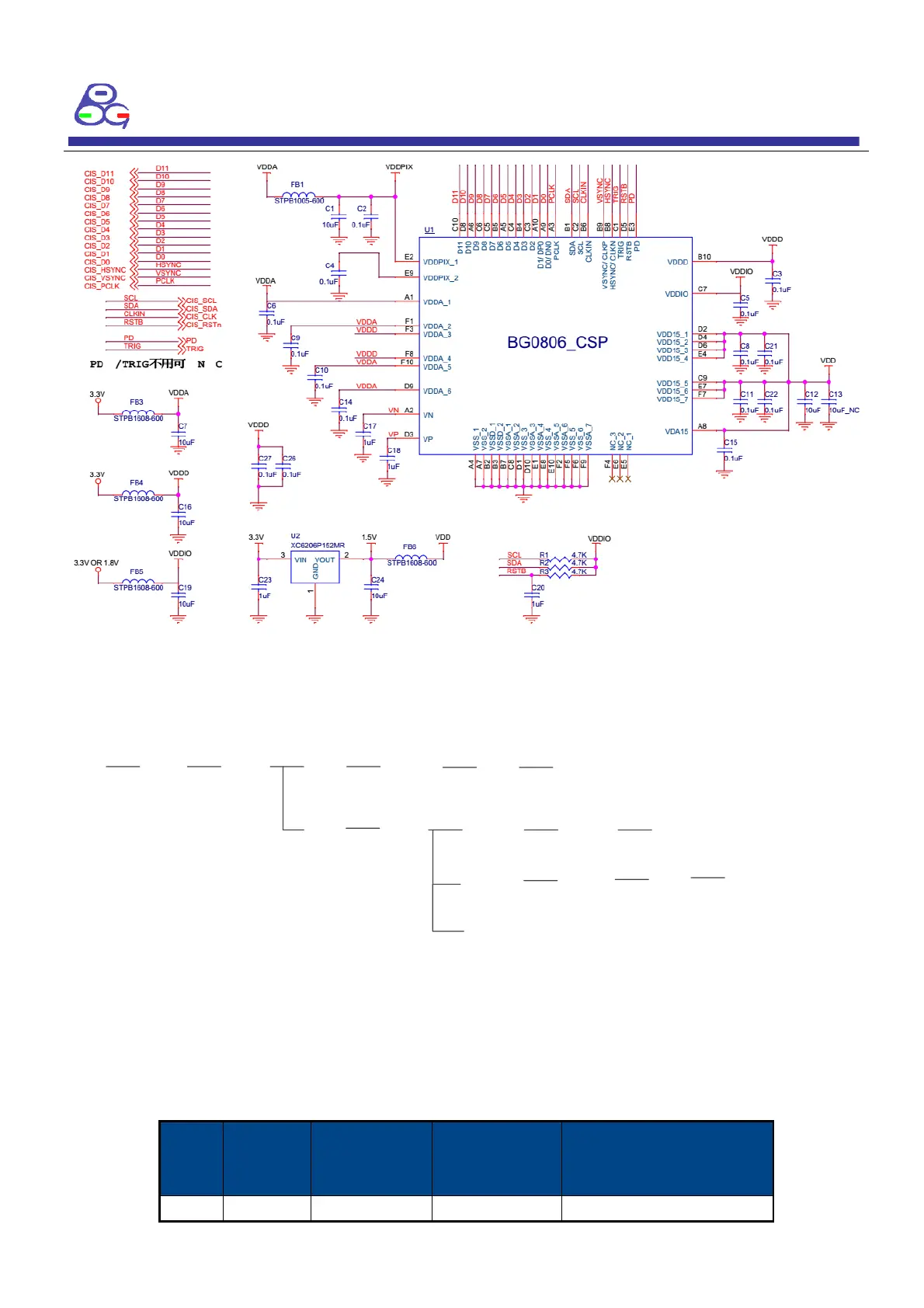

Figure 4 Recommended schematic with DVP interface

Power supply design

The range of VDDIO is 1.8V~3.3V. 1.8V is recommended.

12V DCDC 3.3V Bead

Bead

VDDA

VDDD

Bead VDDPIX

D3.3V LDO

VDDIO

1.5V

Bead

VDD

LDO

1.8V

Figure 5 Recommend Power Tree（1.8V IO）

The power consumption and requirement peripheral capacitor of each power supply

are listed in the table 3 and table 4.

Table 3 power supply requirement（MIPI mode）

power

supply

Recommended

voltage

Consumption

current

(maximum)

External small capacitance

VDDD

3.3V

10mA

0.1uF x 1
