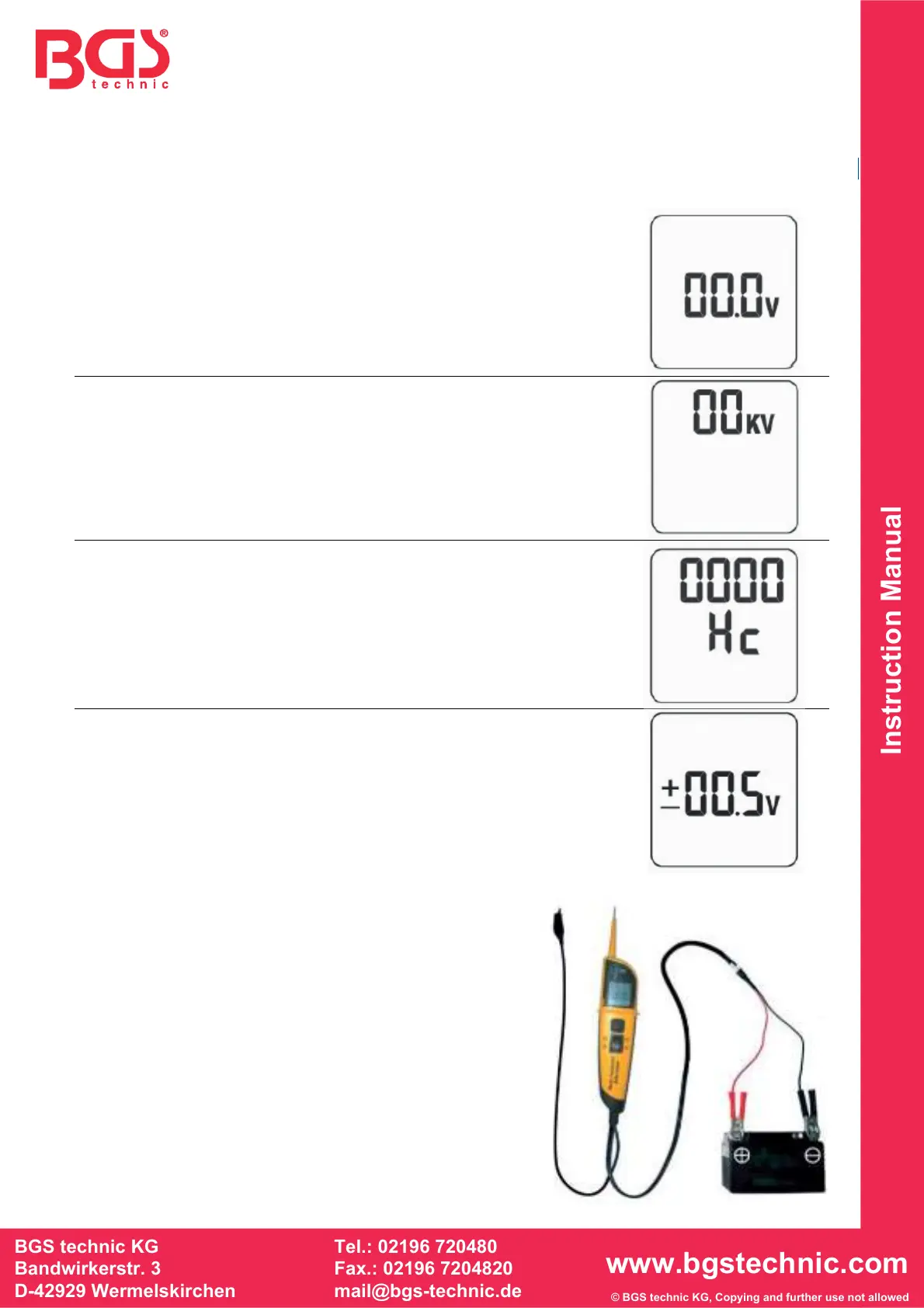

MODE INSTRUCTION
It have four modes, the four modes can be selected by depressing the mode select button and cycling
through each one.
MODUS
Voltage tester
Measuring range: 0 to 60V
Ignition voltage measuring range
Voltage is shown in KV
Measuring frequency
Value is shown in Hertz (Hc)
Peak Detection
Sends a signal if exceed the preset threshold voltage.
CONNECTION
Power Connection
1. Hook up the black power clip to the negative of the
vehicle battery.
2. Hook up the red power clip to the positive of the vehicle
battery.
