AIR SOURCE
Clean air of correct air pressure is recommended for the power supply for this tool. A maximum of 90
PSI at the tool is recommended for most air tools of this class. Check specifications section for
recommended pressure. Depending on length of air hose and other circumstances, air pressure at
compressor may need to be increased to 100 PSI to ensure 90 PSI at the tool. Water in the air hose
and compressor tank contributes to reduced performance and damage of the air tool. Drain the air
tank and filters before each use and as necessary to keep the air supply dry. Hose length over 25”
causes loss in line pressure. Increase hose ID or increase compressor pressure to compensate
for the pressure loss. Use an in-line pressure regulator with gauge if air inlet pressure is critical.

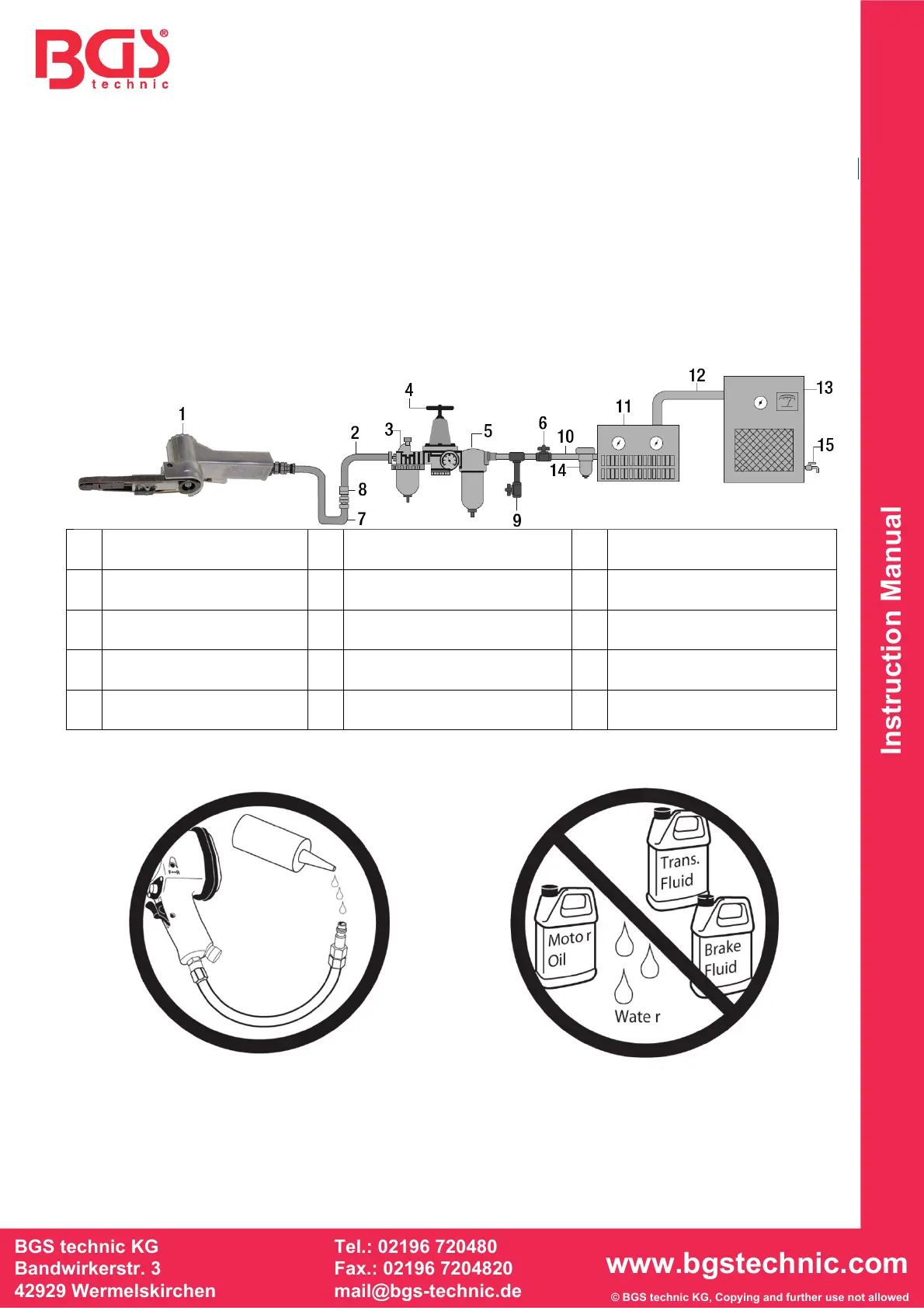

Recommended air compressor unit
1
Tool
Shut Off Valve
1
Air Dryer
2
Air Hose
Whip Hose
2
1“ Or Larger Pipe
3
Oiler (required)
Connector
3
Air Compressor
4
Pressure Regulator
Drain Valve (Drain Daily)
4
Auto Drain
5
Filter
0
½“ or Larger Pipe
5
Drain Valve (Drain Daily)
LUBRICATION & MAINTENACE
Only operate unit on compressed air system that equipped an automatic oiler.
Do not exceed maximum pressure which is described under "Specifications" section.
Before first use give 4-5 drops of pneumatic equipment oil into the air inlet.
Drain the water from the compressed air system before each use.
Water in air line or compressor can be lead to destruction of the air tool and power loss.
Clean or replace air filters in the prescribed intervals.
Air tools
