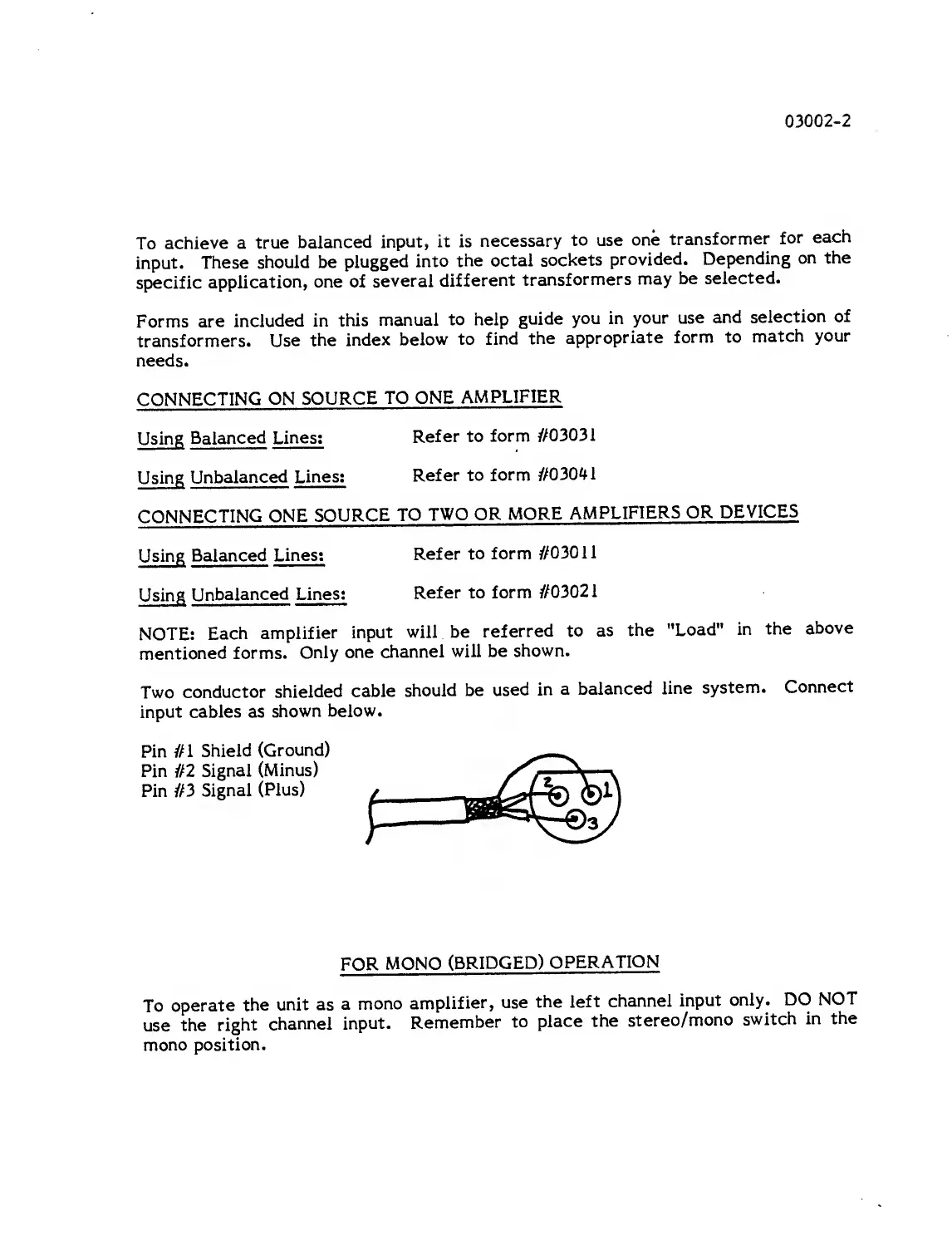

BGW 150 - Balanced Input Transformers; Connecting Multiple Units; Mono (Bridged) Operation Input

03002-2
To
achieve a
true
balanced
input,
it is
necessary
to
use
one
transformer
for
each
input.
These
should be
plugged
into
the octal
sockets
provided.
Depending
on the
specific
application,
one of
several
different
transformers
may
be
selected.
Forms
are
included in
this
manual
to help
guide
you in
your
use
and
selection
of
transformers.
Use
the
index
below
to
find
the
appropriate
form to
match
your
needs.
CONNECTING
ON SOURCE
TO ONE
AMPLIFIER
Using
Balanced
Lines;
Refer to
form
#03031
Using
Unbalanced
Lines:
Refer
to
form
#03041
CONNECTING
ONE
SOURCE
TO
TWO
OR
MORE
AMPLIFIERS
OR
DEVICES
Using
Balanced Lines;
Refer
to
form
#030
1
1
Using
Unbalanced
Lines;
Refer to
form
#03021
NOTE:
Each
amplifier
input will
be
referred
to as
the
"Load"
in
the
above
mentioned
forms.
Only
one
channel will
be
shown.
Two
conductor
shielded
cable should
be
used
in
a
balanced
line
system.
Connect
input
cables
as
shown
below.
Pin
#1
Shield
(Ground)
Pin #2
Signal
(Minus)
Pin #3
Signal
(Plus)
FOR
MONO
(BRIDGED)
OPERATION
To
operate
the
unit as
a
mono
amplifier,
use
the left
channel
input
only.
DO
NOT
use
the
right
channel
input.
Remember
to
place
the
stereo/mono
switch
in
the
mono position.
