BGW 150 - Bridging Unbalanced Line Inputs

03021

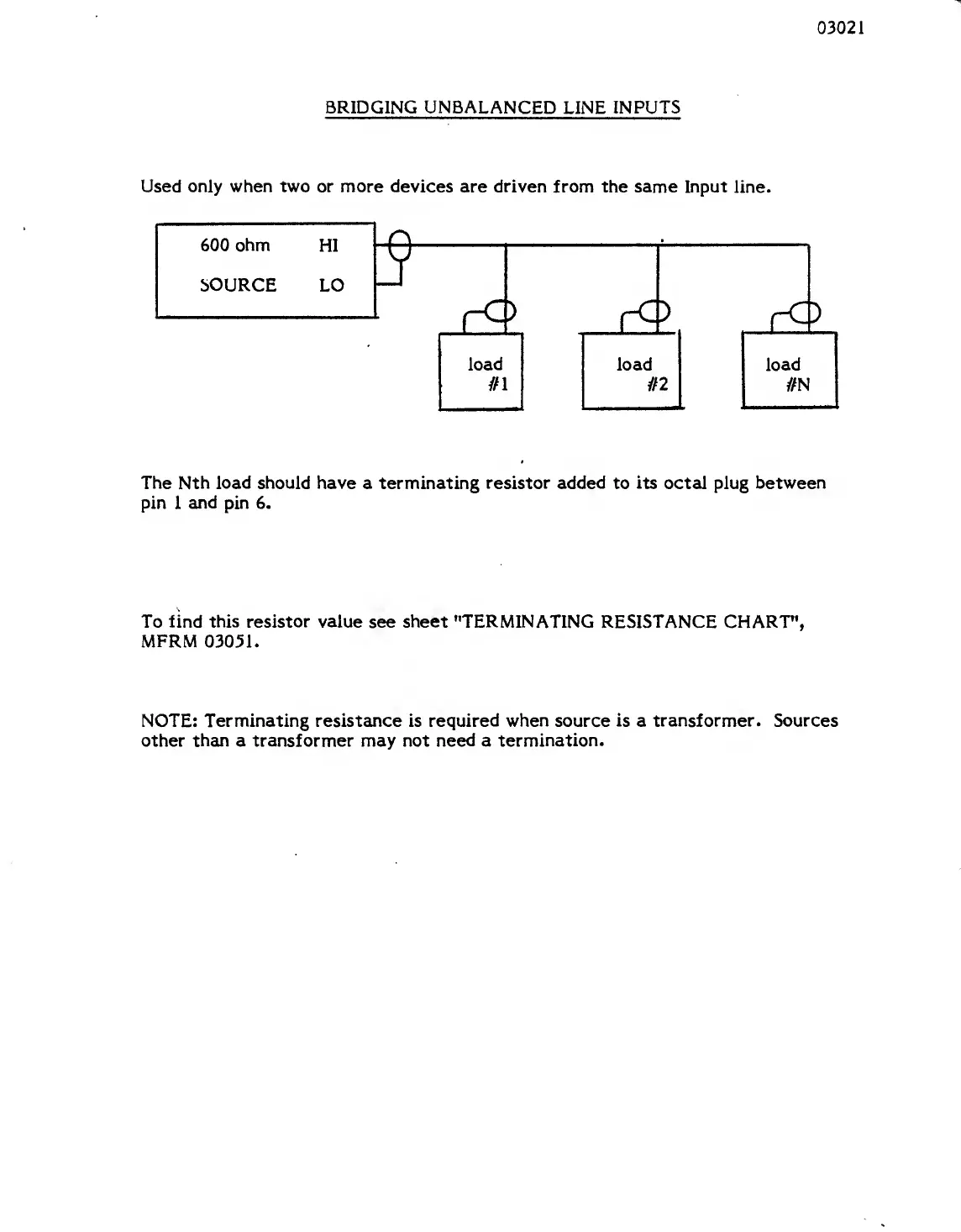

BRIDGING UNBALANCED
LINE
INPUTS
Used only when two or more devices
are
driven
from the same Input
line.
The
Nth
load should have
a terminating
resistor added
to
its
octal plug
between
pin 1
and
pin 6.
To find this
resistor
value
see sheet "TERMINATING RESISTANCE CHART",
MFRM 03051.
NOTE:
Terminating resistance
is
required when
source
is
a
transformer. Sources
other
than
a transformer may not
need
a
termination.
