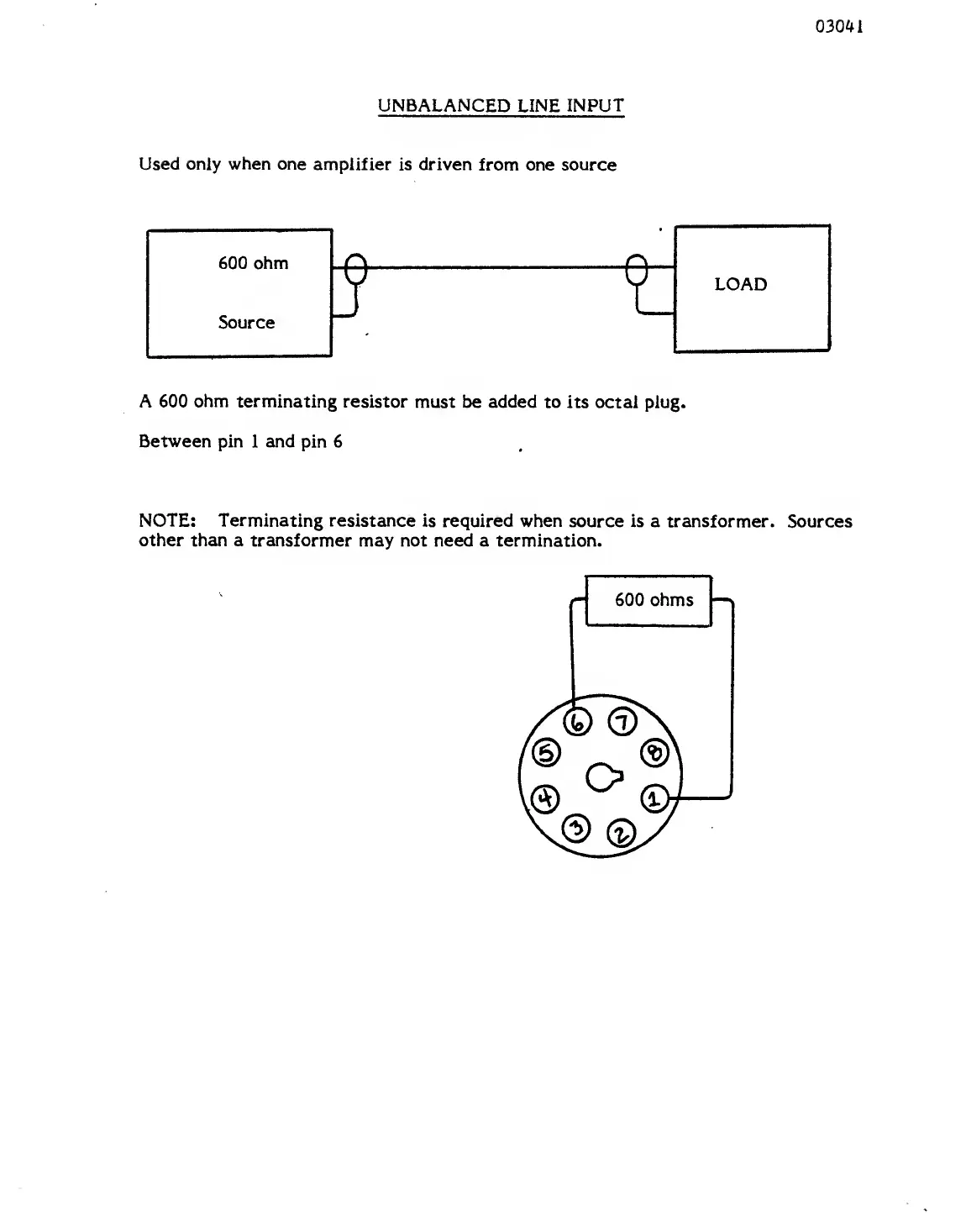

BGW 150 - Single Unbalanced Line Input

03041
UNBALANCED
LINE
INPUT
Used only
when
one
amplifier is driven
from one source
600 ohm
Source
A 600
ohm terminating
resistor
must be added to
its octal plug.
Between pin
1
and
pin 6
NOTE: Terminating resistance
is required when
source is a transformer.
Sources
other
than a transformer
may not need a termination.
