SPECIFICATIONS & BLOCK DIAGRAM
Frequency Response (20Hz~20kHz @ +4dBu): +0/-0.5dB Sampling Rate: 48kHz
THD+Noise (20Hz~20kHz @ +4dBu): < 0.018% A/D & D/A Converters: 128x oversampled 24-bit sigma delta
Dynamic Range (20Hz~20kHz): > 100dB Power Consumption: < 15 watts
Maximum Gain: 20dB Dimensions:
Input Impedance (balanced): 20k ohms height (1 rack space) 1.75” (44mm)
Maximum Input (balanced): +24dBu width 19” (483mm)
Output Impedance (balanced): 200 ohms depth 7” (178mm)
Maximum Output (balanced): +24dBu Weight: 4.5 lbs. (2.04kg)
Input
gain
gain
manager
equalizer delay
Output
A/D
D/A
Digital Signal Processor
receive
send
link port
RS-232
serial
port
logic inputs

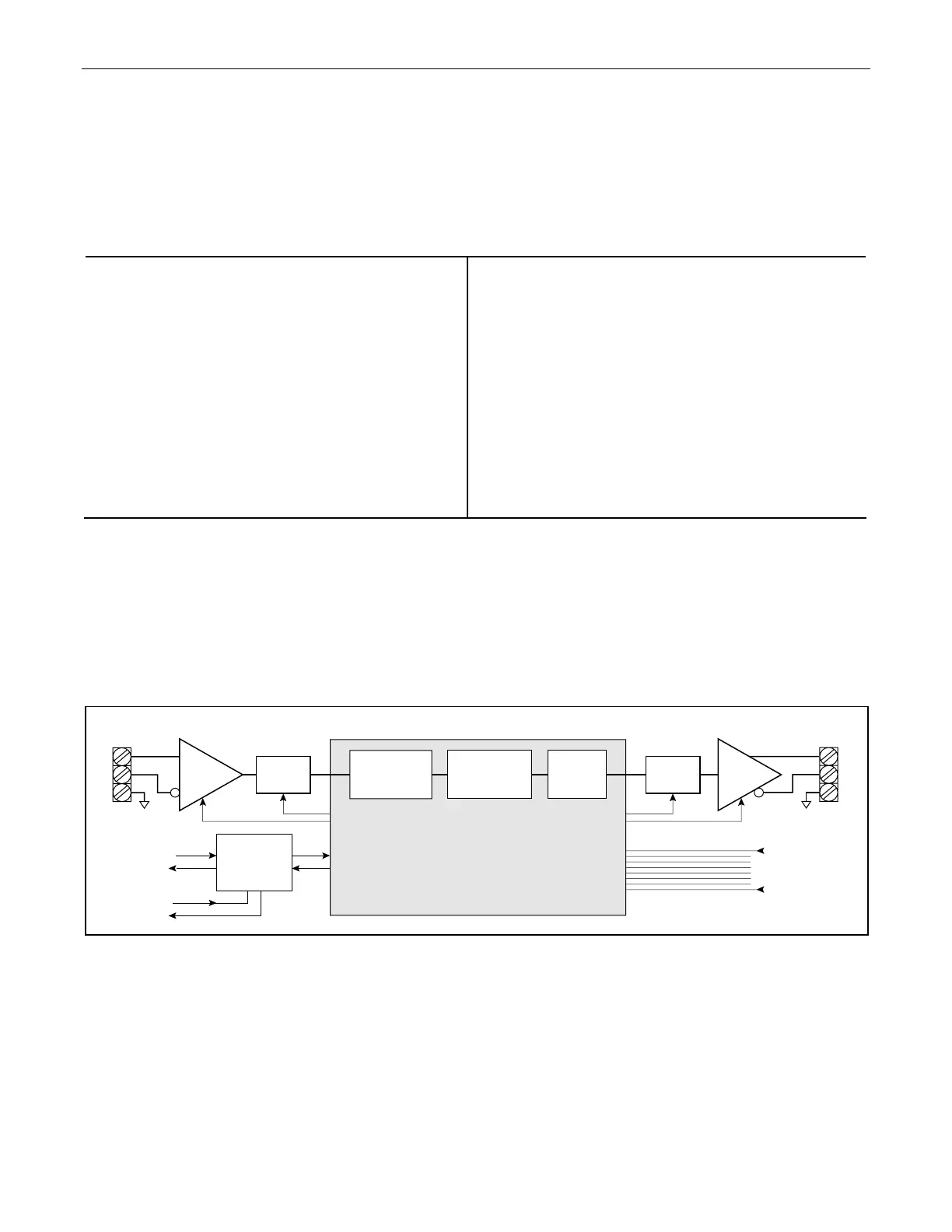

MSP11 Block Diagram
