TesiraFORTÉ Installation and Operation Guide page 5

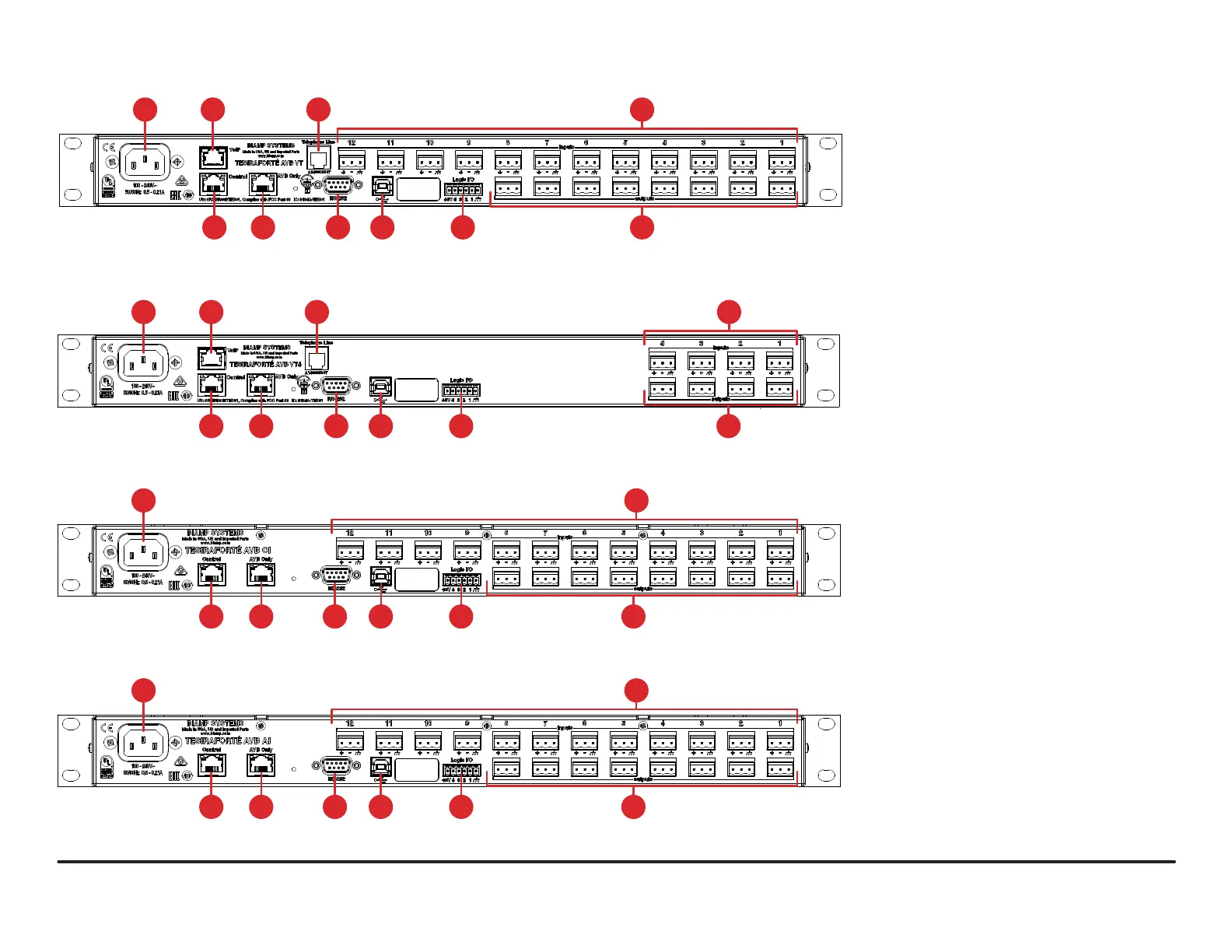

TesiraFORTÉ FIXED I/O SERVER DEVICES REAR PANEL
Figure 6. TesiraFORTÉ VT AVB model (Rear Panel View)
Figure 7. TesiraFORTÉ VT4 AVB model (Rear Panel View)
Figure 8. TesiraFORTÉ CI AVB model (Rear Panel View)
Figure 9. TesiraFORTÉ AI AVB model (Rear Panel View)
1. AC power inlet (100 – 240V)
2. Gigabit Ethernet control port (RJ-45)
3. Voice over IP (VoIP) Telephony port
4. Digital Audio Port
AVB port (RJ-45) – AVB models only
-or-
Dante port (RJ-45) – Dante models only
-or-
Not present – Standalone TesiraFORTÉ
5. POTS Analog Telephony port (RJ-11)
6. RS-232 serial port
7. USB-B port
8. GPIO connections
9. Mic/line level balanced output analog
connections.
• AVB VT, DAN VT and VT –
8x Mic/Line
• AVB VT4 and DAN VT4 –
4x Mic/Line
• AVB CI, DAN CI and CI –
8x Mic/Line
• AVB AI, DAN AI and AI –
8x Mic/Line
10. Mic/line level input balanced analog
connections.
• AVB VT, DAN VT and VT –
12x Mic/Line with AEC
• AVB VT4 and DAN VT4 –
4x Mic/Line with AEC
• AVB CI, DAN CI and CI –
12x Mic/Line with AEC
• AVB AI, DAN AI and AI –
8x Mic/Line
10
531
2 4
6
7
8
9
1
2
3
4
5
6
7
8
10
9
1
2 4
6
7
8
10
9
1
2 4
6
7
8
9
10
