7

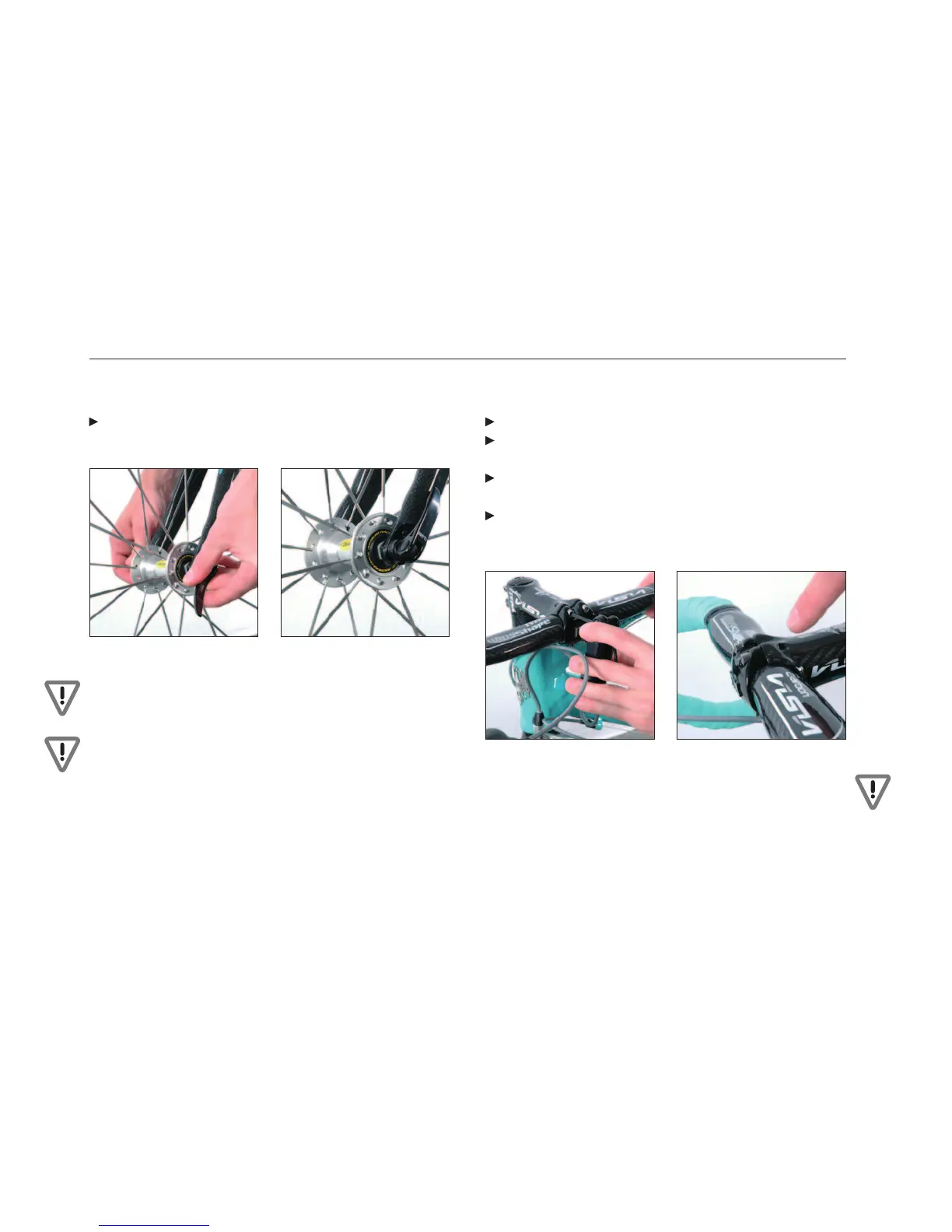

IV. Fixing the front wheel into the fork
Close the quick release skewer by rotating the lever by 180°
(Fig. 10 and 11)
Fig. 10 Fig. 11
Attention: If the quick release skewer is correctly closed, the
word “Close” should be legible on the outside of the lever!
Attention: When tightening the quick release lever (A) it should
meet resistance at about the halfway point. Otherwise you will
have to increase the tension using the acorn nut (B) on the
opposite side of the hub! (c.f. page 2, Fig. 2)
V. Adjusting the handlebars
Use the multifunctional tool supplied.
Select the correct Allen key to loosen the stem locking screws
on the handlebars (Fig. 12)
Once you have adjusted the handlebars to suit your position,
tighten the locking screws on the front cross-wise.
Make the necessary adjustments to your handlebars. Make
sure that the handlebars are centrally aligned in the stem clamp
(Fig. 13)
Fig. 12 Fig. 13
Attention: Make sure that there is an even tightening torque on
all of the stem locking screws. The clearance of the stem clamp
has to be identical, otherwise there is a risk of a serious material
defect on the handlebars!
