2.2.5 Connecting the devices

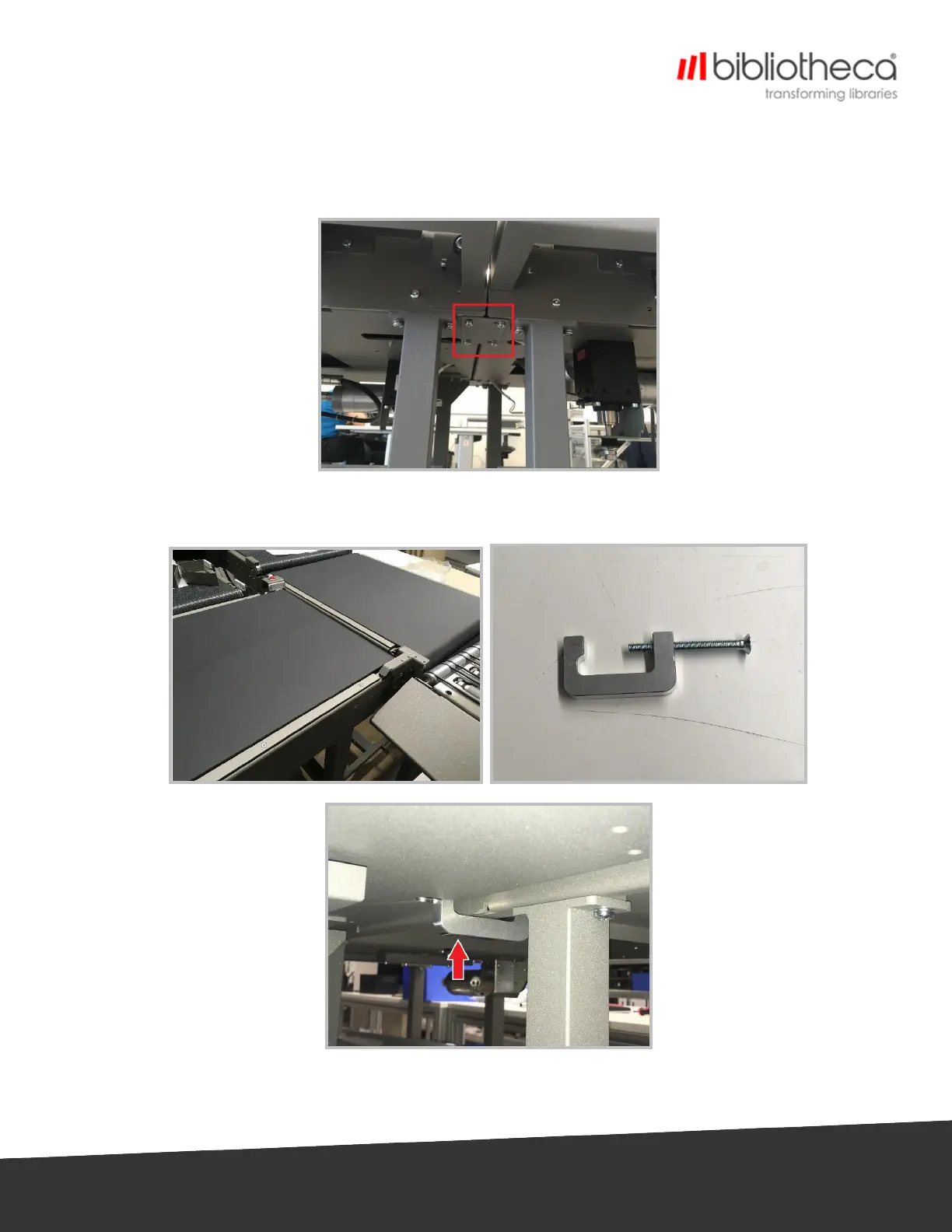

1. Once the system is in place, and each device is aligned and level, secure the devices
together using the fixing plates on the underside of each device,
2. To attach 90° conveyor devices, attach each end of the conveyor bracket (shown below) to
the hole in the middle, underside of the conveyor device.
