User’s Manual UPSI-2401
22
English
User’s Manual UPSI-2401
23
English
5.1 DC Connector: Input and output connection
Type:
FRONT-MC1,5/5-STF-3,81
PIN
1 Earth
2 Input (+)
3 Input (–)
4 Output (–)
5 Output (+)
5.2 Interface 9-pole Sub-D
PIN
1 Battery low output
2 n.c.
3 n.c.
4 Shutdown input
5 Ground
6 n.c.
7 n.c.
8 Power Fail output
9 n.c.
Power Fail (Output)
If AC input fails (below 20 V DC), level decreases to -7 V DC.
If AC input ok, level is at +7 V DC.
Battery Low (Output)
If the battery is low, level decreases to -7 V DC.
If the battery is ok, level is at +7 V DC.
Shutdown (Input)
Signal to switch off the PSU in UPS mode.
The level has to be ≥+7 V DC and has to be connected ≥60 msec. The UPS switches off
after app. 15 sec.
The output voltage corresponds to the connected input
voltage minus app. 0.45 V DC.
The (5-pole) pin-and-socket connector is included in the
delivery of the DC UPS UPSI-2401.

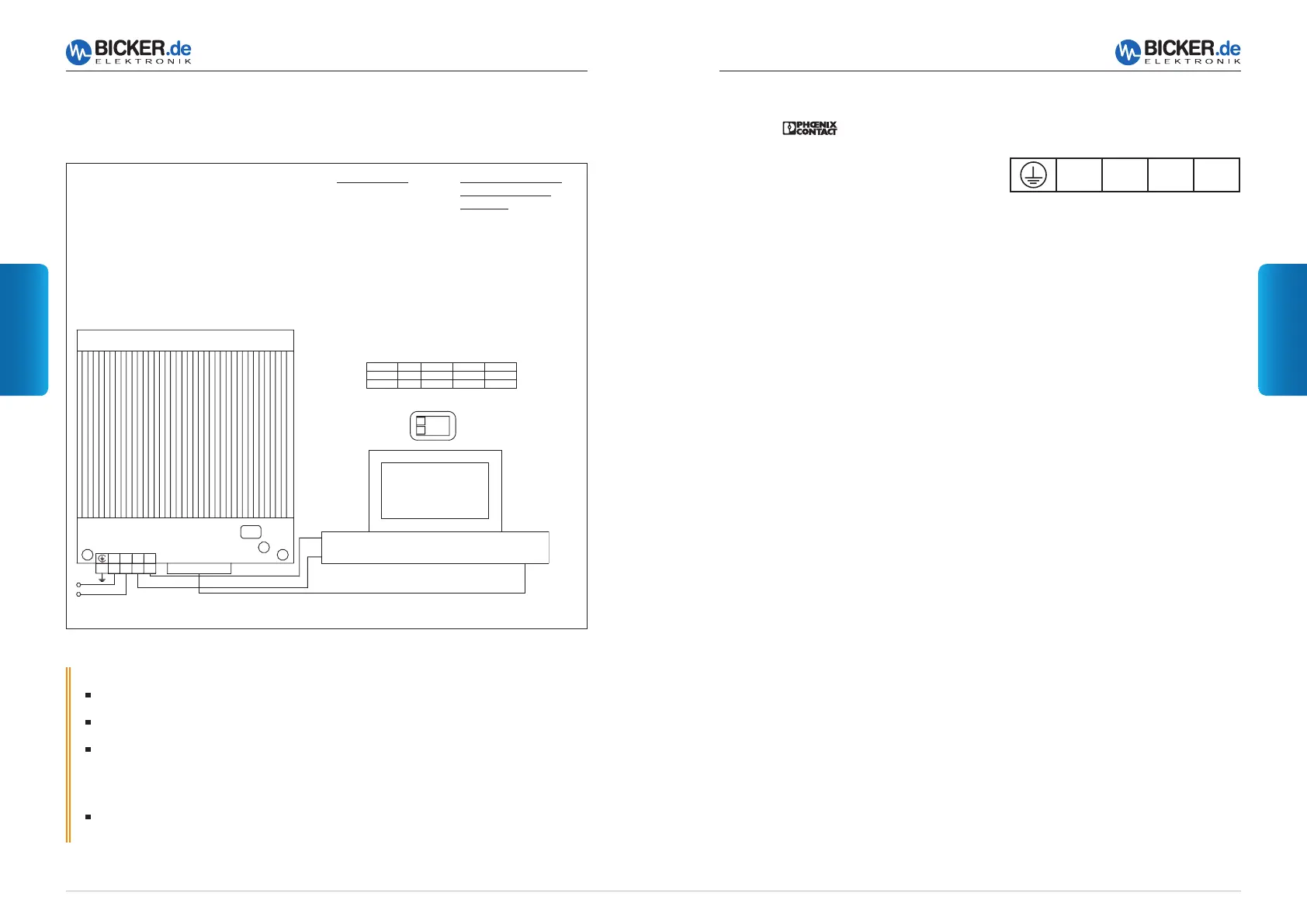

5 Installation and Start up
Connections
No tes
The DC UPS UPSI-2401 must be mounted horizontally.
Ensure there is sufficient convection during operation.
All connector cables must be dimensioned for the input current of the
UPSI-2401 (5.5 A) and an according additional protection must be provided and
fused. The recommended cross section for the connector cables is 1 mm
2
.
Before switching on the unit, make sure all connections are correct.
Both fuses (7.5 A) must be engaged.
1 3 52 4
IN IN
OUTOUT
D-SUB
DC connector 1
LED
DIP
COM
PC System
IN +
GND
OUT +
GND
DIP
offS1
S2
off on
off
2 min. 6 min. 20 min.
off
on
on on
Timer
off
Timer function
2
1 O
N
IN
+
IN
–
OUT
–
OUT
+
DC connector 1
1 Earth
2 Input (+)
3 Input (–)
4 Output (–)
5 Output (+)
Interface connector 2:
DSUB9 Interface für
RUPS2000
1 Battery low output
2 n.c.
3 n.c.
4 Shutdown input
5 Earth
6 n.c.
7 n.c.
8 Power Fail output
9 n.c.
