EX200 Electro-Hydraulic Actuator Positioner
Bifold Orange Limited.
Drwg. No.: ORM0001 Issue : 1 Date : 24/06/2015 Page : 16 of 20

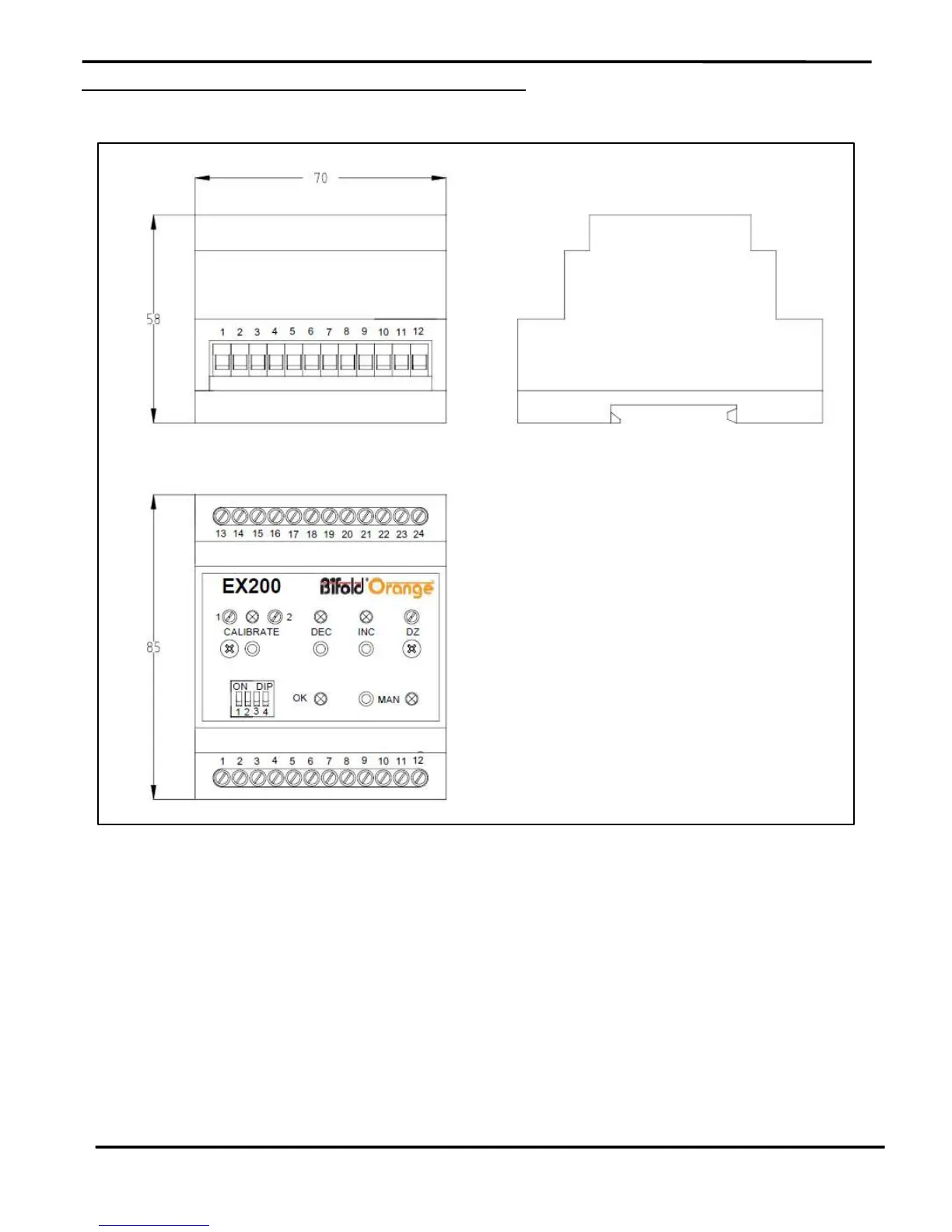

EX200 in Din Rail Mount Enclosure Dimensions and Front Panel
Size – 70mm wide, 58mm high, 85mm deep
Weight – 0.25kg
Enclosure – Lexan (Top cover), Noryl (Base section)
Equipment rating – IP40
The EX200 in the din rail mount enclosure can be fitted on Standard Symmetric EN50054 component mounting rail – 35 x
7.5. Use a purpose-designed tool for adjusting small potentiometers on the front panel.
