EX200 Electro-Hydraulic Actuator Positioner
Bifold Orange Limited.
Drwg. No.: ORM0001 Issue : 1 Date : 24/06/2015 Page : 5 of 20
EX200 Positioner set-up
The EX200 comes with two communication options selected within the part number system, Standard and the Hart
Protocol. Setup of instrument functions differs for this communication selection. See below for position of jumper links
required for EX200 set-up.

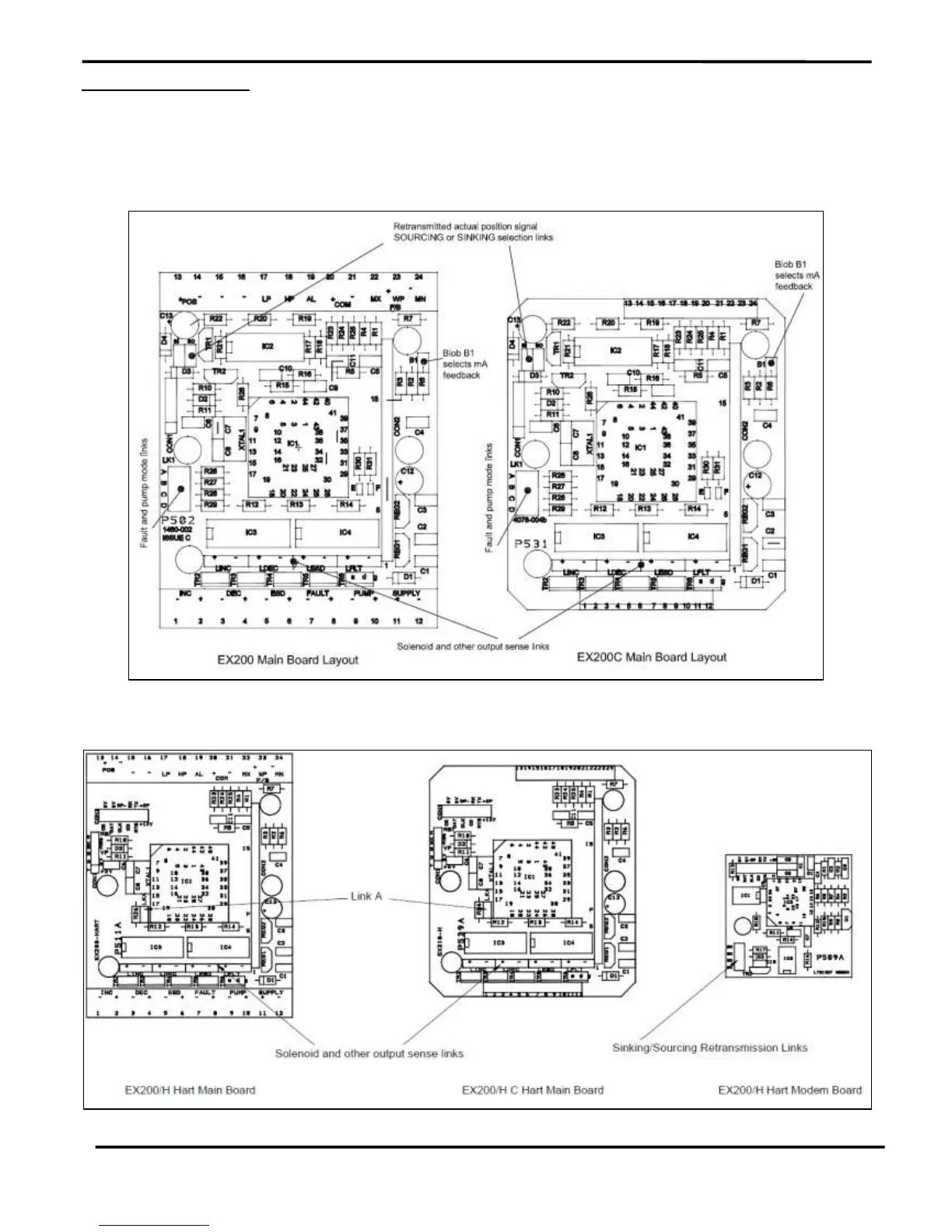

Figure 1 - EX200 “Standard” Jumper Link Options
Figure 2 – EX200 “Hart” Jumper Link Options
