11. Re-install the rear wheels. Torque lug nuts to 70 ft-lbs
(95 N•m).
12. Raise the rear of the mower and remove the jack
stands. Lower the mower.
13. Re-attach the negative battery cable.
14. Close the seat platform.

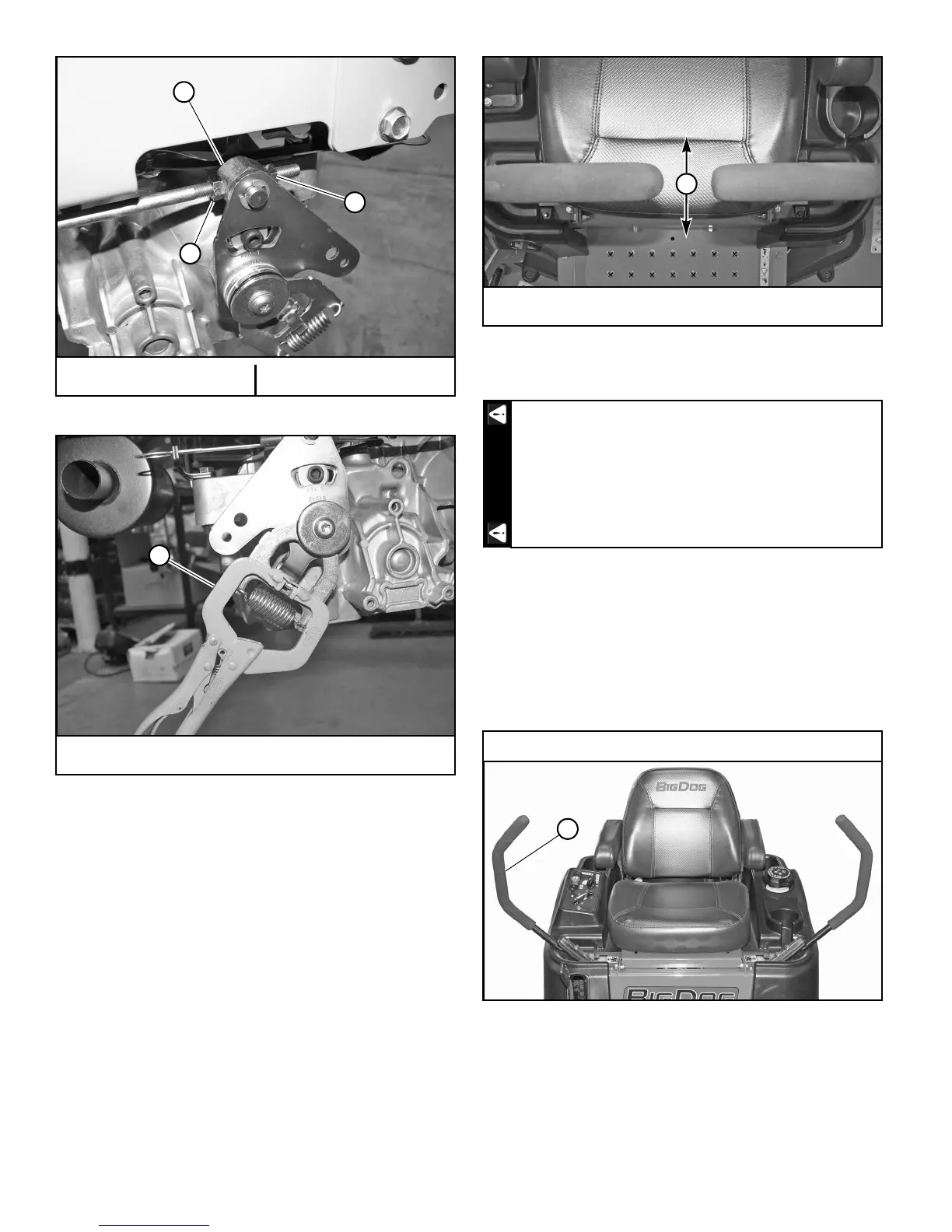

Control lever stops adjustment
The steering control lever stops may be adjusted to help
drive straight when the steering control levers are pushed
forward against the stops.
1. Raise the rear of the mower and block with certified
jack stands.
2. Chock the front tires.
3. Make sure both steering control levers are in the park
brake position. Figure 4-5
4. Raise the seat platform and disconnect the mower har-
ness from the seat switch. Bypass the seat switch by
A. Bushing B. Nuts
Figure 4-2
A. Clamp
Figure 4-3
A. Align handles ± .125"
Figure 4-4
Keep hands, hair, clothing, etc., clear of the rotat-
ing drive wheels/hubs during this process. Exer-
cise extreme caution.
Steering control levers in park brake position
Figure 4-5
