10. Raise the front of the mower and remove the jack
stands.
11. Lower the mower.
12. Re-attach the negative battery cable.
Deck Belt
Inspect belts frequently for wear and serviceability.
Replace a belt that shows signs of:
• severe cuts
• tears
• separation
• weather checking
• cracking
• burns caused by slipping.
Slight raveling of belt covering does not indicate failure,
trim ravelings with a sharp knife.
Inspect the belt pulley grooves and flanges for wear. A new
belt, or one in good condition, should never run against the
bottom of the groove. Replace the pulley when this is the
case, otherwise, the belt will lose power and slip excessively.
Never pry a belt to get it on a pulley as this will cut or dam-
age the fibers of the belt covering.
Keep oil and grease away from belts, and never use belt
dressings. Any of these will destroy the belt composition in a
very short time.
Deck belt adjustment
The spindle belt tension remains constant by means of a
tension idler and spring. There is no tension adjustment of
this belt. Figure 6-17 & Figure 6-18

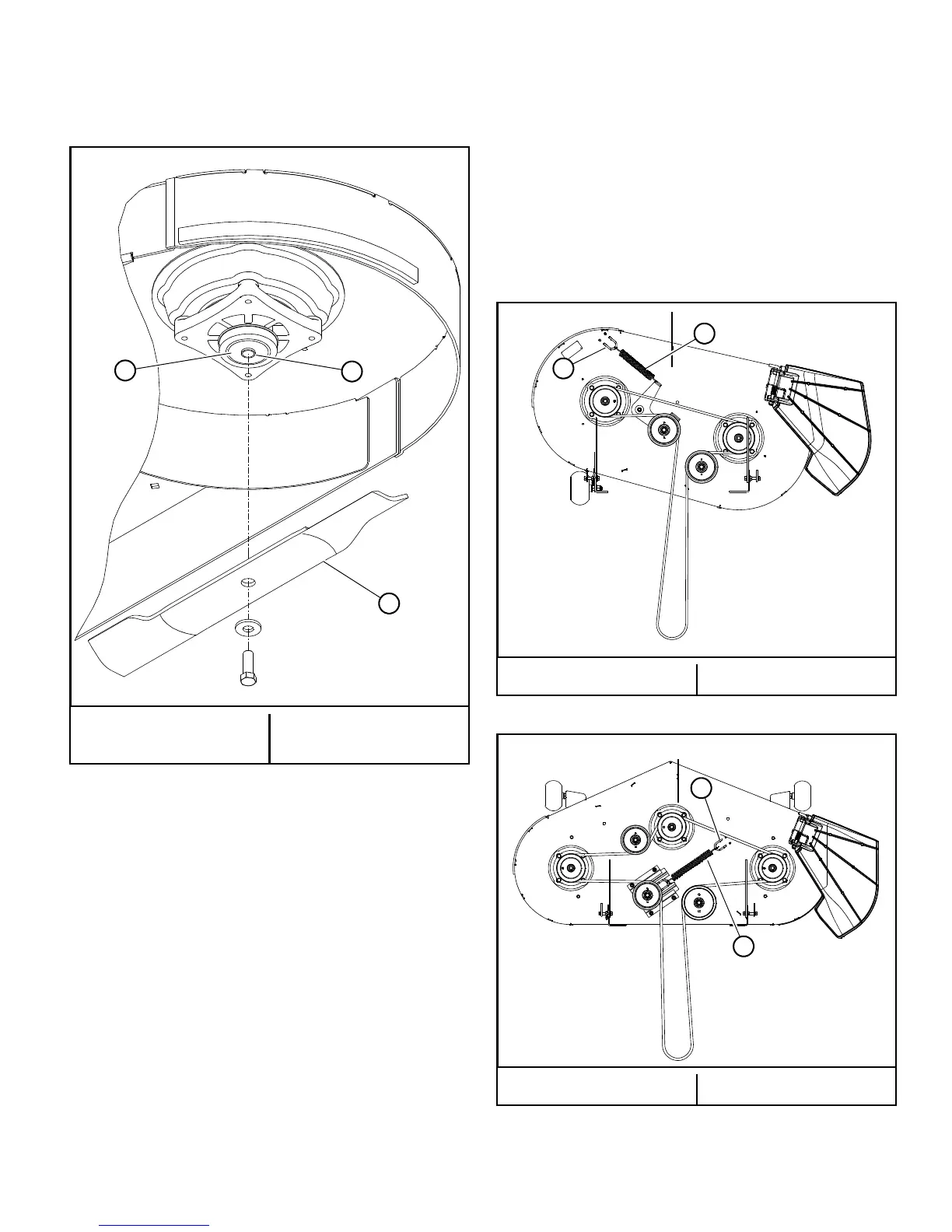

A. Spindle shaft face
B. Boss
C. Blade
Figure 6-16
A. Spring mount B. Tension idler spring
Figure 6-17
A. Spring mount B. Tension idler spring
Figure 6-18
