13

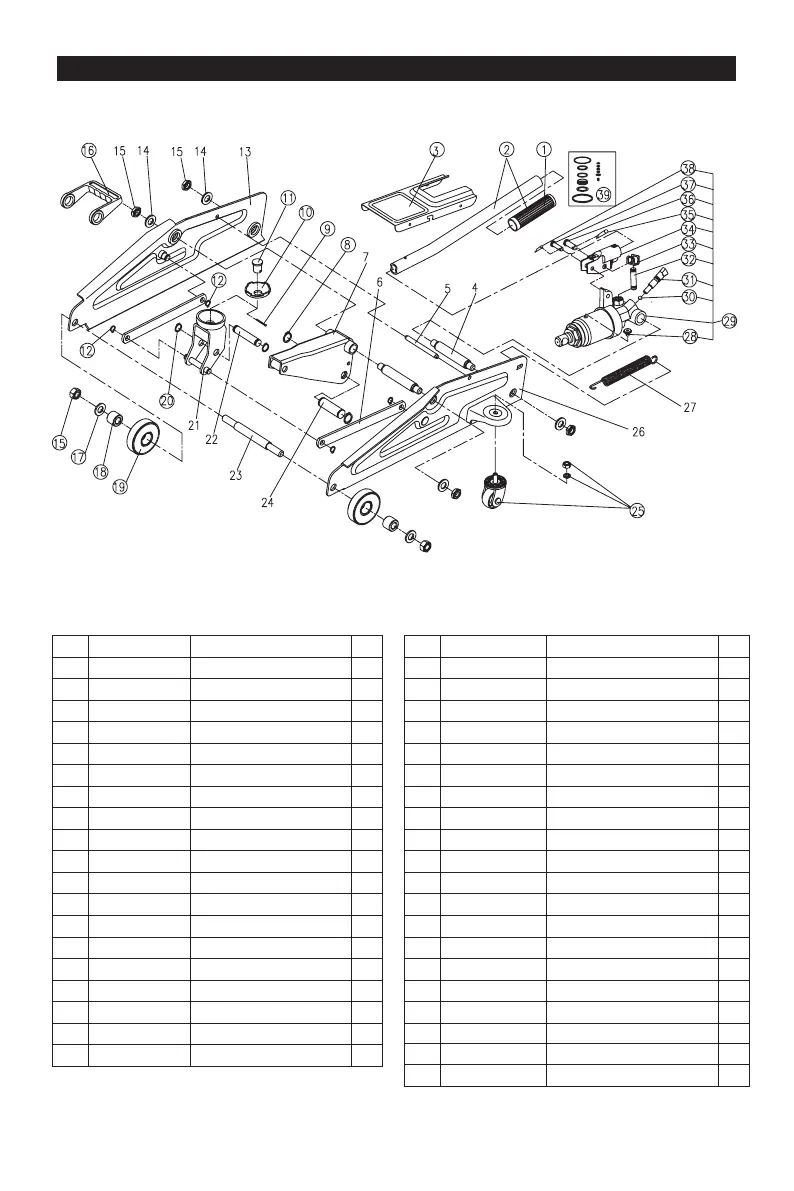

ASSEMBLY DIAGRAM
REF# PART# DESCRIPTION QTY
1 QLQD2A.1-1 Handle cover 1
2 T820033.1(asm) Handle 1
3 T820033-2 Cover plate 1
4 Back shaft 2
5 Pin for frame 1
6 Connecting bar 2
7 Lifting arm assembly 1
8 GB894.1-16 C-clip Ø16mm 2
9 GB91-2X20 Cotter pin Ø2x20mm 1
10 T82000Y.3-1 Saddle 1
11 QLQD2C.5-2a Saddle pin 1
12 GB894.1-10 C-clip Ø10mm 4
13 Right frame assembly 1
14 Washer M12 4
15 GB6170-M12 Nut M12 6
16 T820033-6 Carry handle 1
17 GB97.1-12 Washer M12 2
18 T820013-7 Sleeve for front wheel 2
19 T820013D-2 Front wheel 2
REF# PART# DESCRIPTION QTY
20 GB894.1-13 C-clip Ø13mm 2
21 Saddle base assembly 1
22 Pin for saddle base 1
23 Shaft for front wheel 1
24 Pin for lifting arm 1
25 T820033XE.2(asm) Rear caster assembly 2
26 Left frame assembly 1
27 Return spring 1
28 TF1201C-29 Oil plug 1
29 T820033.2 Power unit assembly 1
30 GB308-6 Steel ball bearing Ø6mm 1
31 T83003.2-10(asm) Release valve assembly 1
32 QLQD2A.2-5(asm) Pump plunger assembly 1
33 QLQD2A.2-7b U-Bracket for plunger 1
34 QLQD2A.2-8b Handle socket 1
35 QLQD2B-3 Roundwire snap ring Ø1.4x26mm 1
36 QLQD2A.2-19 Pin for pump plunger 1
37 QLQD2A.2-20 Pin for handle socket 1
38 QLQD2B.2-5 Roundwire snap ring Ø1.2x20mm 1
39 T820033.MF Seal kit 1
