1.4.10. Steering rollers
The steering rollers are designed to guide the container. During handling roll
on – roll off the container frame must be inside the rollers.

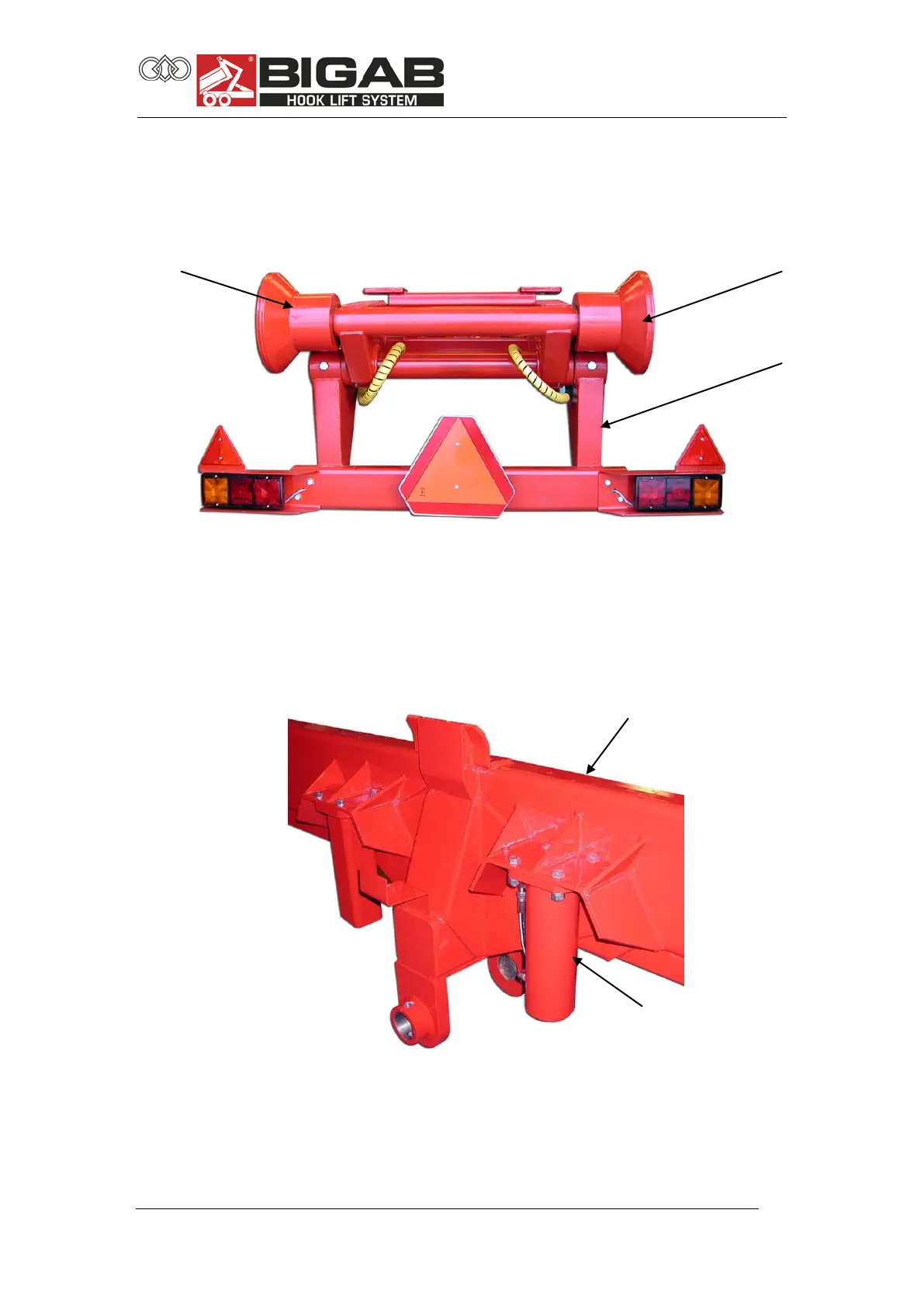

Figure 12. Steering rollers
1.4.11. Bogie block
The hydraulic bogie block is used for bogie blocking during the handling of
roll on – roll off.
Figure 13. Bogie block
Pin
Chassis
Bogie block hydraulical
cylinder
Steering
roller
Steering roller
Chassis
