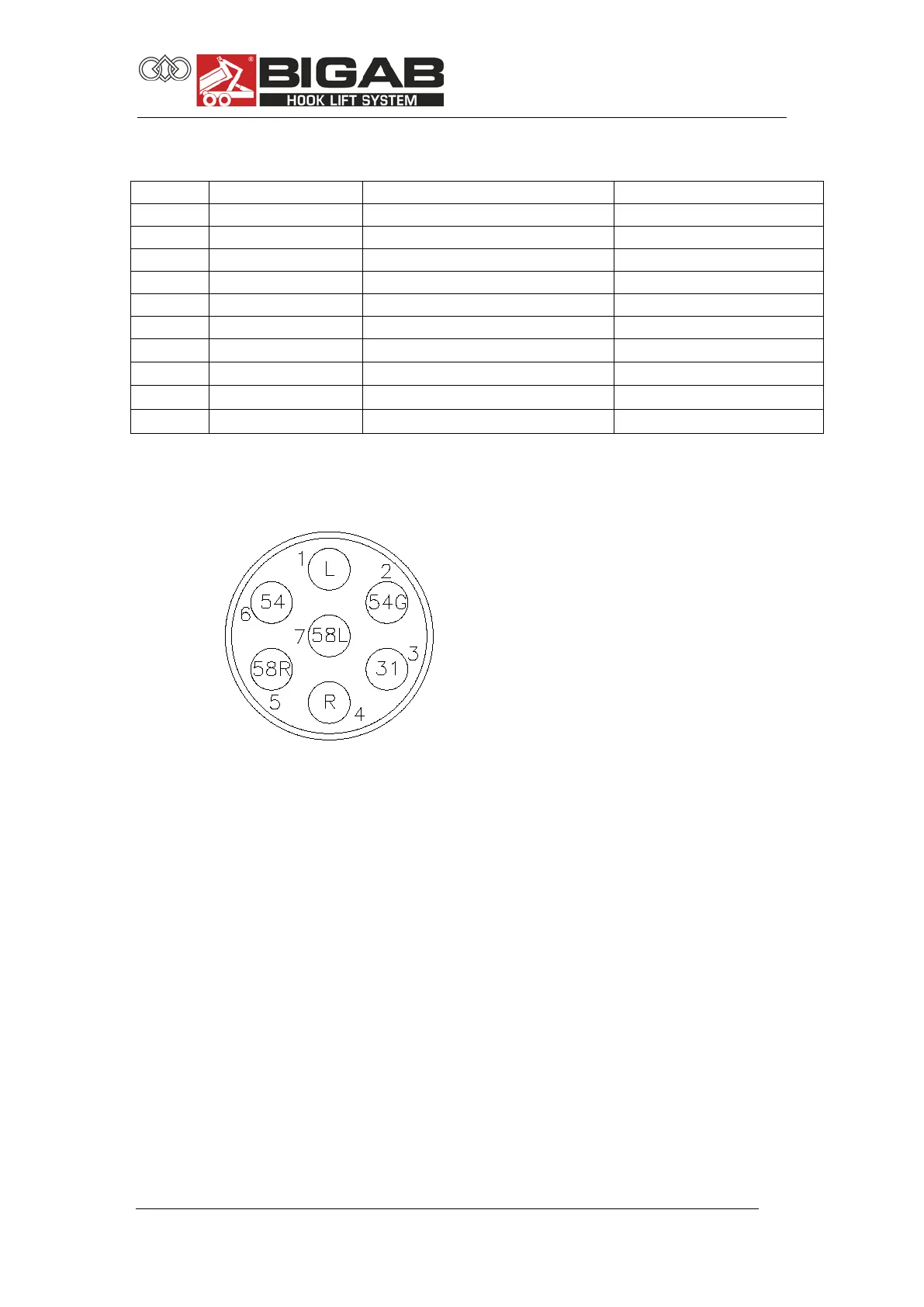

Connections of the cables and lamps.
Table 6.
Nr.
Color
Function
Lamp
1
Red
Flashing left
12V-21W (L1)
2
Brown
Reversing light
12V-21W (L5)
2
Brown
Spare (without reversing light)
3
Yellow
Earth
4
Blue
Flashing right
12V-21W (L1)
5
Grey
Rear right
12V-21W (L2)
5
Brown
Side marking
12V-5W (L4)
6
Black
Brake light
12V-10W (L3)
7
Green
Rear left
12V-21W (L2)
7
Brown
Side marking
12V-5W (L4)
