3.6.2. Frame lock hydraulic system

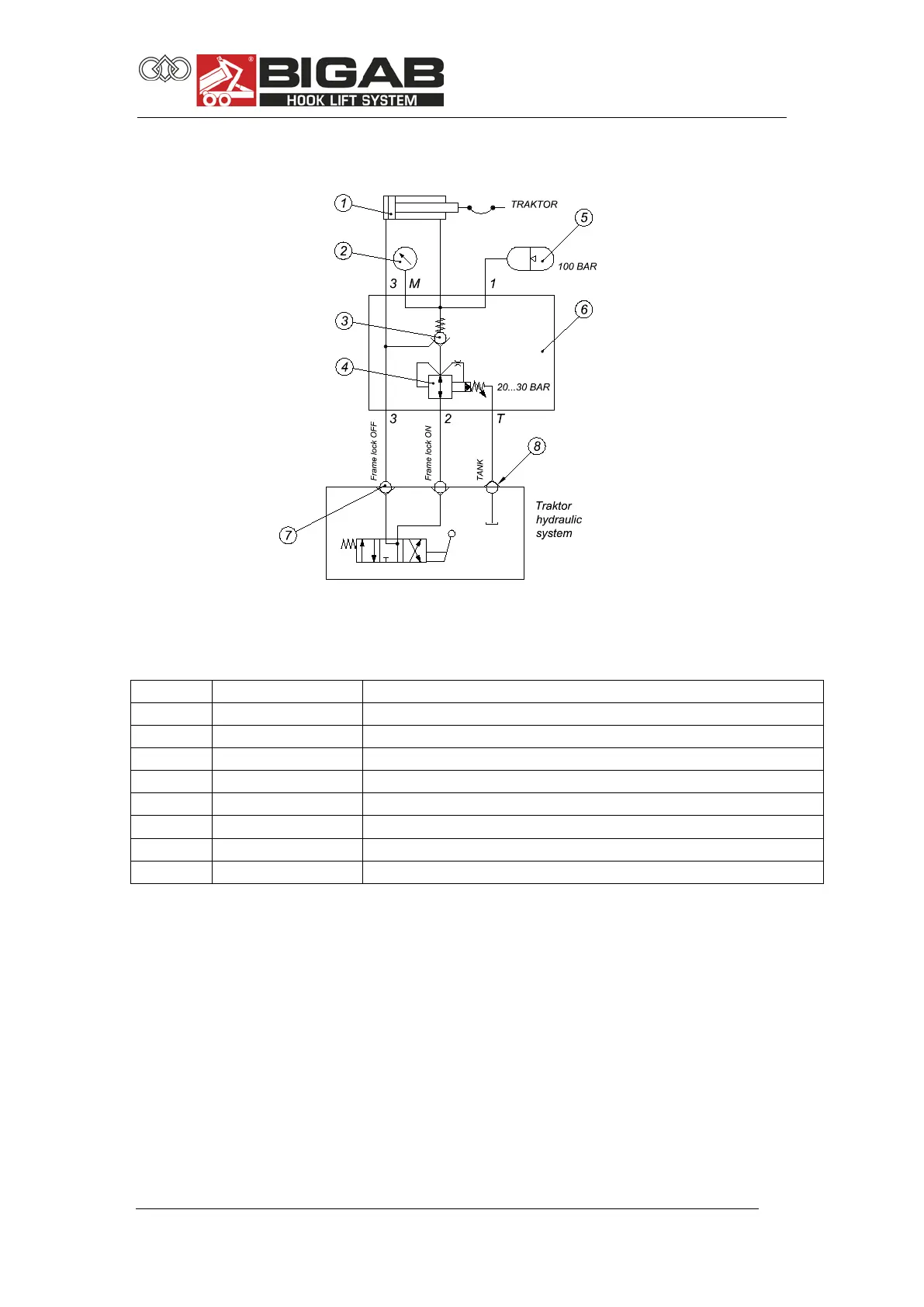

Figure 36. Frame lock hydraulic system.
Hydraulic components for frame lock
Table 8.
Pos.
Art. No.
Title
1 313134 Cylinder 90/40-300
2
915275
Manometer
3
915271
Pilot operated check valve
4
915266
Pressure reducing/relieving valve
5
915280
Hydro-pneumatic accumulator
6
915265
Manifold
7
914570
Bayonet coupling male
8
9145702
Bayonet coupling female
