5.2.8. Lubrication
Recommended lubrication cycle is once per week or after 20 working hours.
Lubricate points equipped with grease nipples by using a grease gun. See chapter 5.1
for recommended lubricants.
• Ensure regularity of lubrication by following the lubricating schedule.
• Keep flammable material away from heat, sparks and open fire.
• Do not let oil run into the nature. Oil spilled into ground pollutes environment.

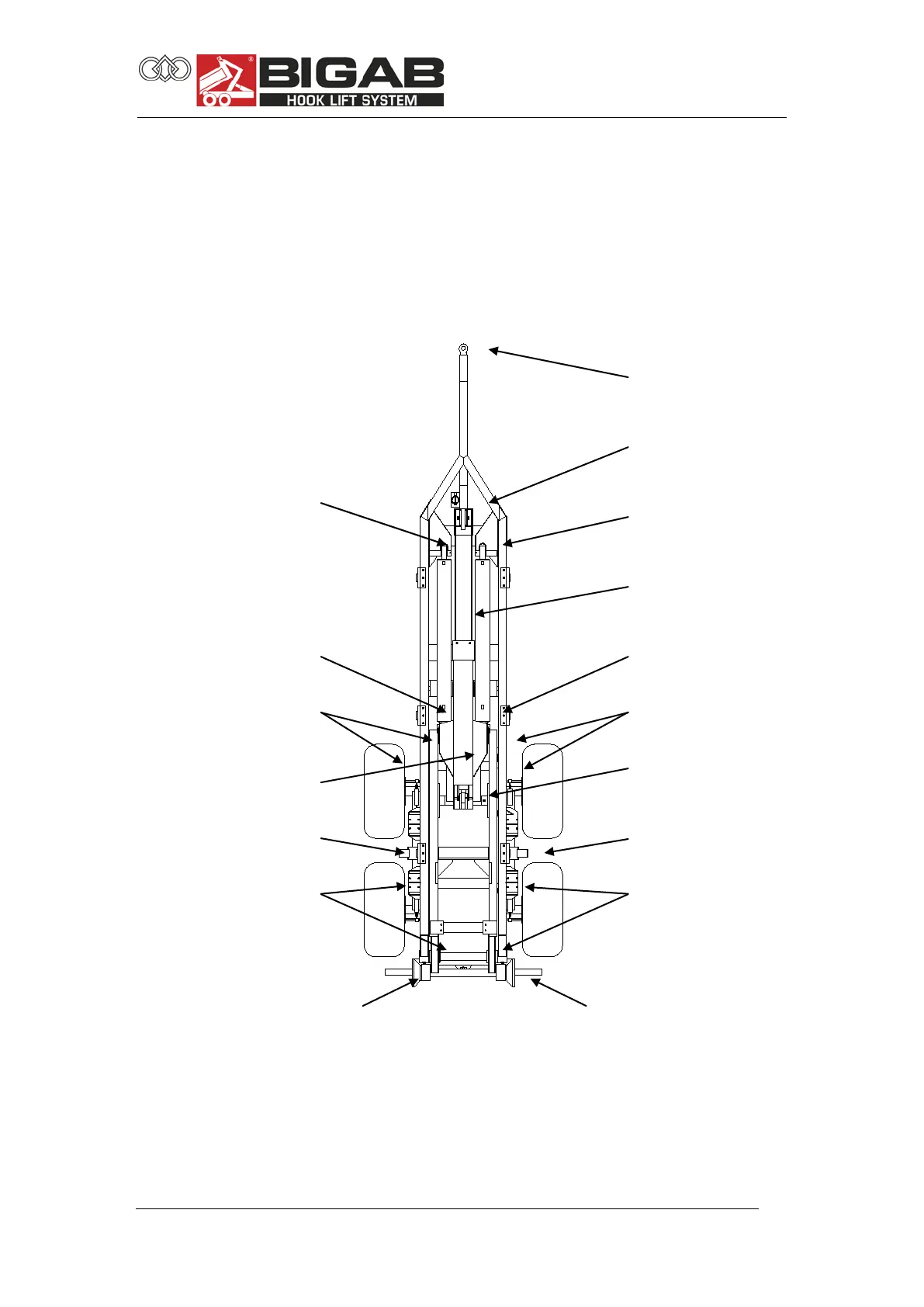

Figure 39. Lubrication points
Towing eyelet
Link bearing; 1pcs
Link bearing right; 1pcs
Glide bearing right; 2pcs
Glide bearing right; 1pcs
Glide bearing right; 2pcs
Glide bearing left; 2pcs
Glide bearing left; 2pcs
Glide bearing left; 1pcs
Link bearing left; 1pcs
Link bearing; 1pcs
Glide bearing
Link bearing right; 1pcs
Link bearing left; 1pcs
Glide bearing left; 2pcs
Glide bearing right; 2pcs
Glide bearing bottom;
1pcs
