5.3.8. Cylinder description
1
2
12
8
7
9 11
4 10
15 14 3 516
6
13
17

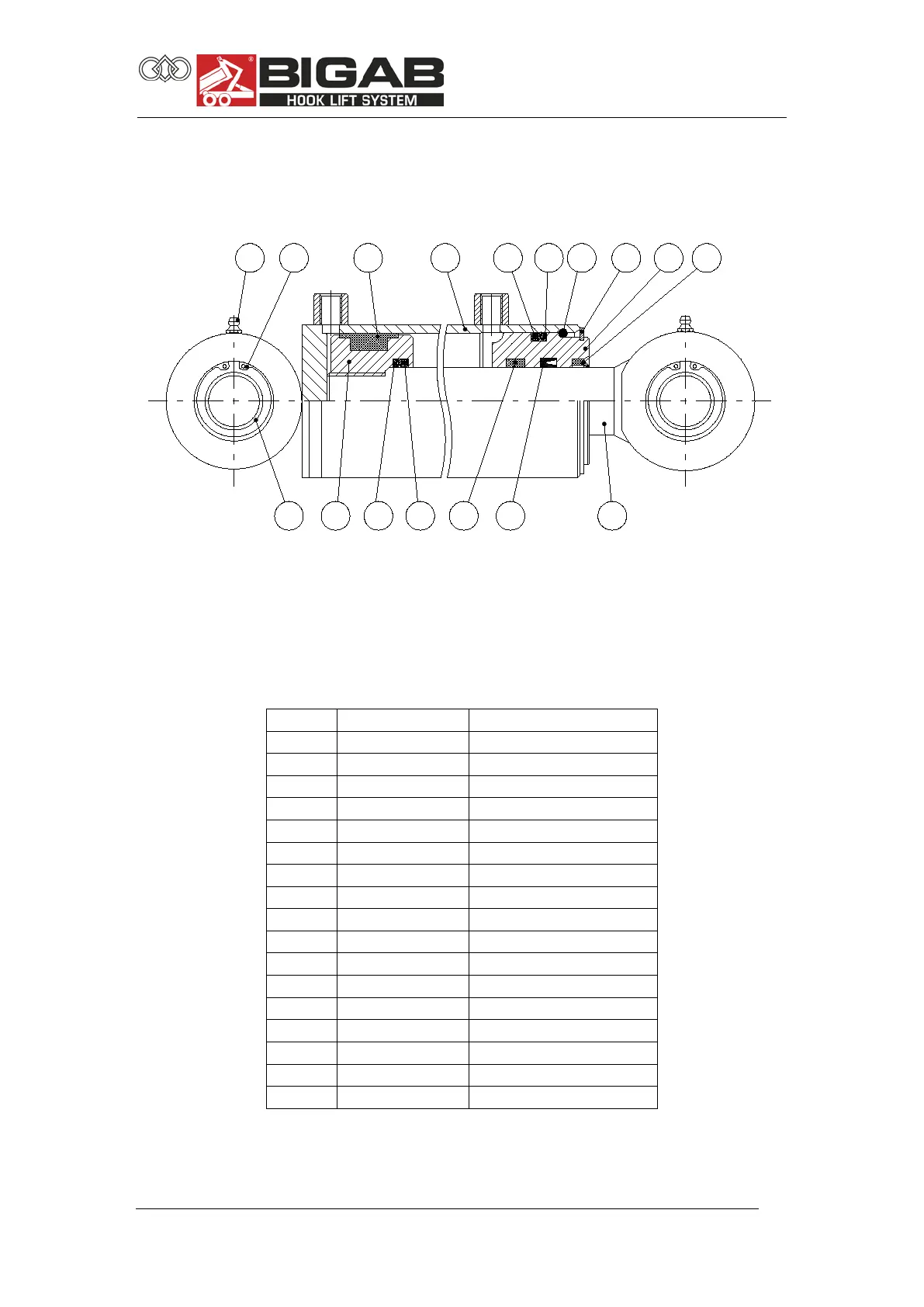

Figure 46.Cylinder description
Table 17.
Pos.
Description
Note
1
Piston rod
Spec. order
2
Tube assy
Spec. order
3
Front bush
4
Piston
5
Scrape ring
Included in sealing kit
6
Sealing
Included in sealing kit
7
Bush
Included in sealing kit
8
Sealing
Included in sealing kit
9
O-ring
Included in sealing kit
10
O-ring
Included in sealing kit
11
Sealing
Included in sealing kit
12
Sealing
Included in sealing kit
13
Locking ring
14
Locking ring
Included in sealing kit
15
Locking ring
Included in sealing kit
16
Grease nipple
17
Spherical ring
