I. Mechanics BigRep
.

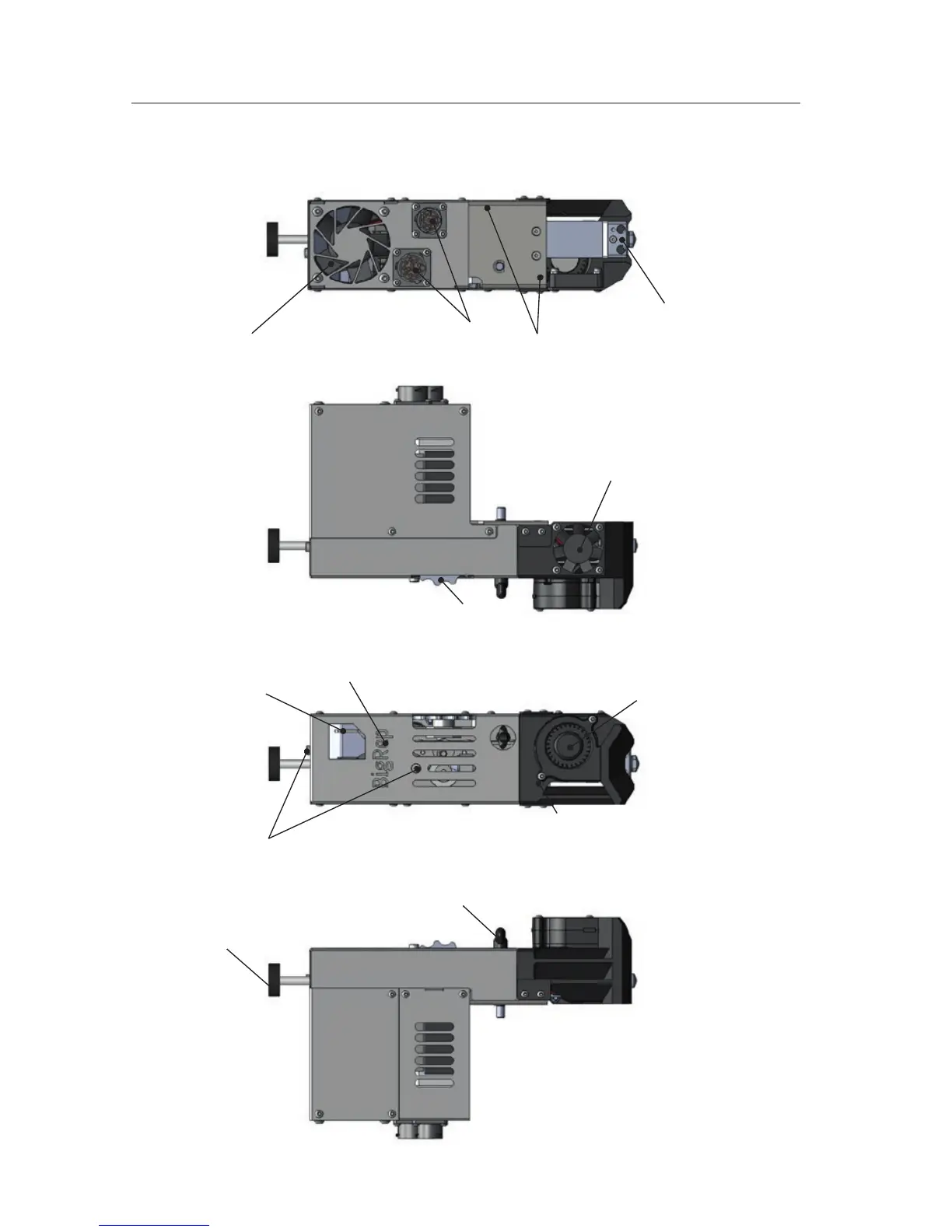

Front RightLeft Back
Filament cleaning sponge (filament must be fed through this when loading new filament)
2x Screws to
remove
Front Cover
Lever to release idler wheel spring. Push to the right to load / unload filament
Knob for extruder attachment screw
Main cooling
fan (always on)
Hot-end cooling fan (always on)
Filament cooling fan (turned on/off by software during print)
Nozzle heater
(HOT, do not touch!)
2x Electrical
connectors
(different sizes)
Hole + Slot
(aligns to printer when
installing extruder)
BigRep Logo (lights up when extruder is connected)
Idler wheel spring
adjustment
Access hole for screw
to remove hot-end
Extruder Features
I-E 2/6
