BIGREP ONE GENERATION 3 - Page 14

I. Mechanics BigRep
X-Stage

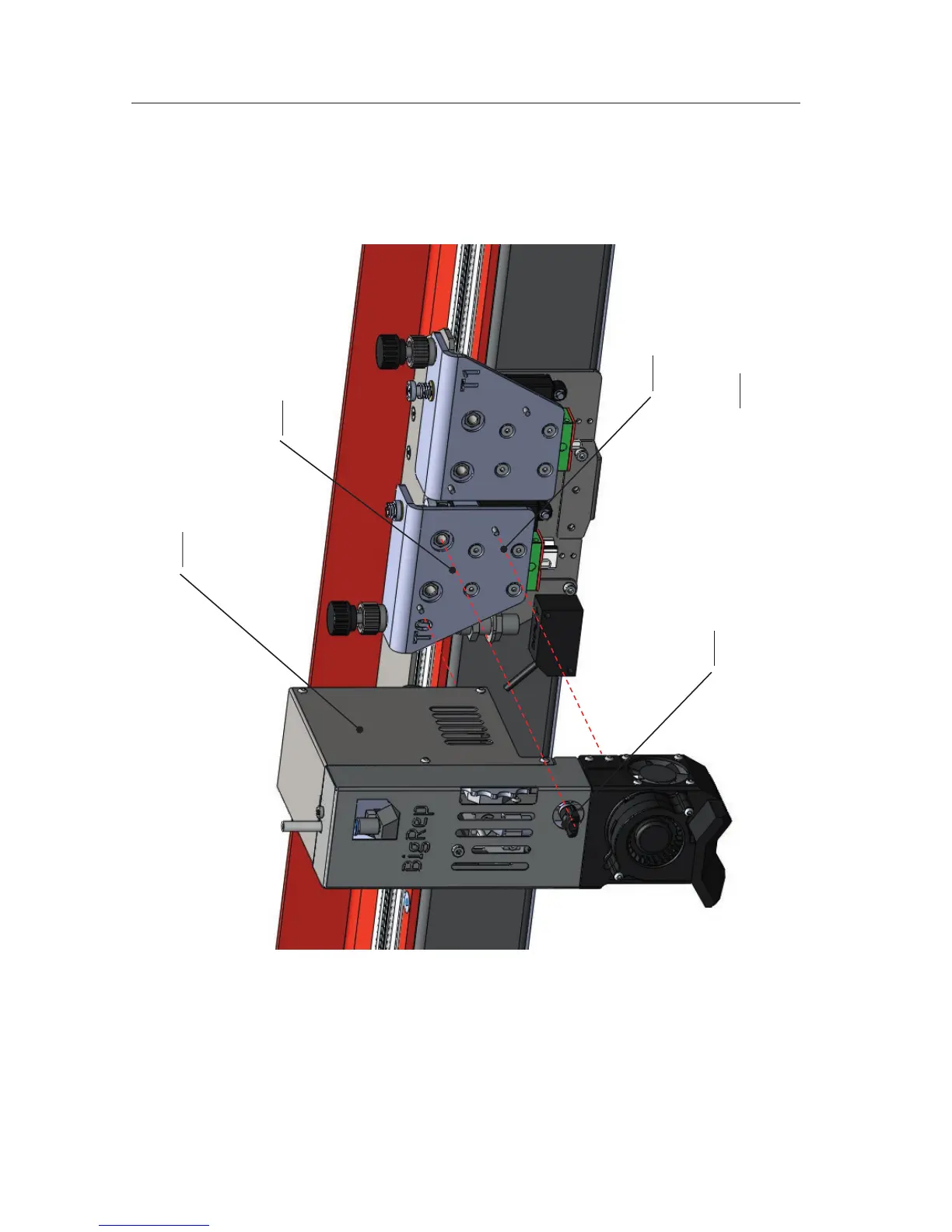

Mounting the extruder
Step 1: Extruder slides straight back onto X-Stage mount
Step 2: First engagement is with the attachment screw. User begins screwing it in by hand to pull extruder back
Step 3: Pins line up with extruder hole / slot
Step 4: User hand tightens attachment screw to secure extruder
Step 5:
User makes 2x electrical connections on back of extruder
I-E 3/6
