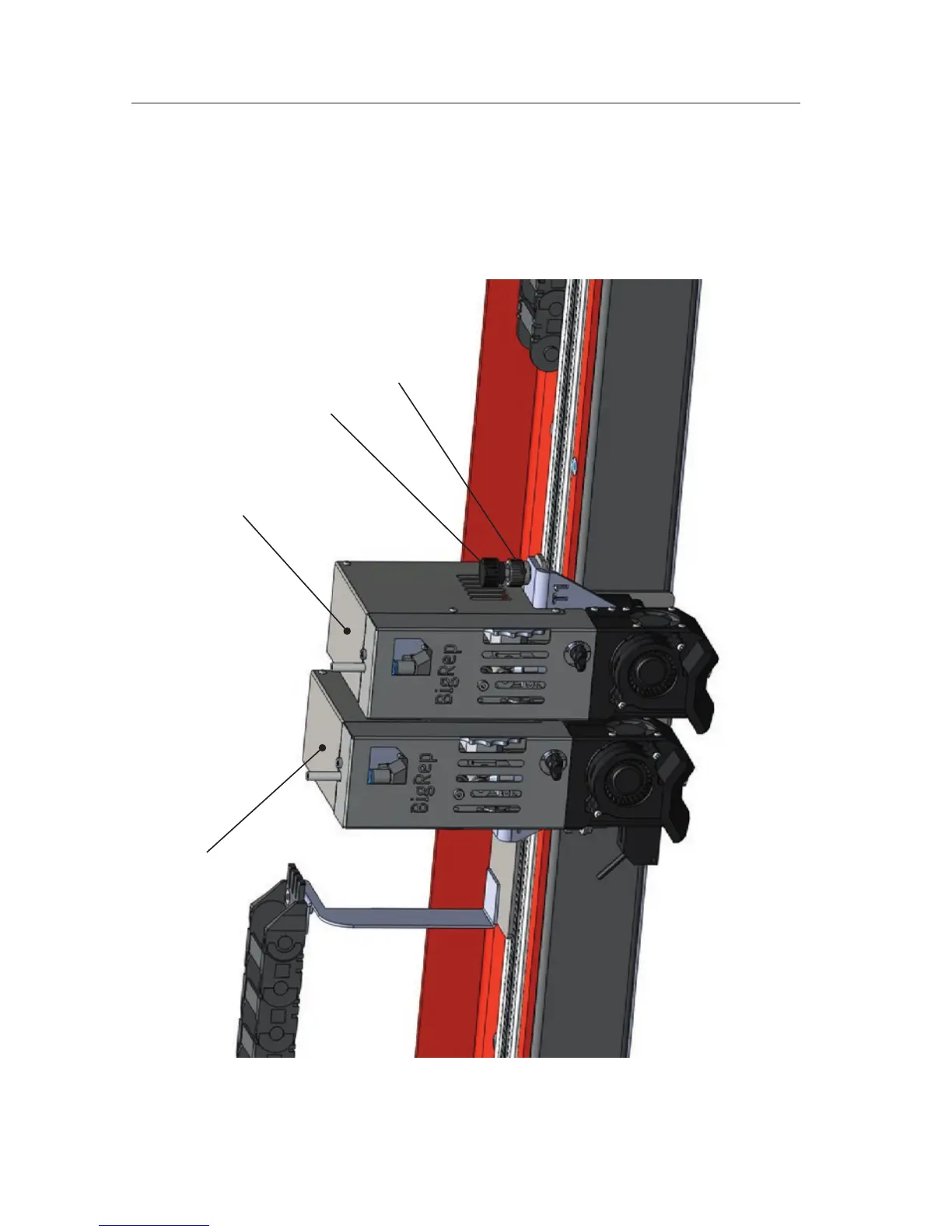

T1 extruder shown in “down /
lowered / active / printing” position
T0 extruder shown in “up /
lifted / standby” position
Adjustment knob to adjust height of extruder &
printing nozzle. Note: This adjustment must be
done when extruder is in the “down” position
Locking nut, used to lock the rotation of the
adjustment knob after the nozzle height is set
I-E 4/6
