II. Electric BigRep
II-B Control Unit
* 2016-04-20

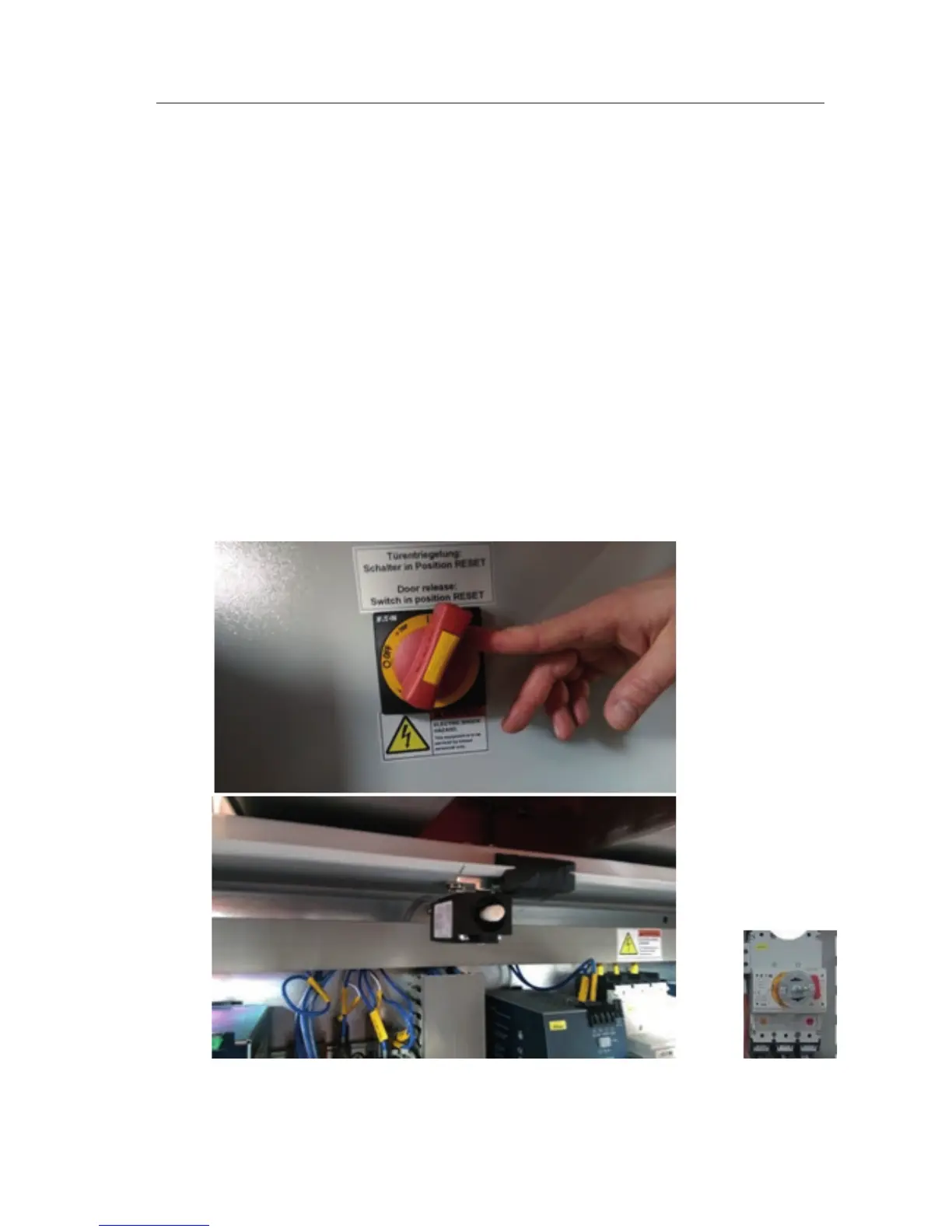

Control Unit is preassembled, directly connected at the back of the printer.
To open the control unit the operator has to use the key (delivered with the ma-
chine) + has to turn the main switch to the le position (next to “o”)
The control unit has to be closed at any time during the machine is running. Cus-
tomers are never allowed to open the control unit.
Due to security reasons the machine cannot be switched on when the control
unit is open.
In case maintenance is needed, BigRep Service Sta is allowed to open the con-
trol unit and switch the machine on. In order to do so you have to tape the securi-
ty switch at the top of the control unit.
II-B 1/7
