II. Electric BigRep

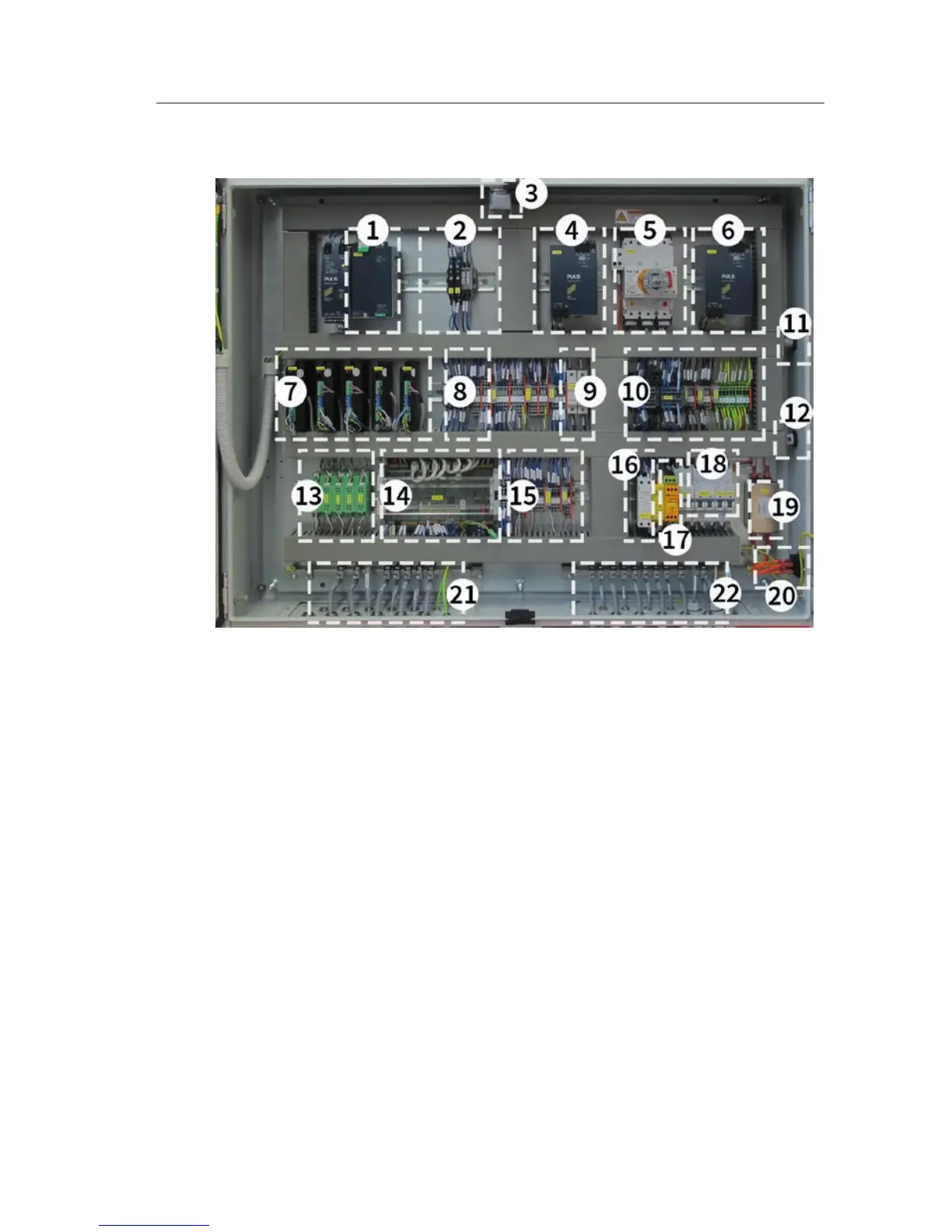

Overview of components
1. UPS
(
*
)
12. USB panel jack
2. Time relay 13. Inductor box
3. Door position switch 14. Boogieboard
4. Power supply 24V 15. Optocoupler filament sensor
5. Mainswitch incl lock 16. Relay bed
6. Power supply 48V 17. Emergency stop (+bumpers)
7. Motor end stage 18. Automatic fuse
8. Fuse motor end stage 19. EMC filter
9. Fuse power supply 20. Voltage supply
10. Auxiliary relay 21.
Grounding terminal + cable bushing
power
11. RJ45 panel jack 22. Grounding terminal + c.b. signal
(
*
)
The uninterruptable power supply (UPS) fuse must be removed prior to any transport.
II-B 2/7
